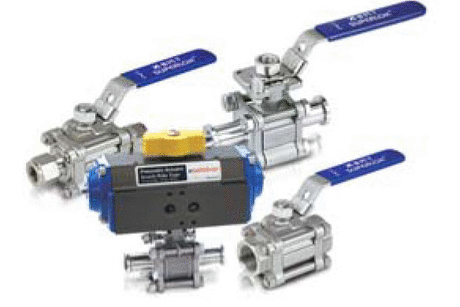

SWB Swing Out Ball Valves

	Item #	Item Name
	SWB2303-F-16N SWB 1 in. Female National Pipe Taper (FNPT) Thread, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 1 in. Female National Pipe Taper (FNPT) Thread, 2200 psi Pressure Rating Swing-Out Ball Valve
	SWB3201-S-4 SWB 1/4 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 1/4 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve
	SWB3201-S-6 SWB 3/8 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 3/8 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve
	SWB3202-F-8N SWB 1/2 in. Female National Pipe Taper (FNPT) Thread, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 1/2 in. Female National Pipe Taper (FNPT) Thread, 2200 psi Pressure Rating Swing-Out Ball Valve
	SWB3202-S-8 SWB 1/2 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 1/2 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve
	SWB3202-S-8-OH SWB 1/2 in. Tube Outside Diameter D, Oval Handle, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 1/2 in. Tube Outside Diameter D, Oval Handle, 2200 psi Pressure Rating Swing-Out Ball Valve
	SWB3202-S-8-UP SWB 1/2 in. Tube Outside Diameter D, UHMWPE Seats, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 1/2 in. Tube Outside Diameter D, UHMWPE Seats, 2200 psi Pressure Rating Swing-Out Ball Valve
	SWB3202-S-12 SWB 3/4 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 3/4 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve
	SWB3202-S-12-OH SWB 3/4 in. Tube Outside Diameter D, Oval Handle, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 3/4 in. Tube Outside Diameter D, Oval Handle, 2200 psi Pressure Rating Swing-Out Ball Valve
	SWB3202-S-12-UP SWB 3/4 in. Tube Outside Diameter D, UHMWPE Seats, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 3/4 in. Tube Outside Diameter D, UHMWPE Seats, 2200 psi Pressure Rating Swing-Out Ball Valve
	SWB3203-S-16 SWB 1 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 1 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve
	SWB3203-S-16-OH SWB 1 in. Tube Outside Diameter D, Oval Handle, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 1 in. Tube Outside Diameter D, Oval Handle, 2200 psi Pressure Rating Swing-Out Ball Valve

side-scroll to see full table

Information

Part#	SWB2303-F-16N	SWB3201-S-4	SWB3201-S-6	SWB3202-F-8N	SWB3202-S-8	SWB3202-S-8-OH	SWB3202-S-8-UP	SWB3202-S-12	SWB3202-S-12-OH	SWB3202-S-12-UP	SWB3203-S-16	SWB3203-S-16
Type	Ball Valve	Ball Valve	Ball Valve	Ball Valve	Ball Valve	Ball Valve	Ball Valve	Ball Valve	Ball Valve	Ball Valve	Ball Valve	Ball Valve
Part Number	SWB2303-F-16N	SWB3201-S-4	SWB3201-S-6	SWB3202-F-8N	SWB3202-S-8	SWB3202-S-8-OH	SWB3202-S-8-UP	SWB3202-S-12	SWB3202-S-12-OH	SWB3202-S-12-UP	SWB3203-S-16	SWB3203-S-16
Dimensions
Dimension A	79.0mm	47.7mm	47.7mm	64.8mm	64.8mm	64.8mm	64.8mm	64.8mm	64.8mm	64.8mm	79.0mm	79.0mm
Dimension B	62.0mm	33.0mm	33.0mm	44.5mm	44.5mm	44.5mm	44.5mm	44.5mm	44.5mm	44.5mm	62.0mm	62.0mm
Dimension C	92.0mm	80.8mm	80.8mm	68.9mm	103.8mm	103.8mm	103.8mm	103.8mm	103.8mm	103.8mm	136.7mm	136.7mm
Dimension D	46.0mm	40.40mm	40.40mm	34.45mm	51.90mm	51.90mm	51.90mm	51.90mm	51.90mm	51.90mm	68.35mm	68.35mm
Dimension E	31.0mm	16.75mm	16.75mm	22.25mm	22.25mm	22.25mm	22.25mm	22.25mm	22.25mm	22.25mm	31.0mm	31.0mm
Dimension F	61.9mm	38.8mm	38.8mm	4.22mm	44.2mm	44.2mm	44.2mm	44.2mm	44.2mm	44.2mm	61.9mm	61.9mm
Dimension H	149.4mm	57.2mm	57.2mm	111.0mm	111.0mm	111.0mm	111.0mm	111.0mm	111.0mm	111.0mm	149.4mm	149.4mm
End Size	1in	44200in	44263in	44198in	44198in	44198in	44198in	44259in	44259in	44259in	1in	1in
Orifice	0.875in 22.2mm	0.188in 4.8mm	0.281in 7.1mm	0.516in 133.1mm	0.411in 10.4mm	0.411in 10.4mm	0.411in 10.4mm	0.516in 13.1mm	0.516in 13.1mm	0.516in 13.1mm	0.875in 22.2mm	0.875in 22.2mm
Pressure Rating	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig
Temperature Rating	-28 to 232ºC -20 to 450ºF	-28 to 232ºC -20 to 450ºF	-28 to 232ºC -20 to 450ºF	-28 to 232ºC -20 to 450ºF	-28 to 232ºC -20 to 450ºF	-28 to 232ºC -20 to 450ºF	-28 to 232ºC -20 to 450ºF	-28 to 232ºC -20 to 450ºF	-28 to 232ºC -20 to 450ºF	-28 to 232ºC -20 to 450ºF	-28 to 232ºC -20 to 450ºF	-28 to 232ºC -20 to 450ºF
Specifications
Body Material	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass
Inch/Metric	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch
Series	SWB	SWB	SWB	SWB	SWB	SWB	SWB	SWB	SWB	SWB	SWB	SWB
Cv Coefficient	40.0	1.2	3.8	12.0	7.5	7.5	7.5	13.6	13.6	13.6	40.0	40.0
Description	SWB 1 in. Female National Pipe Taper (FNPT) Thread, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 1/4 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 3/8 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 1/2 in. Female National Pipe Taper (FNPT) Thread, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 1/2 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 1/2 in. Tube Outside Diameter D, Oval Handle, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 1/2 in. Tube Outside Diameter D, UHMWPE Seats, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 3/4 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 3/4 in. Tube Outside Diameter D, Oval Handle, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 3/4 in. Tube Outside Diameter D, UHMWPE Seats, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 1 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve	SWB 1 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve
End Type	Female National Pipe Thread (NPT)	-	-	Female National Pipe Thread (NPT)	-	-	-	-	-	-	-	-
