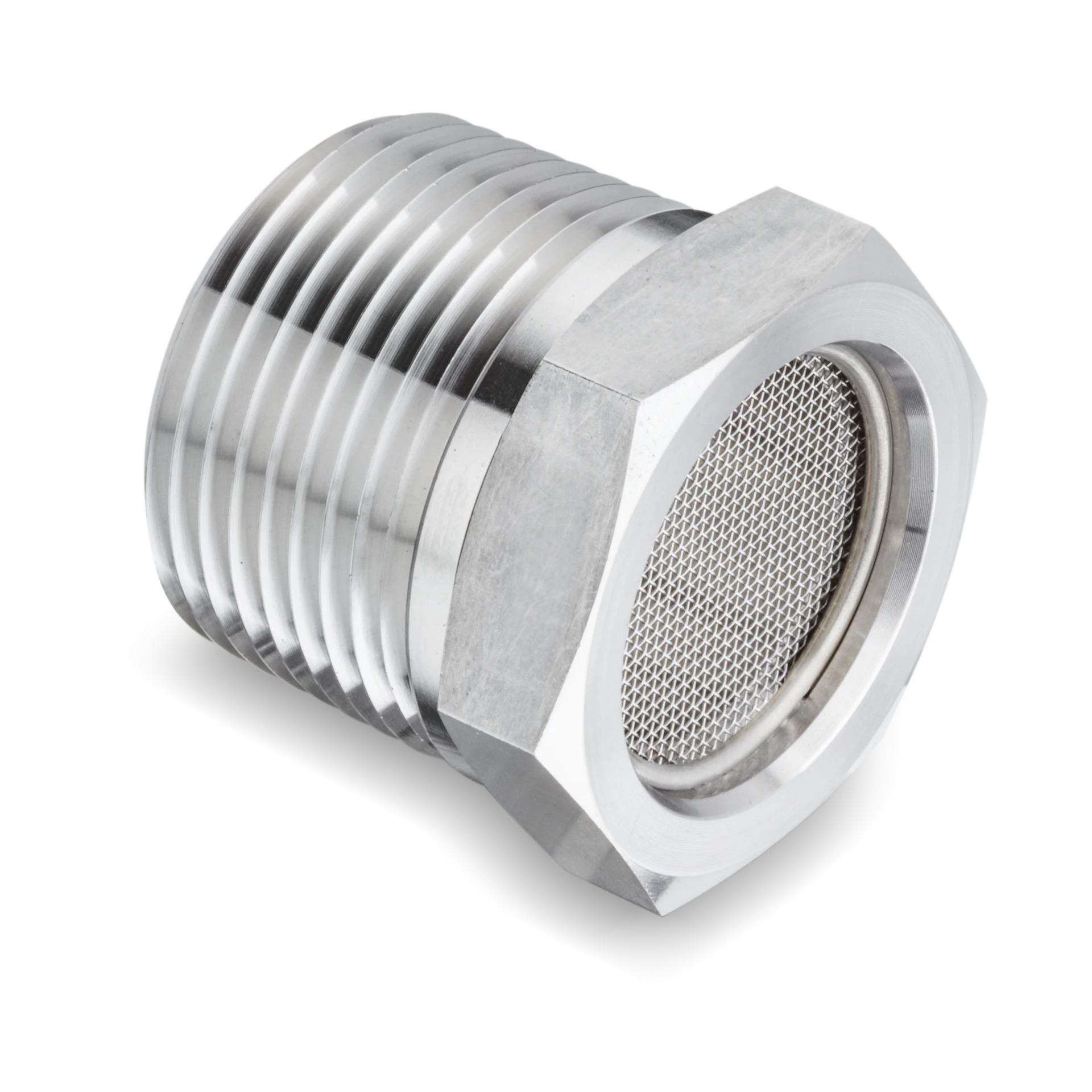

SVP Vent Protectors
Downloads
5 Items in SVP Vent Protectors
side-scroll to see full table
 |
|
|
|
| |
| Part# | SVP-4N | SVP-6N | SVP-8N | SVP-12N | SVP-12N |
| Information | |||||
| Type |
Protector |
Protector |
Protector |
Protector |
Protector |
| Part Number |
SVP-4N |
SVP-6N |
SVP-8N |
SVP-12N |
SVP-12N |
| Dimensions | |||||
| Dimension H |
9/16in |
11/16in |
0.875in |
1-1/16in |
1-1/16in |
| Dimension L |
19.81mm |
20.57mm |
26.16mm |
26.92mm |
26.92mm |
| Dimension L1 |
14.22mm |
14.22mm |
19.05mm |
19.05mm |
19.05mm |
| Dimension d |
7.11mm |
10.41mm |
12.70mm |
18.29mm |
18.29mm |
| Thread Length |
44200mm |
44263mm |
44198mm |
44259mm |
44259mm |
| Specifications | |||||
| Connection Type |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
| Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Description |
SVP 1/4 in. Male National Pipe Taper (MNPT) Thread T Vent Protector |
SVP 3/8 in. Male National Pipe Taper (MNPT) Thread T Vent Protector |
SVP 1/2 in. Male National Pipe Taper (MNPT) Thread T Vent Protector |
SVP 3/4 in. Male National Pipe Taper (MNPT) Thread T Vent Protector |
SVP 3/4 in. Male National Pipe Taper (MNPT) Thread T Vent Protector |
