17 Items in SUT Union Tees
side-scroll to see full table
Part# | SUT-1 | SUT-2 | SUT-4 | SUT-4M | SUT-5 | SUT-6 | SUT-6M | SUT-8 | SUT-8M | SUT-10 | SUT-12 | SUT-12M | SUT-14 | SUT-16 | SUT-20 | SUT-24 | SUT-24 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Information | |||||||||||||||||
Type |
Union Tee |
Union Tee |
Union Tee |
Union Tee |
Union Tee |
Union Tee |
Union Tee |
Union Tee |
Union Tee |
Union Tee |
Union Tee |
Union Tee |
Union Tee |
Union Tee |
Union Tee |
Union Tee |
Union Tee |
Part Number |
SUT-1 |
SUT-2 |
SUT-4 |
SUT-4M |
SUT-5 |
SUT-6 |
SUT-6M |
SUT-8 |
SUT-8M |
SUT-10 |
SUT-12 |
SUT-12M |
SUT-14 |
SUT-16 |
SUT-20 |
SUT-24 |
SUT-24 |
Dimensions | |||||||||||||||||

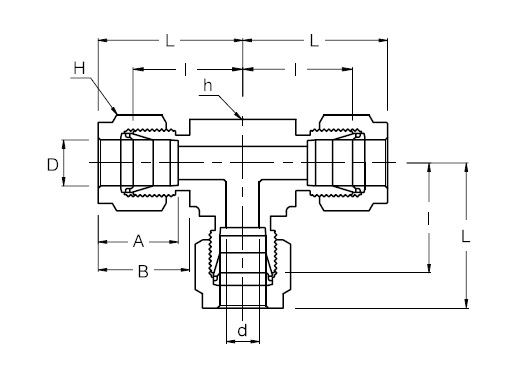

Dimension A |
8.63mm |
12.70mm |
15.24mm |
13.7mm |
16.25mm |
16.76mm |
15.3mm |
22.86mm |
16.2mm |
24.38mm |
24.38mm |
22.8mm |
25.90mm |
31.24mm |
41.15mm |
50.04mm |
50.04mm |
Dimension B |
10.92mm |
15.24mm |
17.78mm |
16.1mm |
18.54mm |
19.30mm |
17.7mm |
21.84mm |
18.6mm |
21.84mm |
21.84mm |
22.0mm |
21.84mm |
26.41mm |
38.86mm |
45.21mm |
45.21mm |
Dimension I |
14.00mm |
15.80mm |
20.10mm |
18.8mm |
22.35mm |
23.11mm |
19.6mm |
25.90mm |
22.4mm |
28.70mm |
29.71mm |
25.90mm |
34.54mm |
36.83mm |
44.45mm |
50.80mm |
50.80mm |
Dimension L |
18.03mm |
22.35mm |
27.40mm |
25.4mm |
29.71mm |
30.48mm |
27.0mm |
36.06mm |
29.9mm |
38.86mm |
39.87mm |
36.0mm |
44.70mm |
49.02mm |
66.55mm |
77.98mm |
77.98mm |
Dimension d [Min] |
1.27mm |
2.28mm |
4.82mm |
2.4mm |
6.35mm |
7.11mm |
4.8mm |
10.41mm |
6.4mm |
12.70mm |
15.74mm |
9.5mm |
18.28mm |
22.35mm |
27.69mm |
34.04mm |
34.04mm |
Tube Outside Diameter D |
1/16in
- mm |
1/8in
- mm |
1/4in
- mm |
- in
4mm |
5/16in
- mm |
3/8in
- mm |
- in
6mm |
1/2in
- mm |
- in
8mm |
5/8in
- mm |
3/4in
- mm |
- in
12mm |
7/8in
- mm |
1in
- mm |
1-1/4in
- mm |
1-1/2in
- mm |
1-1/2in
- mm |
Width Across Flats H |
5/16in
- mm |
7/16in
- mm |
9/16in
- mm |
- in
12mm |
5/8in
- mm |
11/16in
- mm |
- in
14mm |
7/8in
- mm |
- in
16mm |
1in
- mm |
1-1/8in
- mm |
- in
22mm |
1-1/4in
- mm |
1-1/2in
- mm |
1-7/8in
- mm |
2-1/4in
- mm |
2-1/4in
- mm |
Width Across Flats h |
3/8in
- mm |
3/8in
- mm |
1/2in
- mm |
- in
12.7mm |
5/8in
- mm |
5/8in
- mm |
- in
12.7mm |
13/16in
- mm |
- in
15.9mm |
1in
- mm |
1-1/16in
- mm |
- in
20.6mm |
1-3/8in
- mm |
1-3/8in
- mm |
1-11/16in
- mm |
2in
- mm |
2in
- mm |
Specifications | |||||||||||||||||
Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
Description |
SUT 1/16 in. Tube Outside Diameter D Union Tee |
SUT 1/8 in. Tube Outside Diameter D Union Tee |
SUT 1/4 in. Tube Outside Diameter D Union Tee |
SUT 4 mm Tube Outside Diameter D Union Tee |
SUT 5/16 in. Tube Outside Diameter D Union Tee |
SUT 3/8 in. Tube Outside Diameter D Union Tee |
SUT 6 mm Tube Outside Diameter D Union Tee |
SUT 1/2 in. Tube Outside Diameter D Union Tee |
SUT 8 mm Tube Outside Diameter D Union Tee |
SUT 5/8 in. Tube Outside Diameter D Union Tee |
SUT 3/4 in. Tube Outside Diameter D Union Tee |
SUT 12 mm Tube Outside Diameter D Union Tee |
SUT 7/8 in. Tube Outside Diameter D Union Tee |
SUT 1 in. Tube Outside Diameter D Union Tee |
SUT 1-1/4 in. Tube Outside Diameter D Union Tee |
SUT 1-1/2 in. Tube Outside Diameter D Union Tee |
SUT 1-1/2 in. Tube Outside Diameter D Union Tee |
Inch/Metric |
Inch |
Inch |
Inch |
Metric |
Inch |
Inch |
Metric |
Inch |
Metric |
Inch |
Inch |
Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
