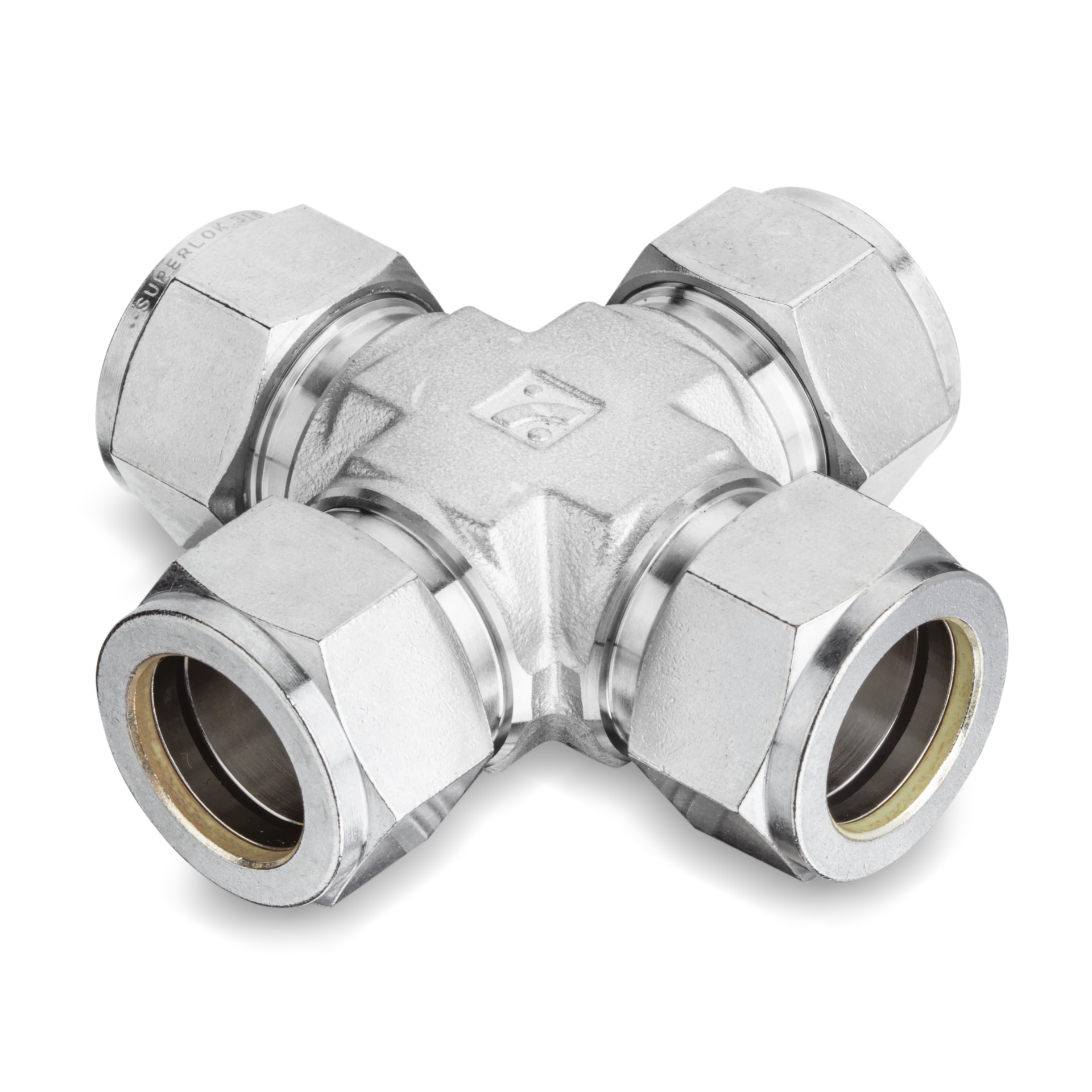

8 Items in SUC Union Crosses
side-scroll to see full table
 |
|
|
|
|
|
|
| |
| Part# | SUC-1 | SUC-2 | SUC-4 | SUC-6 | SUC-8 | SUC-12 | SUC-16 | SUC-16 |
| Information | ||||||||
| Type |
Union Cross |
Union Cross |
Union Cross |
Union Cross |
Union Cross |
Union Cross |
Union Cross |
Union Cross |
| Part Number |
SUC-1 |
SUC-2 |
SUC-4 |
SUC-6 |
SUC-8 |
SUC-12 |
SUC-16 |
SUC-16 |
| Dimensions | ||||||||
| Dimension A |
8.63mm |
12.70mm |
15.24mm |
16.76mm |
22.86mm |
24.38mm |
31.24mm |
31.24mm |
| Dimension B |
10.92mm |
15.24mm |
17.78mm |
19.30mm |
21.84mm |
21.84mm |
26.41mm |
26.41mm |
| Dimension I |
14.00mm |
15.74mm |
19.55mm |
23.11mm |
25.90mm |
29.71mm |
36.83mm |
36.83mm |
| Dimension L |
18.03mm |
22.35mm |
26.92mm |
30.48mm |
36.06mm |
39.87mm |
49.02mm |
49.02mm |
| Dimension d [Min] |
1.27mm |
2.28mm |
4.82mm |
7.11mm |
10.41mm |
15.74mm |
22.35mm |
22.35mm |
| Tube Outside Diameter D |
1/16in |
1/8in |
1/4in |
3/8in |
1/2in |
3/4in |
1in |
1in |
| Width Across Flats H |
5/16in |
7/16in |
9/16in |
11/16in |
7/8in |
1-1/8in |
1-1/2in |
1-1/2in |
| Width Across Flats h |
3/8in |
3/8in |
1/2in |
5/8in |
13/16in |
1in |
1-3/8in |
1-3/8in |
| Specifications | ||||||||
| Inch/Metric |
Metric |
Metric |
Metric |
Metric |
Metric |
Metric |
Metric |
Metric |
| Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Description |
SUC 1/16 in. Tube Outside Diameter D Union Cross |
SUC 1/8 in. Tube Outside Diameter D Union Cross |
SUC 1/4 in. Tube Outside Diameter D Union Cross |
SUC 3/8 in. Tube Outside Diameter D Union Cross |
SUC 1/2 in. Tube Outside Diameter D Union Cross |
SUC 3/4 in. Tube Outside Diameter D Union Cross |
SUC 1 in. Tube Outside Diameter D Union Cross |
SUC 1 in. Tube Outside Diameter D Union Cross |
| - | - | - | - | - | - | - | - | |
