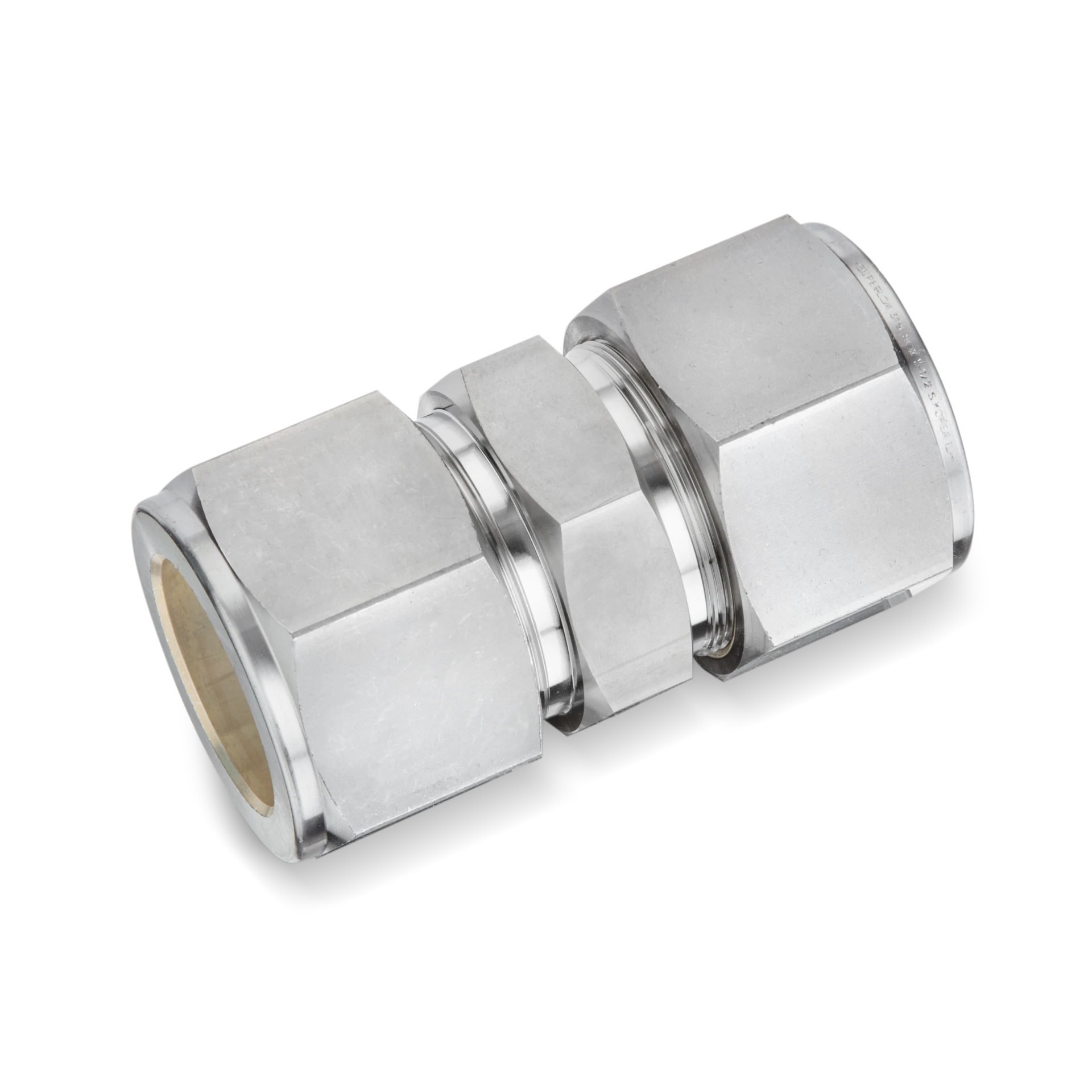

25 Items in SU Unions
side-scroll to see full table
Part# | SU-1 | SU-2 | SU-2-TM | SU-3 | SU-4 | SU-4-TM | SU-4M | SU-5 | SU-6 | SU-6M | SU-8 | SU-8-TM-132L | SU-8M | SU-10 | SU-10-TM-132L | SU-10M | SU-12 | SU-12-TM-132L | SU-12M | SU-14 | SU-16 | SU-16-TM-132L | SU-20 | SU-24 | SU-24 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Information | |||||||||||||||||||||||||
Type |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Part Number |
SU-1 |
SU-2 |
SU-2-TM |
SU-3 |
SU-4 |
SU-4-TM |
SU-4M |
SU-5 |
SU-6 |
SU-6M |
SU-8 |
SU-8-TM-132L |
SU-8M |
SU-10 |
SU-10-TM-132L |
SU-10M |
SU-12 |
SU-12-TM-132L |
SU-12M |
SU-14 |
SU-16 |
SU-16-TM-132L |
SU-20 |
SU-24 |
SU-24 |
Dimensions | |||||||||||||||||||||||||
Dimension A |
8.63mm |
12.70mm |
12.70mm |
13.71mm |
15.24mm |
15.24mm |
13.7mm |
16.25mm |
16.76mm |
15.3mm |
22.86mm |
22.86 |
16.2mm |
24.38mm |
24.38 |
17.2mm |
24.38mm |
24.38mm |
22.8mm |
25.90mm |
31.24mm |
31.24mm |
41.15mm |
50.04mm |
50.04mm |
Dimension B |
10.92mm |
15.24mm |
15.24mm |
16.00mm |
17.78mm |
17.78mm |
16.1mm |
18.54mm |
19.30mm |
17.7mm |
21.84mm |
21.84 |
18.6mm |
21.84mm |
21.84 |
19.5mm |
21.84mm |
21.84mm |
22.0mm |
21.84mm |
26.41mm |
26.41mm |
38.86mm |
45.21mm |
45.21mm |
Dimension I |
17.52mm |
22.35mm |
22.35mm |
24.13mm |
26.16mm |
26.16mm |
24.1mm |
28.19mm |
30.22mm |
26.2mm |
30.98mm |
30.98 |
28.2mm |
31.75mm |
31.75 |
31.0mm |
33.27mm |
33.27mm |
31.0mm |
34.79mm |
40.38mm |
40.38mm |
48.00mm |
53.59mm |
53.59mm |
Dimension L |
25.15mm |
35.56mm |
35.56mm |
37.33mm |
40.89mm |
40.89mm |
37.3mm |
42.92mm |
44.95mm |
41.0mm |
51.30mm |
51.30 |
43.2mm |
52.07mm |
52.07 |
46.2mm |
53.59mm |
53.59mm |
51.2mm |
55.11mm |
64.77mm |
64.77mm |
92.20mm |
107.95mm |
107.95mm |
Dimension d [Min] |
1.27mm |
2.28mm |
2.28mm |
3.04mm |
4.82mm |
4.82mm |
2.4mm |
6.35mm |
7.11mm |
4.8mm |
10.41mm |
10.41 |
6.4mm |
12.70mm |
12.70 |
7.9mm |
15.74mm |
15.74mm |
9.5mm |
18.28mm |
22.35mm |
22.35mm |
27.69mm |
34.04mm |
34.04mm |
Tube Outside Diameter D |
1/16in
- mm |
1/8in
- mm |
1/8in
- mm |
3/16in
- mm |
1/4in
- mm |
1/4in
- mm |
- in
4mm |
5/16in
- mm |
3/8in
- mm |
- in
6mm |
1/2in
- mm |
1/2in
- mm |
- in
8mm |
5/8in
- mm |
5/8in
- mm |
- in
10mm |
3/4in
- mm |
3/4in
- mm |
- in
12mm |
7/8in
- mm |
1in
- mm |
1in
- mm |
1-1/4in
- mm |
1-1/2in
- mm |
1-1/2in
- mm |
Width Across Flats H |
5/16in |
7/16in |
7/16in |
1/2in |
9/16in |
9/16in |
12in |
5/8in |
11/16in |
14in |
7/8in |
7/8 |
16in |
1in |
1 |
19in |
1-1/8in |
1-1/8in |
22in |
1-1/4in |
1-1/2in |
1-1/2in |
1-7/8in |
2-1/4in |
2-1/4in |
Width Across Flats h |
5/16in |
7/16in |
7/16in |
7/16in |
1/2in |
1/2in |
12in |
9/16in |
5/8in |
14in |
13/16in |
13/16 |
15in |
15/16in |
15/16 |
18in |
1-1/16in |
1-1/16in |
22in |
1-3/16in |
1-3/8in |
1-3/8in |
1-3/4in |
2-1/8in |
2-1/8in |
Specifications | |||||||||||||||||||||||||
Description |
SU 1/16 in. Tube Outside Diameter D Union |
SU 1/8 in. Tube Outside Diameter D Union |
SU 1/8 in. Tube Outside Diameter D Union with Bored Through |
SU 3/16 in. Tube Outside Diameter D Union |
SU 1/4 in. Tube Outside Diameter D Union |
SU 1/4 in. Tube Outside Diameter D Union with Bored Through |
SU 4 mm Tube Outside Diameter D Union |
SU 5/16 in. Tube Outside Diameter D Union |
SU 3/8 in. Tube Outside Diameter D Union |
SU 6 mm Tube Outside Diameter D Union |
SU 1/2 in. Tube Outside Diameter D Union |
SU 1/2 in. Tube Outside Diameter D, 6 in. Overall Length Coax Union with Bored Through |
SU 8 mm Tube Outside Diameter D Union |
SU 5/8 in. Tube Outside Diameter D Union |
SU 5/8 in. Tube Outside Diameter D, 6 in. Overall Length Coax Union with Bored Through |
SU 10 mm Tube Outside Diameter D Union |
SU 3/4 in. Tube Outside Diameter D Union |
SU 3/4 in. Tube Outside Diameter D, 6 in. Overall Length Coax Union with Bored Through |
SU 12 mm Tube Outside Diameter D Union |
SU 7/8 in. Tube Outside Diameter D Union |
SU 1 in. Tube Outside Diameter D Union |
SU 1 in. Tube Outside Diameter D, 6 in. Overall Length Coax Union with Bored Through |
SU 1-1/4 in. Tube Outside Diameter D Union |
SU 1-1/2 in. Tube Outside Diameter D Union |
SU 1-1/2 in. Tube Outside Diameter D Union |
Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Metric |
Inch |
Inch |
Metric |
Inch |
Inch |
Metric |
Inch |
Inch |
Metric |
Inch |
Inch |
Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Dimension A |
8.63mm |
12.70mm |
12.70mm |
13.71mm |
15.24mm |
15.24mm |
13.7mm |
16.25mm |
16.76mm |
15.3mm |
22.86mm |
22.86 |
16.2mm |
24.38mm |
24.38 |
17.2mm |
24.38mm |
24.38mm |
22.8mm |
25.90mm |
31.24mm |
31.24mm |
41.15mm |
50.04mm |
50.04mm |
Dimension B |
10.92mm |
15.24mm |
15.24mm |
16.00mm |
17.78mm |
17.78mm |
16.1mm |
18.54mm |
19.30mm |
17.7mm |
21.84mm |
21.84 |
18.6mm |
21.84mm |
21.84 |
19.5mm |
21.84mm |
21.84mm |
22.0mm |
21.84mm |
26.41mm |
26.41mm |
38.86mm |
45.21mm |
45.21mm |
Dimension d [Min] |
1.27mm |
2.28mm |
2.28mm |
3.04mm |
4.82mm |
4.82mm |
2.4mm |
6.35mm |
7.11mm |
4.8mm |
10.41mm |
10.41 |
6.4mm |
12.70mm |
12.70 |
7.9mm |
15.74mm |
15.74mm |
9.5mm |
18.28mm |
22.35mm |
22.35mm |
27.69mm |
34.04mm |
34.04mm |
Dimension I |
17.52mm |
22.35mm |
22.35mm |
24.13mm |
26.16mm |
26.16mm |
24.1mm |
28.19mm |
30.22mm |
26.2mm |
30.98mm |
30.98 |
28.2mm |
31.75mm |
31.75 |
31.0mm |
33.27mm |
33.27mm |
31.0mm |
34.79mm |
40.38mm |
40.38mm |
48.00mm |
53.59mm |
53.59mm |
Dimension L |
25.15mm |
35.56mm |
35.56mm |
37.33mm |
40.89mm |
40.89mm |
37.3mm |
42.92mm |
44.95mm |
41.0mm |
51.30mm |
51.30 |
43.2mm |
52.07mm |
52.07 |
46.2mm |
53.59mm |
53.59mm |
51.2mm |
55.11mm |
64.77mm |
64.77mm |
92.20mm |
107.95mm |
107.95mm |
Width Across Flats h |
5/16in |
7/16in |
7/16in |
7/16in |
1/2in |
1/2in |
12in |
9/16in |
5/8in |
14in |
13/16in |
13/16 |
15in |
15/16in |
15/16 |
18in |
1-1/16in |
1-1/16in |
22in |
1-3/16in |
1-3/8in |
1-3/8in |
1-3/4in |
2-1/8in |
2-1/8in |
Width Across Flats H |
5/16in |
7/16in |
7/16in |
1/2in |
9/16in |
9/16in |
12in |
5/8in |
11/16in |
14in |
7/8in |
7/8 |
16in |
1in |
1 |
19in |
1-1/8in |
1-1/8in |
22in |
1-1/4in |
1-1/2in |
1-1/2in |
1-7/8in |
2-1/4in |
2-1/4in |
