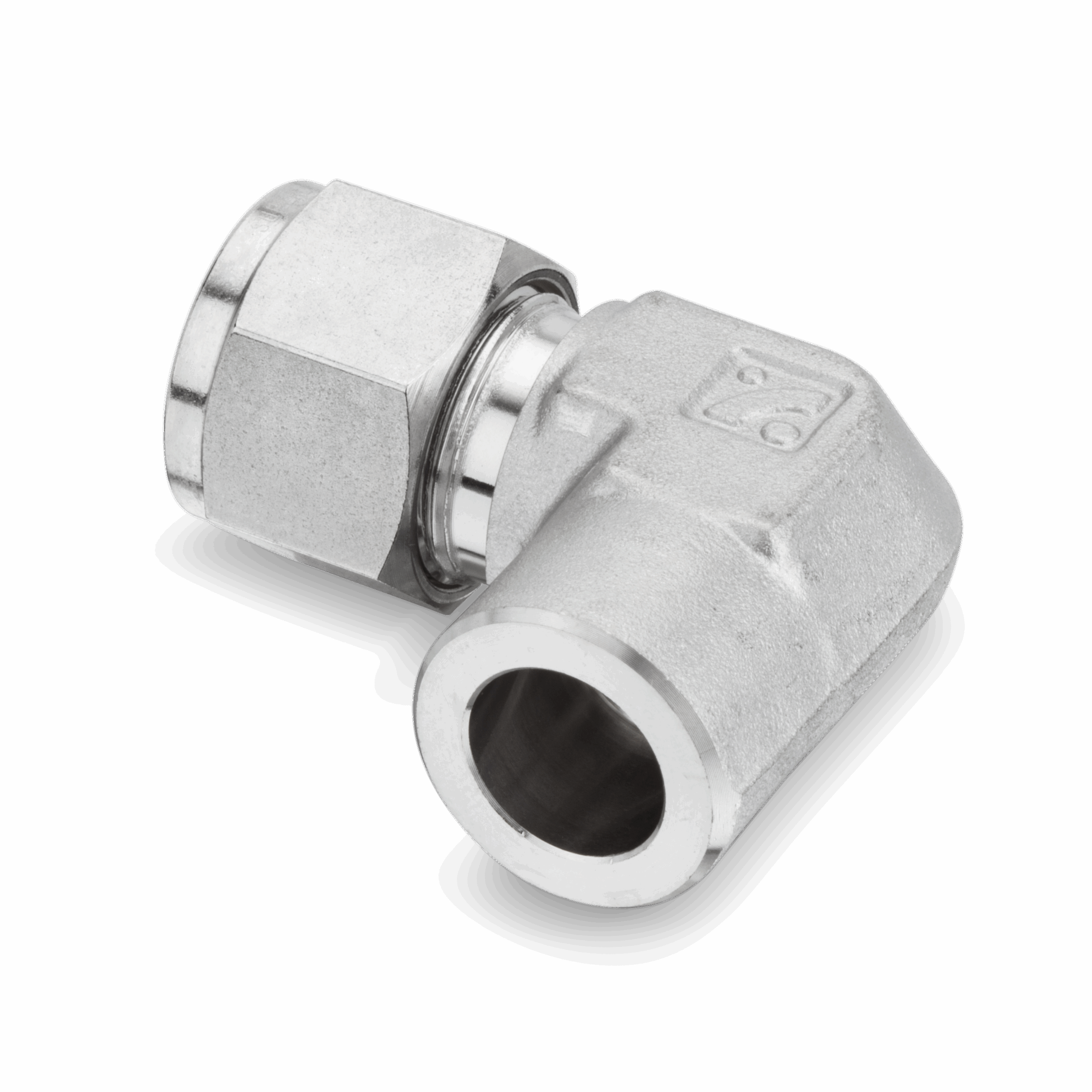

SSWE Tube Socket Elbows

Downloads

2 Items in SSWE Tube Socket Elbows

	Item #	Item Name
	SSWE-4 SSWE 1/4 in. Tube Outside Diameter D x 1/4 in. Tube Socket Weld 90 Degree Elbow	SSWE 1/4 in. Tube Outside Diameter D x 1/4 in. Tube Socket Weld 90 Degree Elbow
	SSWE-8 SSWE 1/2 in. Tube Outside Diameter D x 1/2 in. Tube Socket Weld 90 Degree Elbow	SSWE 1/2 in. Tube Outside Diameter D x 1/2 in. Tube Socket Weld 90 Degree Elbow

side-scroll to see full table

Information

Part#	SSWE-4	SSWE-4
Type	Socket Elbows	Socket Elbows
Part Number	SSWE-4	SSWE-4
Dimensions
Angle	90º	90º
Dimension A	15.24mm	15.24mm
Dimension B	17.78mm	17.78mm
Dimension I	19.55mm	19.55mm
Dimension I1	7.87mm	7.87mm
Dimension L	26.92mm	26.92mm
Dimension L1	19.55mm	19.55mm
Dimension P	12.70mm	12.70mm
Dimension d [Min]	4.82mm	4.82mm
Tube Outside Diameter D	1/4in	1/4in
Width Across Flats H	9/16in	9/16in
Width Across Flats h	5/8in	5/8in
Specifications
Inch/Metric	Inch	Inch
Material	316 Stainless Steel	316 Stainless Steel
Description	SSWE 1/4 in. Tube Outside Diameter D x 1/4 in. Tube Socket Weld 90 Degree Elbow	SSWE 1/4 in. Tube Outside Diameter D x 1/4 in. Tube Socket Weld 90 Degree Elbow
