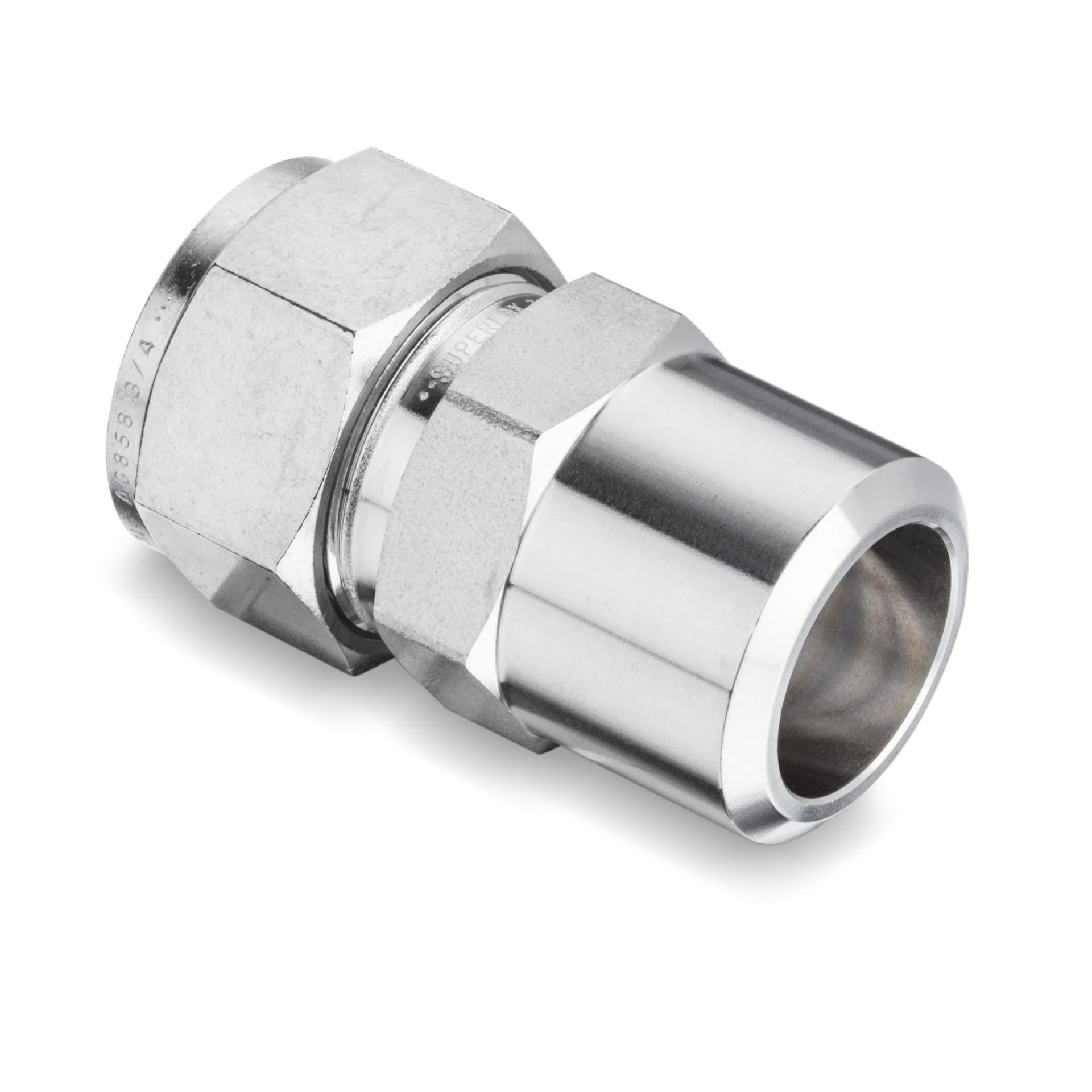

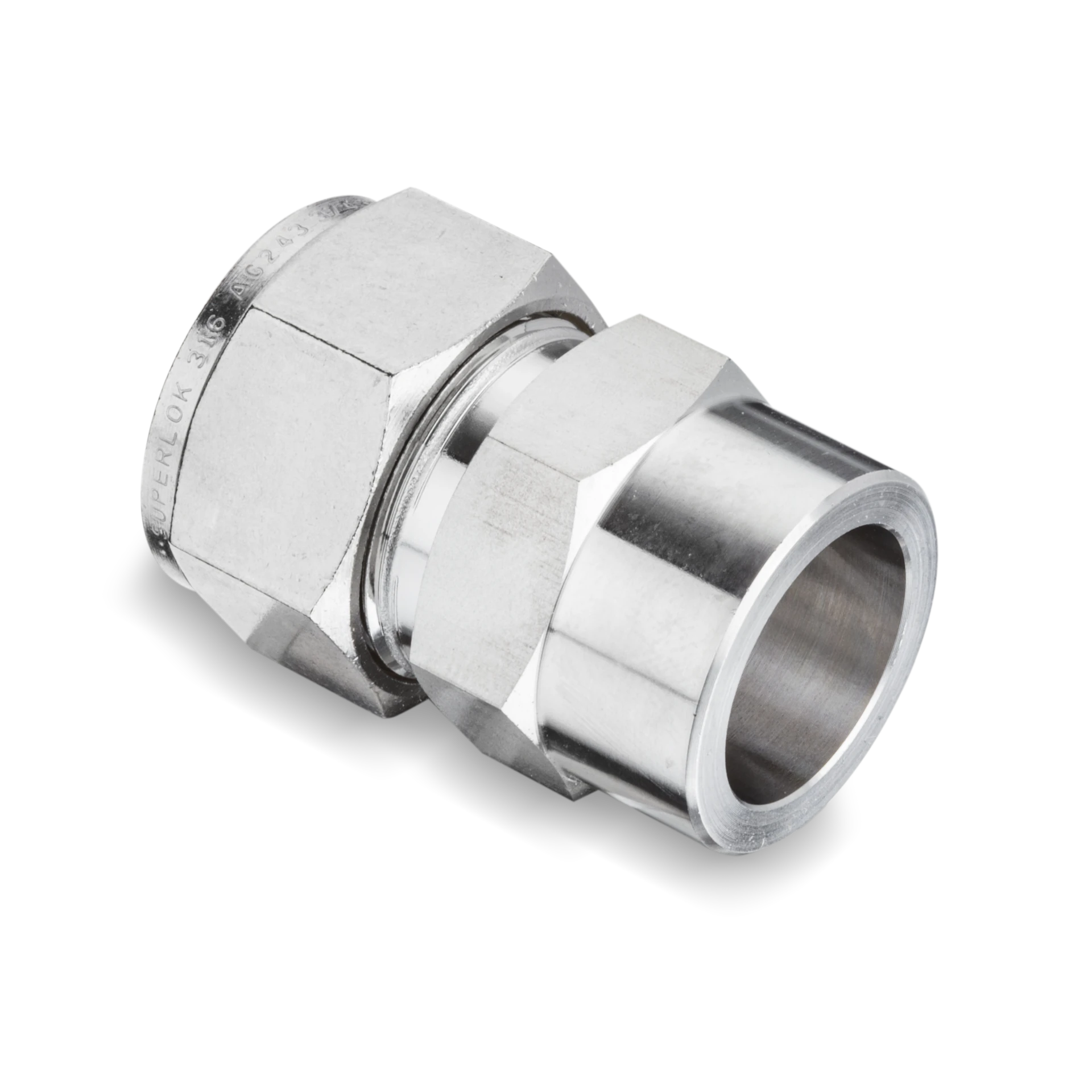

SSWC Tube Socket Weld Connectors
5 Items in SSWC Tube Socket Weld Connectors
side-scroll to see full table
 |
|
|
|
| |
| Part# | SSWC-4 | SSWC-6 | SSWC-8 | SSWC-12 | SSWC-12 |
| Information | |||||
| Type |
Weld Connector |
Weld Connector |
Weld Connector |
Weld Connector |
Weld Connector |
| Part Number |
SSWC-4 |
SSWC-6 |
SSWC-8 |
SSWC-12 |
SSWC-12 |

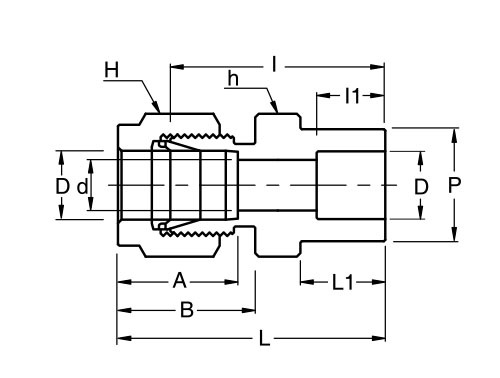

| Dimensions | |||||
| Dimension A |
15.24mm |
16.76mm |
22.86mm |
24.38mm |
24.38mm |
| Dimension B |
17.78mm |
19.30mm |
21.84mm |
21.84mm |
21.84mm |
| Dimension I |
26.16mm |
30.22mm |
30.98mm |
33.27mm |
33.27mm |
| Dimension I1 |
7.87mm |
9.65mm |
12.70mm |
14.22mm |
14.22mm |
| Dimension L |
33.52mm |
37.59mm |
41.14mm |
43.43mm |
43.43mm |
| Dimension L1 |
10.41mm |
11.93mm |
11.93mm |
11.93mm |
11.93mm |
| Dimension P |
11.17mm |
15.74mm |
19.05mm |
26.67mm |
26.67mm |
| Dimension d [Min] |
4.82mm |
7.11mm |
10.41mm |
15.74mm |
15.74mm |
| Tube Outside Diameter D |
1/4in |
3/8in |
1/2in |
3/4in |
3/4in |
| Width Across Flats H |
9/16in |
11/16in |
7/8in |
1-1/8in |
1-1/8in |
| Width Across Flats h |
1/2in |
5/8in |
13/16in |
1-1/16in |
1-1/16in |
| Specifications | |||||
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
| Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Description |
SSWC 1/4 in. Tube Outside Diameter D x 1/4 in. Tube Socket Weld Connector |
SSWC 3/8 in. Tube Outside Diameter D x 3/8 in. Tube Socket Weld Connector |
SSWC 1/2 in. Tube Outside Diameter D x 1/2 in. Tube Socket Weld Connector |
SSWC 3/4 in. Tube Outside Diameter D x 3/4 in. Tube Socket Weld Connector |
SSWC 3/4 in. Tube Outside Diameter D x 3/4 in. Tube Socket Weld Connector |
