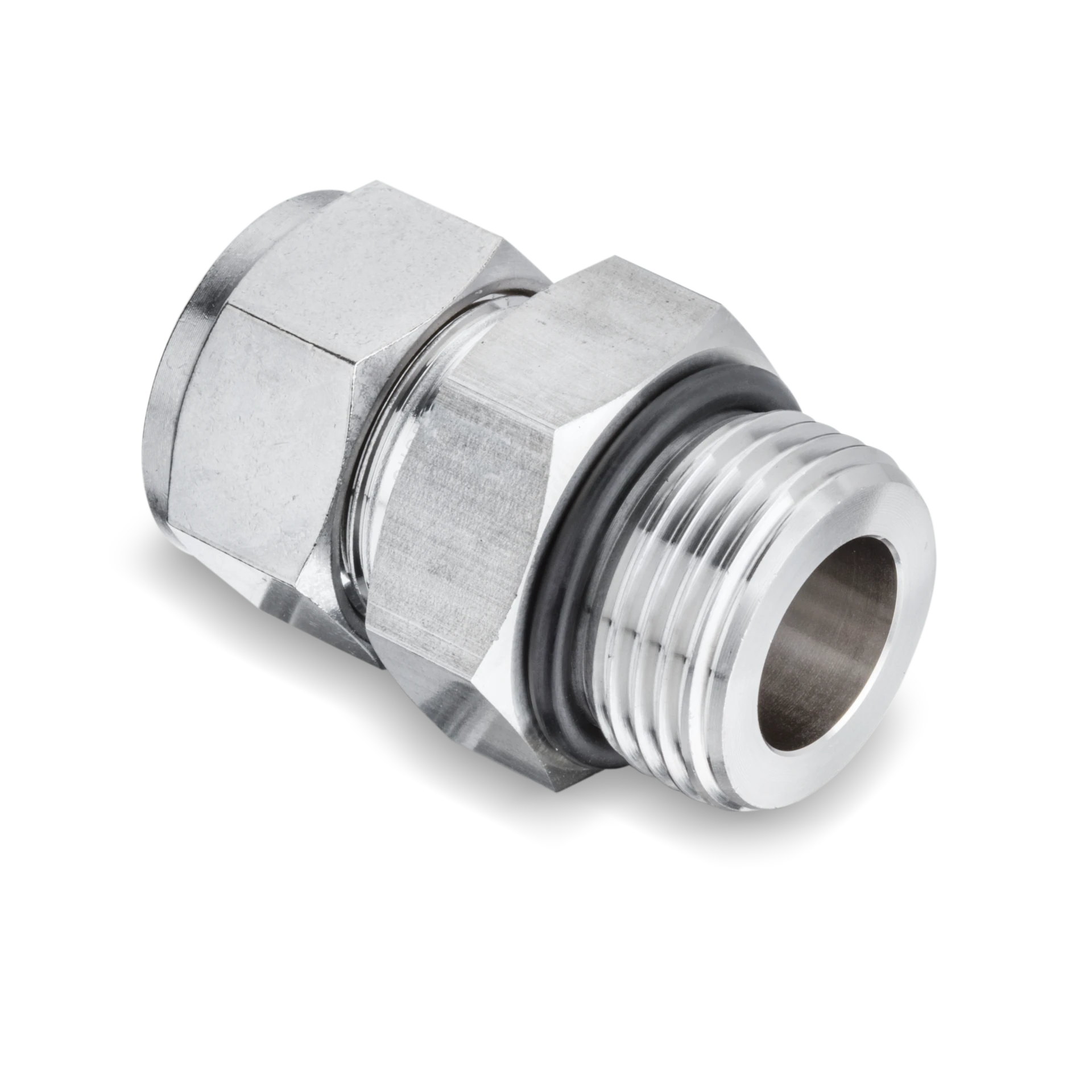

SSMC Male Connectors
Downloads
16 Items in SSMC Male Connectors
side-scroll to see full table
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| Part# | SSMC 4-4U | SSMC 4-6U | SSMC 4-8U | SSMC 6-4U | SSMC 6-6U | SSMC 6-8U | SSMC 6-10U | SSMC 8-6U | SSMC 8-8U | SSMC 8-10U | SSMC 8-12U | SSMC 10-8U | SSMC 10-10U | SSMC 12-8U | SSMC 12-12U | SSMC 12-12U |
| Information | ||||||||||||||||
| Type |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
| Part Number |
SSMC 4-4U |
SSMC 4-6U |
SSMC 4-8U |
SSMC 6-4U |
SSMC 6-6U |
SSMC 6-8U |
SSMC 6-10U |
SSMC 8-6U |
SSMC 8-8U |
SSMC 8-10U |
SSMC 8-12U |
SSMC 10-8U |
SSMC 10-10U |
SSMC 12-8U |
SSMC 12-12U |
SSMC 12-12U |
| Dimensions | ||||||||||||||||
| Dimension A |
15.24mm |
15.24mm |
15.24mm |
16.76mm |
16.76mm |
16.76mm |
16.76mm |
22.86mm |
22.86mm |
22.86mm |
22.86mm |
24.38mm |
24.38mm |
24.38mm |
24.38mm |
24.38mm |
| Dimension B |
17.78mm |
17.78mm |
17.78mm |
19.30mm |
19.30mm |
19.30mm |
19.30mm |
21.84mm |
21.84mm |
21.84mm |
21.84mm |
21.84mm |
21.84mm |
21.84mm |
21.84mm |
21.84mm |
| Dimension I |
26.67mm |
28.19mm |
30.22mm |
28.19mm |
29.71mm |
31.75mm |
34.79mm |
28.95mm |
31.75mm |
34.79mm |
38.86mm |
31.75mm |
35.05mm |
35.81mm |
38.86mm |
38.86mm |
| Dimension I1 |
9.14mm |
9.90mm |
11.17mm |
9.14mm |
9.90mm |
11.17mm |
12.70mm |
9.90mm |
11.17mm |
12.70mm |
14.98mm |
11.17mm |
12.70mm |
11.17mm |
14.98mm |
14.98mm |
| Dimension L |
34.03mm |
35.56mm |
37.59mm |
35.56mm |
37.08mm |
39.11mm |
42.16mm |
39.11mm |
41.91mm |
44.95mm |
49.02mm |
41.91mm |
45.21mm |
45.97mm |
49.02mm |
49.02mm |
| Dimension d [Min] |
4.82mm |
4.82mm |
4.82mm |
5.08mm |
7.11mm |
7.11mm |
7.11mm |
7.11mm |
10.41mm |
10.41mm |
10.41mm |
10.66mm |
12.70mm |
10.66mm |
15.74mm |
15.74mm |
| End Size |
44028in |
43359in |
42433in |
44028in |
43359in |
42433in |
41828in |
43359in |
42433in |
41828in |
1-1/16-12in |
42433in |
41828in |
42433in |
1-1/16-12in |
1-1/16-12in |
| Tube Outside Diameter D |
1/4in |
1/4in |
1/4in |
3/8in |
3/8in |
3/8in |
3/8in |
1/2in |
1/2in |
1/2in |
1/2in |
5/8in |
5/8in |
3/4in |
3/4in |
3/4in |
| Width Across Flats H |
9/16in |
9/16in |
9/16in |
11/16in |
11/16in |
11/16in |
11/16in |
7/8in |
7/8in |
7/8in |
7/8in |
1in |
1in |
1-1/8in |
1-1/8in |
1-1/8in |
| Width Across Flats h |
9/16in |
11/16in |
7/8in |
5/8in |
11/16in |
7/8in |
1in |
13/16in |
7/8in |
1in |
1-1/4in |
15/16in |
1in |
1-1/16in |
1-1/4in |
1-1/4in |
| Specifications | ||||||||||||||||
| End Type |
Society of Automotive Engineering (SAE)/MS Straight Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
| Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Description |
SSMC 1/4 in. Tube Outside Diameter D x 7/16-20 Male Society of Automotive Engineering (SAE) Connector with O-Ring |
SSMC 1/4 in. Tube Outside Diameter D x 9/16-18 Male Society of Automotive Engineering (SAE) Connector with O-Ring |
SSMC 1/4 in. Tube Outside Diameter D x 3/4-16 Male Society of Automotive Engineering (SAE) Connector with O-Ring |
SSMC 3/8 in. Tube Outside Diameter D x 7/16-20 Male Society of Automotive Engineering (SAE) Connector with O-Ring |
SSMC 3/8 in. Tube Outside Diameter D x 9/16-18 Male Society of Automotive Engineering (SAE) Connector with O-Ring |
SSMC 3/8 in. Tube Outside Diameter D x 3/4-16 Male Society of Automotive Engineering (SAE) Connector with O-Ring |
SSMC 3/8 in. Tube Outside Diameter D x 7/8-14 Male Society of Automotive Engineering (SAE) Connector with O-Ring |
SSMC 1/2 in. Tube Outside Diameter D x 9/16-18 Male Society of Automotive Engineering (SAE) Connector with O-Ring |
SSMC 1/2 in. Tube Outside Diameter D x 3/4-16 Male Society of Automotive Engineering (SAE) Connector with O-Ring |
SSMC 1/2 in. Tube Outside Diameter D x 7/8-14 Male Society of Automotive Engineering (SAE) Connector with O-Ring |
SSMC 1/2 in. Tube Outside Diameter D x 1-1/6-12 Male Society of Automotive Engineering (SAE) Connector with O-Ring |
SSMC 5/8 in. Tube Outside Diameter D x 3/4-16 Male Society of Automotive Engineering (SAE) Connector with O-Ring |
SSMC 5/8 in. Tube Outside Diameter D x 7/8-14 Male Society of Automotive Engineering (SAE) Connector with O-Ring |
SSMC 3/4 in. Tube Outside Diameter D x 3/4-16 Male Society of Automotive Engineering (SAE) Connector with O-Ring |
SSMC 3/4 in. Tube Outside Diameter D x 1-1/6-12 Male Society of Automotive Engineering (SAE) Connector with O-Ring |
SSMC 3/4 in. Tube Outside Diameter D x 1-1/6-12 Male Society of Automotive Engineering (SAE) Connector with O-Ring |
| O-Ring Uniform Size Number |
3-904 |
3-906 |
3-908 |
3-904 |
3-906 |
3-908 |
3-910 |
3-906 |
3-908 |
3-910 |
3-912 |
3-908 |
3-910 |
3-908 |
3-912 |
3-912 |
