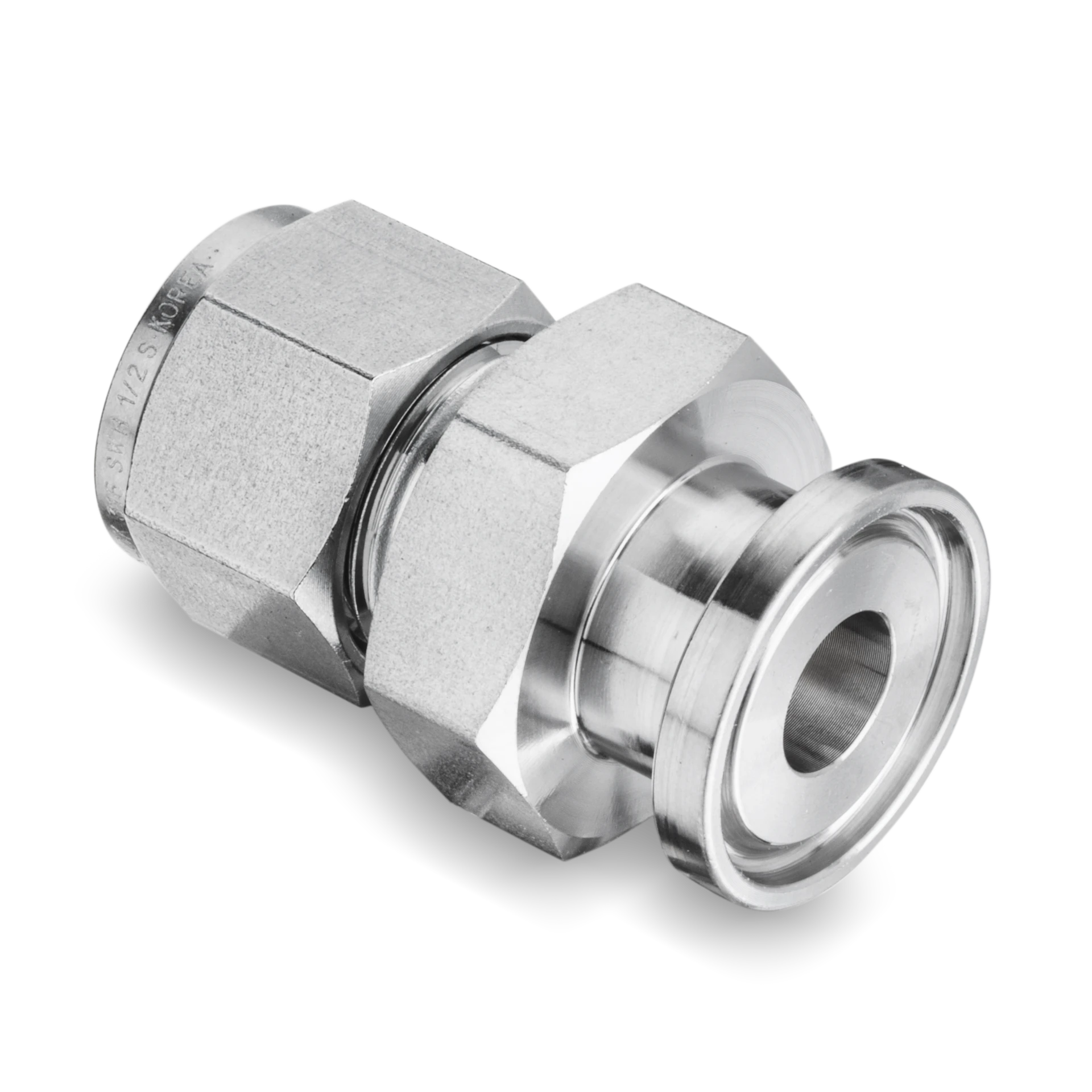

SSFA Sanitary Flange Adapters
- 316 stainless steel material standard; optional materials include alloy 400, Brass and alloy C-276.
- Wrench flats for ease of tube fitting assembly.
- Gaugeability on initial installation using Superlok gap inspection gauges.
- One-piece integrally machined body.
- Available with Superlok tube fitting and connections up to 50 mm and 2 in,.
16 Items in SSFA Sanitary Flange Adapters
side-scroll to see full table
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Part# | SSFA-4-8SA | SSFA-4-12SA | SSFA-4-16SA | SSFA-4-24SA | SSFA-6-8SA | SSFA-6-12SA | SSFA-6-16SA | SSFA-6-24SA | SSFA-8-8SA | SSFA-8-12SA | SSFA-8-16SA | SSFA-8-24SA | SSFA-12-12SA | SSFA-12-16SA | SSFA-16-16SA | SSFA-16-16SA |
| Information | ||||||||||||||||
| Dimensions | ||||||||||||||||
| Dimension A |
25.0mm
|
25.0mm
|
50.4mm
|
50.4mm
|
25.0mm
|
25.0mm
|
50.4mm
|
50.4mm
|
25.0mm
|
25.0mm
|
50.4mm
|
50.4mm
|
25.0mm
|
50.4mm
|
50.4mm
|
50.4mm
|
| Dimension B |
9.4mm
|
15.75mm
|
22.1mm
|
34.8mm
|
9.4mm
|
15.75mm
|
22.1mm
|
34.8mm
|
9.4mm
|
15.75mm
|
22.1mm
|
34.8mm
|
15.75mm
|
22.1mm
|
22.35mm
|
22.35mm
|
| Dimension C |
15.5mm
|
15.5mm
|
15.5mm
|
15.5mm
|
17.0mm
|
17.0mm
|
17.0mm
|
17.0mm
|
22.9mm
|
22.9mm
|
22.9mm
|
22.9mm
|
24.6mm
|
24.6mm
|
31.4mm
|
31.4mm
|
| Dimension E |
4.8mm
|
4.8mm
|
4.8mm
|
4.8mm
|
7.1mm
|
7.1mm
|
7.1mm
|
7.1mm
|
10.4mm
|
10.4mm
|
10.4mm
|
10.4mm
|
15.75mm
|
15.75mm
|
22.35mm
|
22.35mm
|
| Dimension F, Falt |
27.0mm
|
27.0mm
|
34.9mm
|
34.9mm
|
27.0mm
|
27.0mm
|
34.9mm
|
34.9mm
|
27.0mm
|
27.0mm
|
34.9mm
|
34.9mm
|
27.0mm
|
34.9mm
|
34.9mm
|
34.9mm
|
| Dimension H, Hex |
14.3mm
|
14.3mm
|
14.3mm
|
14.3mm
|
17.5mm
|
17.5mm
|
17.5mm
|
17.5mm
|
22.2mm
|
22.2mm
|
22.2mm
|
22.2mm
|
28.6mm
|
28.6mm
|
38.1mm
|
38.1mm
|
| Dimension I |
32.4mm
|
32.5mm
|
32.5mm
|
32.5mm
|
34.0mm
|
34.0mm
|
34.0mm
|
34.0mm
|
34.0mm
|
34.0mm
|
34.0mm
|
34.0mm
|
34.0mm
|
33.8mm
|
36.4mm
|
36.4mm
|
| Dimension L |
39.9mm
|
40mm
|
40mm
|
40mm
|
41.5mm
|
41.5mm
|
41.5mm
|
41.5mm
|
44.2mm
|
44.2mm
|
44.2mm
|
44.2mm
|
44.4mm
|
44.2mm
|
48.8mm
|
48.8mm
|
| Specifications | ||||||||||||||||
| Body Material |
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
316 Stainless Steel
|
| Description |
Sanitary Flange Adapters
|
Sanitary Flange Adapters
|
Sanitary Flange Adapters
|
Sanitary Flange Adapters
|
Sanitary Flange Adapters
|
Sanitary Flange Adapters
|
Sanitary Flange Adapters
|
Sanitary Flange Adapters
|
Sanitary Flange Adapters
|
Sanitary Flange Adapters
|
Sanitary Flange Adapters
|
Sanitary Flange Adapters
|
Sanitary Flange Adapters
|
Sanitary Flange Adapters
|
Sanitary Flange Adapters
|
Sanitary Flange Adapters
|
| Sanitary Flange Size |
1/2
|
3/4
|
1
|
1-1/2
|
1/2
|
3/4
|
1
|
1-1/2
|
1/2
|
3/4
|
1
|
1-1/2
|
3/4
|
1
|
3/4
|
3/4
|
| Tube O.D. D, inch |
1/4
|
1/4
|
1/4
|
1/4
|
3/8
|
3/8
|
3/8
|
3/8
|
1/2
|
1/2
|
1/2
|
1/2
|
3/4
|
3/4
|
1
|
1
|
