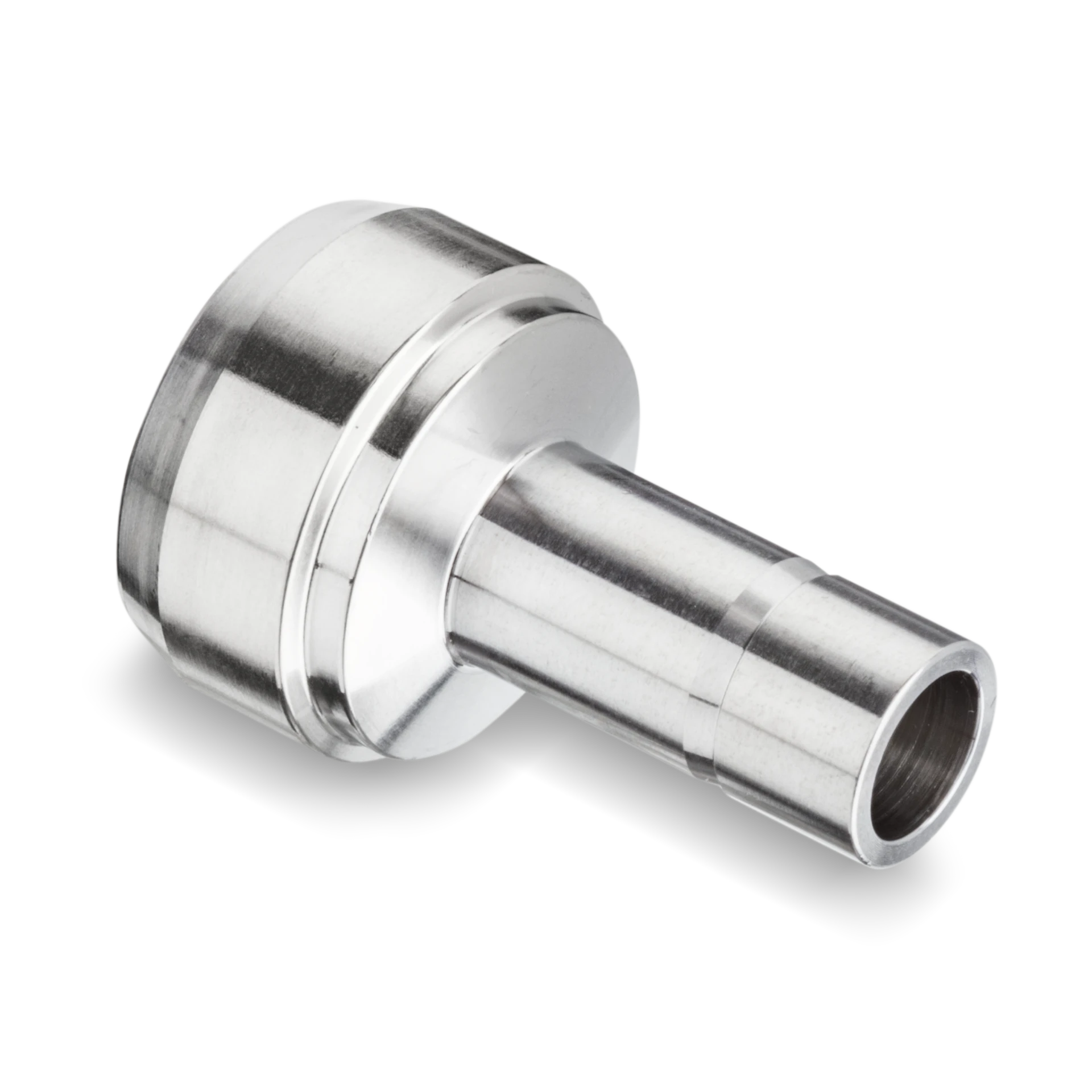

10 Items in SRPC Reducing Port Connectors
Item #Item Name
SRPC 1/8 in. x 1/16 in. Tube Outside Diameter D Reducing Port Connector
SRPC 1/4 in. x 1/16 in. Tube Outside Diameter D Reducing Port Connector
SRPC 1/4 in. x 1/8 in. Tube Outside Diameter D Reducing Port Connector
SRPC 3/8 in. x 1/8 in. Tube Outside Diameter D Reducing Port Connector
SRPC 3/8 in. x 1/4 in. Tube Outside Diameter D Reducing Port Connector
SRPC 1/2 in. x 1/4 in. Tube Outside Diameter D Reducing Port Connector
SRPC 1/2 in. x 3/8 in. Tube Outside Diameter D Reducing Port Connector
SRPC 3/4 in. x 1/2 in. Tube Outside Diameter D Reducing Port Connector
SRPC 1 in. x 1/2 in. Tube Outside Diameter D Reducing Port Connector
SRPC 1 in. x 3/4 in. Tube Outside Diameter D Reducing Port Connector
side-scroll to see full table

Part# SRPC 2-1 SRPC 4-1 SRPC 4-2 SRPC 6-2 SRPC 6-4 SRPC 8-4 SRPC 8-6 SRPC 12-8 SRPC 16-8 SRPC 16-8
Information
Type
Port Connector
Port Connector
Port Connector
Port Connector
Port Connector
Port Connector
Port Connector
Port Connector
Port Connector
Port Connector
Part Number
SRPC 2-1
SRPC 4-1
SRPC 4-2
SRPC 6-2
SRPC 6-4
SRPC 8-4
SRPC 8-6
SRPC 12-8
SRPC 16-8
SRPC 16-8
Dimensions
Dimension E
6.09mm
9.39mm
9.39mm
12.7mm
12.7mm
15.74mm
15.74mm
22.09mm
28.44mm
28.44mm
Dimension I
8.63mm
8.63mm
13.46mm
13.46mm
15.74mm
15.74mm
17.52mm
24.38mm
24.38mm
24.38mm
Dimension I1
2.03mm
3.55mm
3.3mm
3.81mm
3.3mm
3.81mm
3.3mm
3.81mm
4.82mm
4.82mm
Dimension L
17.27mm
18.03mm
22.6mm
23.11mm
24.89mm
29.21mm
30.48mm
37.84mm
42.67mm
42.67mm
Dimension d [Min]
0.76mm
0.76mm
2.1mm
2.1mm
4.4mm
4.4mm
6.9mm
9.4mm
9.4mm
9.4mm
Tube Outside Diameter D
1/16in
1/16in
1/8in
1/8in
1/4in
1/4in
3/8in
1/2in
1/2in
1/2in
Tube Outside Diameter D1
1/8in
1/4in
1/4in
3/8in
3/8in
1/2in
1/2in
3/4in
1in
1in
Specifications
Inch/Metric
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Material
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
Description
SRPC 1/8 in. x 1/16 in. Tube Outside Diameter D Reducing Port Connector
SRPC 1/4 in. x 1/16 in. Tube Outside Diameter D Reducing Port Connector
SRPC 1/4 in. x 1/8 in. Tube Outside Diameter D Reducing Port Connector
SRPC 3/8 in. x 1/8 in. Tube Outside Diameter D Reducing Port Connector
SRPC 3/8 in. x 1/4 in. Tube Outside Diameter D Reducing Port Connector
SRPC 1/2 in. x 1/4 in. Tube Outside Diameter D Reducing Port Connector
SRPC 1/2 in. x 3/8 in. Tube Outside Diameter D Reducing Port Connector
SRPC 3/4 in. x 1/2 in. Tube Outside Diameter D Reducing Port Connector
SRPC 1 in. x 1/2 in. Tube Outside Diameter D Reducing Port Connector
SRPC 1 in. x 1/2 in. Tube Outside Diameter D Reducing Port Connector
