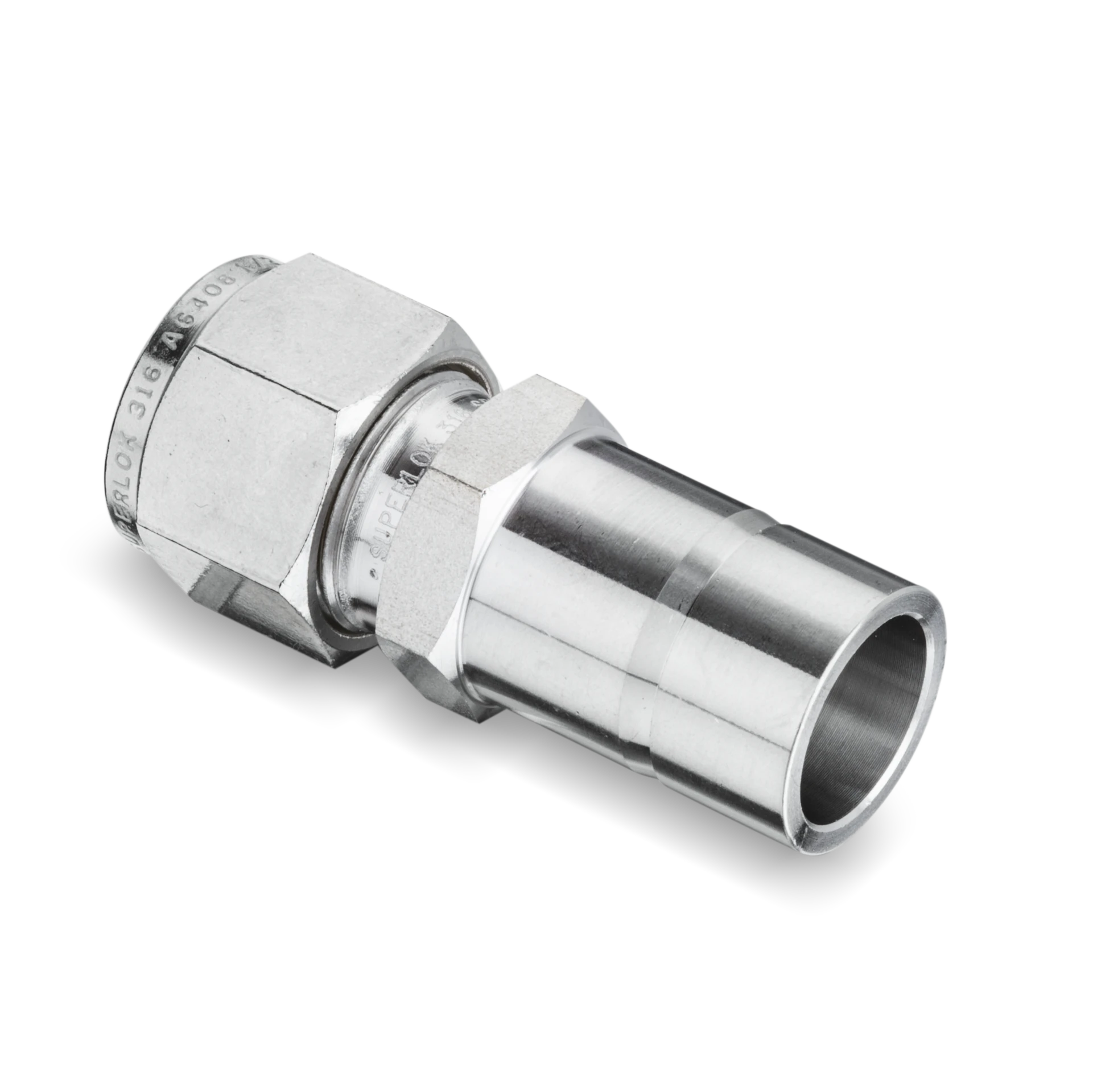

SR Reducers
Reducer fittings connect tubing on one side and the tube stub side mimics piece of tubing which is then inserted into another tube fitting. This fitting allows installers to adapt different sized tubing into a larger or smaller tube fitting. A wide range of sizes accepts many different jumps or reductions of tubing to fitting sizes. Analytical and Gas Measurement boxes utilize these fittings in numerous OEM equipment production.
Downloads
34 Items in SR Reducers
side-scroll to see full table
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| Part# | SR-5-6 | SR 2-1 | SR 2-2 | SR 2-4 | SR 2-4-TM | SR 2-6 | SR 2-8 | SR 4-2 | SR 4-3 | SR 4-4 | SR 4-5 | SR 4-6 | SR 4-8 | SR 4-10 | SR 4-12 | SR 6-4 | SR 6-6 | SR 6-8 | SR 6-10 | SR 6-12 | SR 6M-4 | SR 8-4 | SR 8-6 | SR 8-8 | SR 8-10 | SR 8-12 | SR 8-16 | SR 8M-8 | SR 10-12 | SR 10-14 | SR 10M-8 | SR 12-8 | SR 12-16 | SR 12-16 |
| Information | ||||||||||||||||||||||||||||||||||
| Type |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
Reducer |
| Part Number |
SR-5-6 |
SR 2-1 |
SR 2-2 |
SR 2-4 |
SR 2-4-TM |
SR 2-6 |
SR 2-8 |
SR 4-2 |
SR 4-3 |
SR 4-4 |
SR 4-5 |
SR 4-6 |
SR 4-8 |
SR 4-10 |
SR 4-12 |
SR 6-4 |
SR 6-6 |
SR 6-8 |
SR 6-10 |
SR 6-12 |
SR 6M-4 |
SR 8-4 |
SR 8-6 |
SR 8-8 |
SR 8-10 |
SR 8-12 |
SR 8-16 |
SR 8M-8 |
SR 10-12 |
SR 10-14 |
SR 10M-8 |
SR 12-8 |
SR 12-16 |
SR 12-16 |
| Dimensions | ||||||||||||||||||||||||||||||||||
| Dimension A |
16.25mm |
12.70mm |
12.70mm |
12.70mm |
12.70mm |
12.70mm |
12.70mm |
15.24mm |
15.24mm |
15.24mm |
15.24mm |
15.24mm |
15.24mm |
15.24mm |
15.24mm |
16.76mm |
16.76mm |
16.76mm |
16.76mm |
16.76mm |
15.3mm |
22.86mm |
22.86mm |
22.86mm |
22.86mm |
22.86mm |
22.86mm |
16.2mm |
24.38mm |
24.38mm |
17.2mm |
24.38mm |
24.38mm |
24.38mm |
| Dimension B |
18.54mm |
15.24mm |
15.24mm |
15.24mm |
15.24mm |
15.24mm |
15.24mm |
17.78mm |
17.78mm |
17.78mm |
17.78mm |
17.78mm |
17.78mm |
17.78mm |
17.78mm |
19.30mm |
19.30mm |
19.30mm |
19.30mm |
19.30mm |
17.7mm |
21.84mm |
21.84mm |
21.84mm |
21.84mm |
21.84mm |
21.84mm |
18.6mm |
21.84mm |
21.84mm |
19.5mm |
21.84mm |
21.84mm |
21.84mm |
| Dimension I |
34.54mm |
22.35mm |
26.92mm |
29.46mm |
29.46mm |
30.98mm |
37.59mm |
29.46mm |
30.22mm |
31.75mm |
32.51mm |
33.27mm |
38.86mm |
40.64mm |
41.40mm |
34.03mm |
35.81mm |
41.14mm |
42.92mm |
42.92mm |
38.9mm |
34.79mm |
36.57mm |
42.16mm |
43.68mm |
43.68mm |
50.03mm |
40.1mm |
44.45mm |
45.97mm |
42.2mm |
44.45mm |
52.32mm |
52.32mm |
| Dimension L |
41.91mm |
28.95mm |
33.52mm |
36.06mm |
36.06mm |
37.59mm |
44.19mm |
36.83mm |
37.59mm |
39.11mm |
39.87mm |
40.64mm |
46.22mm |
48.0mm |
47.75mm |
41.40mm |
43.18mm |
48.51mm |
50.29mm |
50.29mm |
46.3mm |
44.95mm |
46.73mm |
52.32mm |
53.84mm |
53.84mm |
60.19mm |
47.6mm |
54.61mm |
56.13mm |
49.8mm |
54.61mm |
62.48mm |
62.48mm |
| Dimension d [Min] |
6.35mm |
2.28mm |
2.28mm |
2.28mm |
2.28mm |
2.28mm |
2.28mm |
4.83mm |
4.83mm |
4.83mm |
4.83mm |
4.83mm |
4.83mm |
4.83mm |
4.83mm |
7.11mm |
7.11mm |
7.11mm |
7.11mm |
7.11mm |
4.8mm |
10.41mm |
10.41mm |
10.41mm |
10.41mm |
10.41mm |
10.41mm |
6.4mm |
12.70mm |
12.70mm |
7.9mm |
15.74mm |
15.74mm |
15.74mm |
| Dimension d1 [Min] |
6.9mm |
0.8mm |
2.1mm |
4.4mm |
4.4mm |
6.9mm |
9.4mm |
2.1mm |
3.0mm |
4.4mm |
5.6mm |
6.9mm |
9.4mm |
12.0mm |
14.8mm |
4.4mm |
6.9mm |
9.4mm |
12.0mm |
14.8mm |
9.4mm |
4.4mm |
6.9mm |
9.4mm |
12.0mm |
14.8mm |
20.4mm |
9.4mm |
14.8mm |
17.0mm |
9.4mm |
9.4mm |
20.4mm |
20.4mm |
| Tube Outside Diameter D |
5/16in
- mm |
1/8in
- mm |
1/8in
- mm |
1/8in
- mm |
1/8in
- mm |
1/8in
- mm |
1/8in
- mm |
1/4in
- mm |
1/4in
- mm |
1/4in
- mm |
1/4in
- mm |
1/4in
- mm |
1/4in
- mm |
1/4in
- mm |
1/4in
- mm |
3/8in
- mm |
3/8in
- mm |
3/8in
- mm |
3/8in
- mm |
3/8in
- mm |
- in
6mm |
1/2in
- mm |
1/2in
- mm |
1/2in
- mm |
1/2in
- mm |
1/2in
- mm |
1/2in
- mm |
- in
8mm |
5/8in
- mm |
5/8in
- mm |
- in
10mm |
3/4in
- mm |
3/4in
- mm |
3/4in
- mm |
| Tube Outside Diameter D1 |
3/8in |
1/16in |
1/8in |
1/4in |
1/4in |
3/8in |
1/2in |
1/8in |
3/16in |
1/4in |
5/16in |
3/8in |
1/2in |
5/8in |
3/4in |
1/4in |
3/8in |
1/2in |
5/8in |
3/4in |
1/2in |
1/4in |
3/8in |
1/2in |
5/8in |
3/4in |
1in |
1/2in |
3/4in |
7/8in |
1/2in |
1/2in |
1in |
1in |
| Width Across Flats H |
5/8in
- mm |
7/16in
- mm |
7/16in
- mm |
7/16in
- mm |
7/16in
- mm |
7/16in
- mm |
7/16in
- mm |
9/16in
- mm |
9/16in
- mm |
9/16in
- mm |
9/16in
- mm |
9/16in
- mm |
9/16in
- mm |
9/16in
- mm |
9/16in
- mm |
11/16in
- mm |
11/16in
- mm |
11/16in
- mm |
11/16in
- mm |
11/16in
- mm |
- in
14mm |
7/8in
- mm |
7/8in
- mm |
7/8in
- mm |
7/8in
- mm |
7/8in
- mm |
7/8in
- mm |
- in
16mm |
1in
- mm |
1in
- mm |
- in
19mm |
1-1/8in
- mm |
1-1/8in
- mm |
1-1/8in
- mm |
| Width Across Flats h |
9/16in
- mm |
7/16in
- mm |
7/16in
- mm |
7/16in
- mm |
7/16in
- mm |
7/16in
- mm |
9/16in
- mm |
1/2in
- mm |
1/2in
- mm |
1/2in
- mm |
1/2in
- mm |
1/2in
- mm |
9/16in
- mm |
11/16in
- mm |
13/16in
- mm |
5/8in
- mm |
5/8in
- mm |
5/8in
- mm |
11/16in
- mm |
13/16in
- mm |
- in
14mm |
13/16in
- mm |
13/16in
- mm |
13/16in
- mm |
13/16in
- mm |
13/16in
- mm |
1-1/16in
- mm |
- in
15mm |
15/16in
- mm |
15/16in
- mm |
- in
18mm |
1-1/16in
- mm |
1-1/16in
- mm |
1-1/16in
- mm |
| Specifications | ||||||||||||||||||||||||||||||||||
| Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Description |
SR 5/16 in. Tube Outside Diameter D x 3/8 in. Tube Stub Reducer |
SR 1/8 in. Tube Outside Diameter D x 1/16 in. Tube Stub Reducer |
SR 1/8 in. Tube Outside Diameter DX 1/8 in. Tube Stub Reducer |
SR 1/8 in. Tube Outside Diameter DX 1/4 in. Tube Stub Reducer |
SR 1/8 in. Tube Outside Diameter D x 1/4 in. Tube Stub Bored Through Reducer |
SR 1/8 in. Tube Outside Diameter DX 3/8 in. Tube Stub Reducer |
SR 1/8 in. Tube Outside Diameter D x 1/2 in. Tube Stub Reducer |
SR 1/4 in. Tube Outside Diameter D x 1/8 in. Tube Stub Reducer |
SR 1/4 in. Tube Outside Diameter D x 3/16 in. Tube Stub Reducer |
SR 1/4 in. Tube Outside Diameter D x 1/4 in. Tube Stub Reducer |
SR 1/4 in. Tube Outside Diameter D x 5/16 in. Tube Stub Reducer |
SR 1/4 in. Tube Outside Diameter D x 3/8 in. Tube Stub Reducer |
SR 1/4 in. Tube Outside Diameter D x 1/2 in. Tube Stub Reducer |
SR 1/4 in. Tube Outside Diameter D x 5/8 in. Tube Stub Reducer |
SR 1/4 in. Tube Outside Diameter D x 3/4 in. Tube Stub Reducer |
SR 3/8 in. Tube Outside Diameter D x 1/4 in. Tube Stub Reducer |
SR 3/8 in. Tube Outside Diameter D x 3/8 in. Tube Stub Reducer |
SR 3/8 in. Tube Outside Diameter D x 1/2 in. Tube Stub Reducer |
SR 3/8 in. Tube Outside Diameter D x 5/8 in. Tube Stub Reducer |
SR 3/8 in. Tube Outside Diameter D x 3/4 in. Tube Stub Reducer |
SR 6 mm Tube Outside Diameter D x 1/4 in. Tube Stub Reducer |
SR 1/2 in. Tube Outside Diameter D x 1/4 in. Tube Stub Reducer |
SR 1/2 in. Tube Outside Diameter D x 3/8 in. Tube Stub Reducer |
SR 1/2 in. Tube Outside Diameter D x 1/2 in. Tube Stub Reducer |
SR 1/2 in. Tube Outside Diameter D x 5/8 in. Tube Stub Reducer |
SR 1/2 in. Tube Outside Diameter D x 3/4 in. Tube Stub Reducer |
SR 1/2 in. Tube Outside Diameter D x 1 in. Tube Stub Reducer |
SR 8 mm Tube Outside Diameter DX 1/2 in. Tube Stub Reducer |
SR 5/8 in. Tube Outside Diameter D x 3/4 in. Tube Stub Reducer |
SR 5/8 in. Tube Outside Diameter D x 7/8 in. Tube Stub Reducer |
SR 10 mm Tube Outside Diameter DX 1/2 in. Tube Stub Reducer |
SR 3/4 in. Tube Outside Diameter D x 1/2 in. Tube Stub Reducer |
SR 3/4 in. Tube Outside Diameter D x 1 in. Tube Stub Reducer |
SR 3/4 in. Tube Outside Diameter D x 1 in. Tube Stub Reducer |
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Metric |
Inch |
Inch |
Metric |
Inch |
Inch |
Inch |
