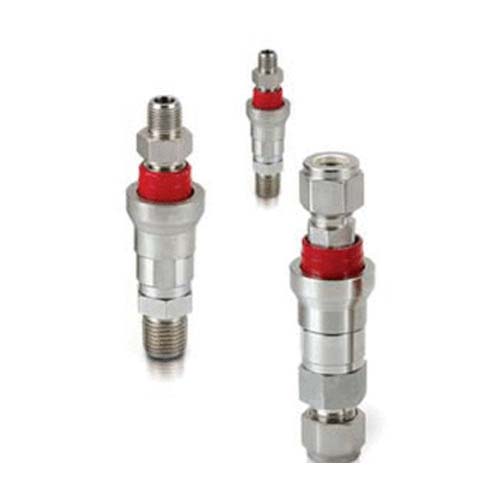

SQC Quick Connect Bodies

Simple push-pull action to connect and disconnect lines-no tools required. Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.

Downloads

SQC Quick Connect Bodies, Body Protectors and SQC (DESO)/SQC (SESO) Quick Connect Stems

Request a Quote

Call Us (805) 658-2043

SQC Quick Connect Bodies

SQC Quick Connect Bodies - 2

12 Items in SQC Quick Connect Bodies

	Item #	Item Name
	SQC1B-F2N SQC 1/8 in. x 1/8 in. Female National Pipe Taper (FNPT) Quick Connect Body	SQC 1/8 in. x 1/8 in. Female National Pipe Taper (FNPT) Quick Connect Body
	SQC1B-F4N SQC 1/4 in. x 1/4 in. Female National Pipe Taper (FNPT) Quick Connect Body	SQC 1/4 in. x 1/4 in. Female National Pipe Taper (FNPT) Quick Connect Body
	SQC1B-M2N SQC 1/8 in. x 1/8 in. Male National Pipe Taper (MNPT) Quick Connect Body	SQC 1/8 in. x 1/8 in. Male National Pipe Taper (MNPT) Quick Connect Body
	SQC1B-M4N SQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Quick Connect Body	SQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Quick Connect Body
	SQC1B-S4 SQC 1/4 in. x 1/4 in. Tube Outside Diameter Quick Connect Body	SQC 1/4 in. x 1/4 in. Tube Outside Diameter Quick Connect Body
	SQC2B-F6N SQC 3/8 in. x 3/8 in. Female National Pipe Taper (FNPT) Quick Connect Body	SQC 3/8 in. x 3/8 in. Female National Pipe Taper (FNPT) Quick Connect Body
	SQC2B-M4N SQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Quick Connect Body	SQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Quick Connect Body
	SQC2B-M6N SQC 3/8 in. x 3/8 in. Male National Pipe Taper (MNPT) Quick Connect Body	SQC 3/8 in. x 3/8 in. Male National Pipe Taper (MNPT) Quick Connect Body
	SQC2B-S6 SQC 3/8 in. x 3/8 in. Tube Outside Diameter Quick Connect Body	SQC 3/8 in. x 3/8 in. Tube Outside Diameter Quick Connect Body
	SQC3B-F8N SQC 1/2 in. x 1/2 in. Female National Pipe Taper (FNPT) Quick Connect Body	SQC 1/2 in. x 1/2 in. Female National Pipe Taper (FNPT) Quick Connect Body
	SQC3B-M8N SQC 1/2 in. x 1/2 in. Male National Pipe Taper (MNPT) Quick Connect Body	SQC 1/2 in. x 1/2 in. Male National Pipe Taper (MNPT) Quick Connect Body
	SQC3B-S8 SQC 1/2 in. x 1/2 in. Tube Outside Diameter Quick Connect Body	SQC 1/2 in. x 1/2 in. Tube Outside Diameter Quick Connect Body

side-scroll to see full table

Information

Part#	SQC1B-F2N	SQC1B-F4N	SQC1B-M2N	SQC1B-M4N	SQC1B-S4	SQC2B-F6N	SQC2B-M4N	SQC2B-M6N	SQC2B-S6	SQC3B-F8N	SQC3B-M8N	SQC3B-M8N
Type	Connect Body	Connect Body	Connect Body	Connect Body	Connect Body	Connect Body	Connect Body	Connect Body	Connect Body	Connect Body	Connect Body	Connect Body
Part Number	SQC1B-F2N	SQC1B-F4N	SQC1B-M2N	SQC1B-M4N	SQC1B-S4	SQC2B-F6N	SQC2B-M4N	SQC2B-M6N	SQC2B-S6	SQC3B-F8N	SQC3B-M8N	SQC3B-M8N
Dimensions
Dimension B	56.9mm	61.5mm	51.1mm	56.9mm	58.4mm	65.3mm	60.5mm	60.5mm	65.5mm	81.8mm	75.4mm	75.4mm
Dimension H	23.1mm	23.1mm	23.1mm	23.1mm	23.1mm	26.2mm	26.2mm	26.2mm	26.2mm	30.7mm	30.7mm	30.7mm
End Size	44204in	44200in	44204in	44200in	44200in	44263in	44200in	44263in	44263in	44198in	44198in	44198in
Flow [Max]	4gpm 15L/min	4gpm 15L/min	4gpm 15L/min	4gpm 15L/min	4gpm 15L/min	6gpm 22L/min	6gpm 22L/min	6gpm 22L/min	6gpm 22L/min	10gpm 37L/min	10gpm 37L/min	10gpm 37L/min
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature	17.2bar 250psig	17.2bar 250psig	17.2bar 250psig	17.2bar 250psig	17.2bar 250psig	17.2bar 250psig	17.2bar 250psig	17.2bar 250psig	17.2bar 250psig	17.2bar 250psig	17.2bar 250psig	17.2bar 250psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	103bar 1500psig	103bar 1500psig	103bar 1500psig	103bar 1500psig	51.6bar 750psig	51.6bar 750psig	51.6bar 750psig
Spillage	0.3cm³	0.3cm³	0.3cm³	0.3cm³	0.3cm³	1.0cm³	1.0cm³	1.0cm³	1.0cm³	3.0cm³	3.0cm³	3.0cm³
Specifications
Inch/Metric	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch
Material	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass	316 Stainless Steel, Brass
Description	SQC 1/8 in. x 1/8 in. Female National Pipe Taper (FNPT) Quick Connect Body	SQC 1/4 in. x 1/4 in. Female National Pipe Taper (FNPT) Quick Connect Body	SQC 1/8 in. x 1/8 in. Male National Pipe Taper (MNPT) Quick Connect Body	SQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Quick Connect Body	SQC 1/4 in. x 1/4 in. Tube Outside Diameter Quick Connect Body	SQC 3/8 in. x 3/8 in. Female National Pipe Taper (FNPT) Quick Connect Body	SQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Quick Connect Body	SQC 3/8 in. x 3/8 in. Male National Pipe Taper (MNPT) Quick Connect Body	SQC 3/8 in. x 3/8 in. Tube Outside Diameter Quick Connect Body	SQC 1/2 in. x 1/2 in. Female National Pipe Taper (FNPT) Quick Connect Body	SQC 1/2 in. x 1/2 in. Male National Pipe Taper (MNPT) Quick Connect Body	SQC 1/2 in. x 1/2 in. Male National Pipe Taper (MNPT) Quick Connect Body
End Type	Female National Pipe Thread (FNPT)	Female National Pipe Thread (FNPT) Pipe Taper (PT)	Male National Pipe Thread (NPT)	Male National Pipe Thread (MNPT) Pipe Taper (PT)	-	Female National Pipe Thread (FNPT) Pipe Taper (PT)	Male National Pipe Thread (MNPT)	Male National Pipe Thread (MNPT) Pipe Taper (PT)	-	Female National Pipe Thread (FNPT) Pipe Taper (PT)	Male National Pipe Thread (MNPT) Pipe Taper (PT)	Male National Pipe Thread (MNPT) Pipe Taper (PT)
