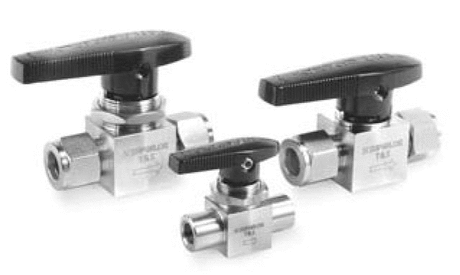

SPV Plug Valves

Pressure Rating up to 3000 psig (206 bar) at 100 ºF (37 ºC) Temperature rating -10 ºF to 400 ºF (-23 ºC to 204 ºC) Simple design with one piece body 316 stainless steel body materials

Downloads

Data Sheet for SPV Plug Valves

Request a Quote

Call Us (805) 658-2043

9 Items in SPV Plug Valves

	Item #	Item Name
	SPV131-F-4N SPV 1/4 in. Female National Pipe Taper (FNPT) Thread, 3000 psi Pressure Rating Inlet Plug Valve	SPV 1/4 in. Female National Pipe Taper (FNPT) Thread, 3000 psi Pressure Rating Inlet Plug Valve
	SPV131-M-4N SPV 1/4 in. Male National Pipe Taper (MNPT) Thread, 3000 psi Pressure Rating Inlet Plug Valve	SPV 1/4 in. Male National Pipe Taper (MNPT) Thread, 3000 psi Pressure Rating Inlet Plug Valve
	SPV131-MF-4N SPV 1/4 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread, 3000 psi Pressure Rating Inlet Plug Valve	SPV 1/4 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread, 3000 psi Pressure Rating Inlet Plug Valve
	SPV131-S-2 SPV 1/8 in. Tube Outside Diameter D, 3000 psi Pressure Rating Inlet Plug Valve	SPV 1/8 in. Tube Outside Diameter D, 3000 psi Pressure Rating Inlet Plug Valve
	SPV131-S-4 SPV 1/4 in. Tube Outside Diameter D, 3000 psi Pressure Rating Inlet Plug Valve	SPV 1/4 in. Tube Outside Diameter D, 3000 psi Pressure Rating Inlet Plug Valve
	SPV132-F-6N SPV 3/8 in. Female National Pipe Taper (FNPT) Thread, 3000 psi Pressure Rating Inlet Plug Valve	SPV 3/8 in. Female National Pipe Taper (FNPT) Thread, 3000 psi Pressure Rating Inlet Plug Valve
	SPV132-F-8N SPV 1/2 in. Female National Pipe Taper (FNPT) Thread, 3000 psi Pressure Rating Inlet Plug Valve	SPV 1/2 in. Female National Pipe Taper (FNPT) Thread, 3000 psi Pressure Rating Inlet Plug Valve
	SPV132-S-6 SPV 3/8 in. Tube Outside Diameter D, 3000 psi Pressure Rating Inlet Plug Valve	SPV 3/8 in. Tube Outside Diameter D, 3000 psi Pressure Rating Inlet Plug Valve
	SPV132-S-8 SPV 1/2 in. Tube Outside Diameter D, 3000 psi Pressure Rating Inlet Plug Valve	SPV 1/2 in. Tube Outside Diameter D, 3000 psi Pressure Rating Inlet Plug Valve

side-scroll to see full table

Information

Part#	SPV131-F-4N	SPV131-M-4N	SPV131-MF-4N	SPV131-S-2	SPV131-S-4	SPV132-F-6N	SPV132-F-8N	SPV132-S-6	SPV132-S-6
Type	Plug Valve	Plug Valve	Plug Valve	Plug Valve	Plug Valve	Plug Valve	Plug Valve	Plug Valve	Plug Valve
Part Number	SPV131-F-4N	SPV131-M-4N	SPV131-MF-4N	SPV131-S-2	SPV131-S-4	-	SPV132-F-6N	SPV132-S-6	SPV132-S-6
Dimensions
Dimension A	53.1mm	48.4mm	50.8mm	50.5mm	55.1mm	-	-	67.6mm	67.6mm
Dimension B	26.6mm	24.2mm	24.2mm	25.3mm	27.6mm	-	-	33.8mm	33.8mm
Dimension B1	26.6mm	24.2mm	26.2mm	25.3mm	27.6mm	-	-	33.8mm	33.8mm
Dimension C	9.5mm	9.5mm	9.5mm	9.5mm	9.5mm	-	-	14.0mm	14.0mm
Dimension D	9.5mm	9.5mm	9.5mm	9.5mm	9.5mm	-	-	14.0mm	14.0mm
Dimension E	20.0mm	20.0mm	20.0mm	20.0mm	20.0mm	-	-	30mm	30mm
Dimension F	27.9mm	27.9mm	27.9mm	27.9mm	27.9mm	-	-	41.6mm	41.6mm
Dimension F1	35.5mm	35.5mm	35.5mm	35.5mm	35.5mm	-	-	53.2mm	53.2mm
Dimension G	28.9mm	28.9mm	28.9mm	28.9mm	28.9mm	-	-	51.7mm	51.7mm
Dimension H	6.4mm	6.4mm	6.4mm	6.4mm	6.4mm	-	-	9.4mm	9.4mm
End Size	44200mm	44200mm	44200mm	44204mm	44200mm	-	-	44263mm	44263mm
End Size 2	44200mm	44200mm	44200mm	44204mm	44200mm	-	-	44263mm	44263mm
Operating Temperature [Max]	204ºC 400ºF	204ºC 400ºF	204ºC 400ºF	204ºC 400ºF	204ºC 400ºF	204ºC 400ºF	204ºC 400ºF	204ºC 400ºF	204ºC 400ºF
Operating Temperature [Min]	-23ºC -10ºF	-23ºC -10ºF	-23ºC -10ºF	-23ºC -10ºF	-23ºC -10ºF	-23ºC -10ºF	-23ºC -10ºF	-23ºC -10ºF	-23ºC -10ºF
Orifice	4.4mm	4.4mm	4.4mm	2.3mm	4.4mm	-	-	7.2mm	7.2mm
Pressure Rating Stainless Steel at 250 (121 ºC) Temperature	137bar 2000psig	137bar 2000psig	137bar 2000psig	137bar 2000psig	137bar 2000psig	137bar 2000psig	137bar 2000psig	137bar 2000psig	137bar 2000psig
Pressure Rating Stainless Steel at 300 (148 ºC) Temperature	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig
Pressure Rating Stainless Steel at 350 (176 ºC) Temperature	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig
Pressure Rating Stainless Steel at 400 (204 ºC) Temperature	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig	68.9bar 1000psig
Temperature	-53 to 37,93,121,148,176,204ºC -65 to 100,200,250,300,350,400ºF	-53 to 37,93,121,148,176,204ºC -65 to 100,200,250,300,350,400ºF	-53 to 37,93,121,148,176,204ºC -65 to 100,200,250,300,350,400ºF	-53 to 37,93,121,148,176,204ºC -65 to 100,200,250,300,350,400ºF	-53 to 37,93,121,148,176,204ºC -65 to 100,200,250,300,350,400ºF	-53 to 37,93,121,148,176,204ºC -65 to 100,200,250,300,350,400ºF	-53 to 37,93,121,148,176,204ºC -65 to 100,200,250,300,350,400ºF	-53 to 37,93,121,148,176,204ºC -65 to 100,200,250,300,350,400ºF	-53 to 37,93,121,148,176,204ºC -65 to 100,200,250,300,350,400ºF
Working Pressure at 200 (93 ºC) Temperature	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig
Working Pressure at 65 (-53 ºC) to 100 (37 ºC) Temperature	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig
Specifications
Body Material	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Inch/Metric	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch
Series	SVP	SVP	SVP	SVP	SVP	SVP	SVP	SVP	SVP
Cv Coefficient	0.9	1	0.9	0.1	1.6	-	2.7	6.4	6.4
Description	SPV 1/4 in. Female National Pipe Taper (FNPT) Thread, 3000 psi Pressure Rating Inlet Plug Valve	SPV 1/4 in. Male National Pipe Taper (MNPT) Thread, 3000 psi Pressure Rating Inlet Plug Valve	SPV 1/4 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread, 3000 psi Pressure Rating Inlet Plug Valve	SPV 1/8 in. Tube Outside Diameter D, 3000 psi Pressure Rating Inlet Plug Valve	SPV 1/4 in. Tube Outside Diameter D, 3000 psi Pressure Rating Inlet Plug Valve	-	SPV 3/8 in. Female National Pipe Taper (FNPT) Thread, 3000 psi Pressure Rating Inlet Plug Valve	SPV 3/8 in. Tube Outside Diameter D, 3000 psi Pressure Rating Inlet Plug Valve	SPV 3/8 in. Tube Outside Diameter D, 3000 psi Pressure Rating Inlet Plug Valve
End Type	Female National Pipe Thread (FNPT)	Male National Pipe Thread (MNPT)	Male National Pipe Thread (MNPT)	-	-	-	Female National Pipe Thread (FNPT)	-	-
End Type 2	Female National Pipe Thread (FNPT)	Male National Pipe Thread (MNPT)	Female National Pipe Thread (FNPT)	-	-	-	Female National Pipe Thread (FNPT)	-	-
