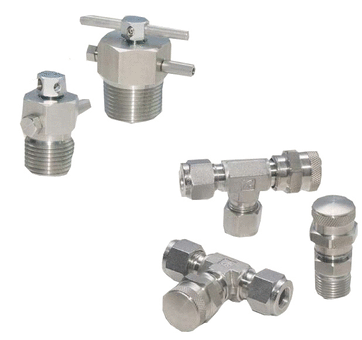

SPUV Purge Valves
Compact for convenient installation. Vent hole bleeds excess liquid or gas from system lines. Cap is crimped to valve body to prevent accidental disassembly. Variety of end connections; Superlok® tube fittings, NPT and ISO threads.
Downloads
3 Items in SPUV Purge Valves
side-scroll to see full table
 |
|
| |
| Part# | SPUV-M-4N | SPUV-S-6-UT | SPUV-S-6-UT |
| Information | |||
| Type |
Valve |
Valve |
Valve |
| Part Number |
SPUV-M-4N |
SPUV-S-6-UT |
SPUV-S-6-UT |
| Dimensions | |||
| Dimension A |
0.56in
14.2mm |
2.40in
61.0mm |
2.40in
61.0mm |
| Dimension H |
- in
- mm |
0.63in
15.9mm |
0.63in
15.9mm |
| Dimension L |
1.81in
46.0mm |
1.49in
38.0mm |
1.49in
38.0mm |
| End Size |
44200mm |
44263mm |
44263mm |
| Pressure Rating 316 Stainless Steel at -65 (-53 ºC) to 100 (37 ºC) |
275bar |
275bar |
275bar |
| Pressure Rating at 100ºF (38ºC ) |
27bar
4000psig |
27bar
4000psig |
27bar
4000psig |
| Temperature Rating |
-65 to 600ºC
-54 to 315ºF |
-65 to 600ºC
-54 to 315ºF |
-65 to 600ºC
-54 to 315ºF |
| Working Pressure at -65 (-53 ºC) to 100 º F(37 ºC) Temperature |
4000psig |
4000psig |
4000psig |
| Working Pressure at 150 (65 ºC) Temperature |
256bar
3720psig |
256bar
3720psig |
256bar
3720psig |
| Working Pressure at 200 (93 ºC) Temperature |
337bar
3440psig |
337bar
3440psig |
337bar
3440psig |
| Working Pressure at 300 (148 ºC) Temperature |
213bar
3105psig |
213bar
3105psig |
213bar
3105psig |
| Working Pressure at 350 (176 ºC) Temperature |
2975psig |
2975psig |
2975psig |
| Working Pressure at 350(176 ºC) Temperature |
204bar |
204bar |
204bar |
| Working Pressure at 400 (204 ºC) Temperature |
196bar
850psig |
196bar
850psig |
196bar
850psig |
| Working Pressure at 450 (232 ºC) Temperature |
189bar
2750psig |
189bar
2750psig |
189bar
2750psig |
| Working Pressure at 500 (260 ºC) Temperature |
182bar
2650psig |
182bar
2650psig |
182bar
2650psig |
| Working Pressure at 600 (315 ºC) Temperature |
172bar
2500psig |
172bar
2500psig |
172bar
2500psig |
| Specifications | |||
| Body Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Inch/Metric |
Inch |
Inch |
Inch |
| Description |
SPUV 1/4 in. Male National Pipe Taper (MNPT) Inlet Purge Valve |
SPUV 3/8 in. Outside Diameter, 6000 psi Pressure Rating T-Type Inlet Purge Valve |
SPUV 3/8 in. Outside Diameter, 6000 psi Pressure Rating T-Type Inlet Purge Valve |
| End Type |
Male National Pipe Thread (MNPT) |
Female National Pipe Thread (FNPT) |
Female National Pipe Thread (FNPT) |
