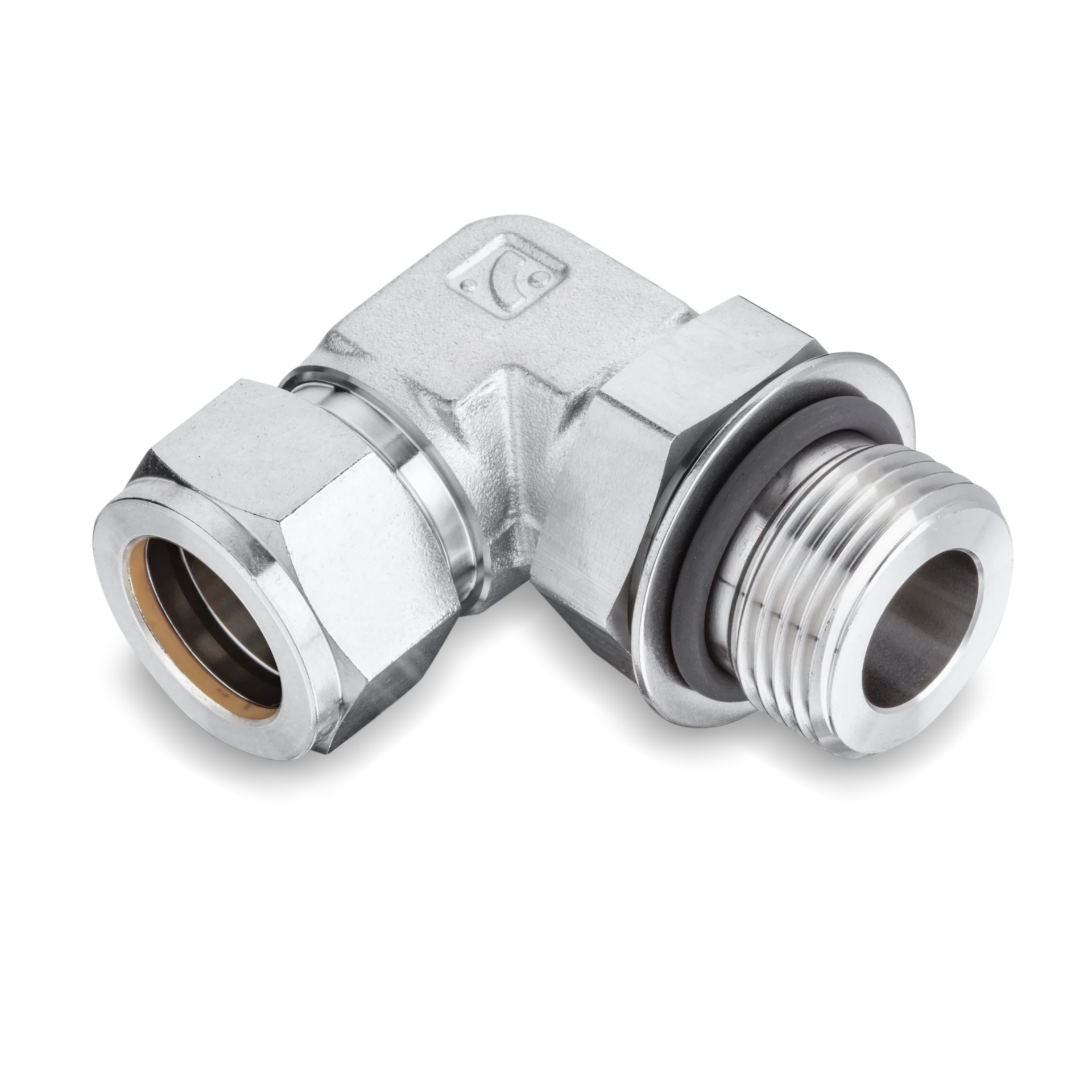

SPME Positionable 90 Degree Male Elbows

Alternative fuel vehicles and fueling stations use these fittings in a multitude of their systems due to the fittings ability to be accurately positioned in a desired direction. Positionable male elbows hold up in harsh applications such as hydrogen, CNG, Propane, and other alternative fuels applications. One end of this 90-degree fitting is comprised of a compression tube fitting. The other side is offered in Male British Standard Parallel Pipe (MBSPP) Thread or Society of Automotive Engineering (SAE) Thread.

Downloads

Data Sheet for SPME Positionable 90 Degree Male Elbows

Request a Quote

Call Us (805) 658-2043

SPME Positionable 90 Degree Male Elbows - 2

13 Items in SPME Positionable 90 Degree Male Elbows

	Item #	Item Name
	SPME 4-2G SPME 1/4 in. Tube Outside Diameter D x 1/8 in. Male British Standard Parallel Pipe (MBSPP) Thread T 90 Degree Positionable Male Elbow	SPME 1/4 in. Tube Outside Diameter D x 1/8 in. Male British Standard Parallel Pipe (MBSPP) Thread T 90 Degree Positionable Male Elbow
	SPME 4-4G SPME 1/4 in. Tube Outside Diameter D x 1/4 in. Male British Standard Parallel Pipe (MBSPP) Thread T 90 Degree Positionable Male Elbow	SPME 1/4 in. Tube Outside Diameter D x 1/4 in. Male British Standard Parallel Pipe (MBSPP) Thread T 90 Degree Positionable Male Elbow
	SPME 4-4U SPME 1/4 in. Tube Outside Diameter D x 7/16-20 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow	SPME 1/4 in. Tube Outside Diameter D x 7/16-20 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow
	SPME 4-6U SPME 1/4 in. Tube Outside Diameter D x 9/16-18 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow	SPME 1/4 in. Tube Outside Diameter D x 9/16-18 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow
	SPME 6-4G SPME 3/8 in. Tube Outside Diameter D x 1/4 in. Male British Standard Parallel Pipe (MBSPP) Thread T 90 Degree Positionable Male Elbow	SPME 3/8 in. Tube Outside Diameter D x 1/4 in. Male British Standard Parallel Pipe (MBSPP) Thread T 90 Degree Positionable Male Elbow
	SPME 6-6U SPME 3/8 in. Tube Outside Diameter D x 9/16-18 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow	SPME 3/8 in. Tube Outside Diameter D x 9/16-18 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow
	SPME 6-8U SPME 3/8 in. Tube Outside Diameter D x 3/4-16 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow	SPME 3/8 in. Tube Outside Diameter D x 3/4-16 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow
	SPME 8-4G SPME 1/2 in. Tube Outside Diameter D x 1/4 in. Male British Standard Parallel Pipe (MBSPP) Thread T 90 Degree Positionable Male Elbow	SPME 1/2 in. Tube Outside Diameter D x 1/4 in. Male British Standard Parallel Pipe (MBSPP) Thread T 90 Degree Positionable Male Elbow
	SPME 8-8U SPME 1/2 in. Tube Outside Diameter D x 3/4-16 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow	SPME 1/2 in. Tube Outside Diameter D x 3/4-16 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow
	SPME 10-10U SPME 5/8 in. Tube Outside Diameter D x 7/8-14 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow	SPME 5/8 in. Tube Outside Diameter D x 7/8-14 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow
	SPME 12-12U SPME 3/4 in. Tube Outside Diameter D x 1-1/16-12 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow	SPME 3/4 in. Tube Outside Diameter D x 1-1/16-12 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow
	SPME 16-16U SPME 1 in. Tube Outside Diameter D x 1-5/16-12 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow	SPME 1 in. Tube Outside Diameter D x 1-5/16-12 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow
	SPME 20-20U SPME 1-1/4 in. Tube Outside Diameter D x 1-5/8-12 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow	SPME 1-1/4 in. Tube Outside Diameter D x 1-5/8-12 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow

side-scroll to see full table

Information

Part#	SPME 4-2G	SPME 4-4G	SPME 4-4U	SPME 4-6U	SPME 6-4G	SPME 6-6U	SPME 6-8U	SPME 8-4G	SPME 8-8U	SPME 10-10U	SPME 12-12U	SPME 16-16U	SPME 16-16U
Type	Positionable Male Elbows	Positionable Male Elbows	Positionable Male Elbows	Positionable Male Elbows	Positionable Male Elbows	Positionable Male Elbows	Positionable Male Elbows	Positionable Male Elbows	Positionable Male Elbows	Positionable Male Elbows	Positionable Male Elbows	Positionable Male Elbows	Positionable Male Elbows
Part Number	SPME 4-2G	SPME 4-4G	SPME 4-4U	SPME 4-6U	SPME 6-4G	SPME 6-6U	SPME 6-8U	SPME 8-4G	SPME 8-8U	SPME 10-10U	SPME 12-12U	SPME 16-16U	SPME 16-16U
Dimensions
Angle	90º	90º	90º	90º	90º	90º	90º	90º	90º	90º	90º	90º	90º
Dimension A	15.24mm	15.24mm	15.24mm	15.24mm	16.76mm	16.76mm	16.76mm	22.86mm	22.86mm	24.38mm	24.38mm	31.24mm	31.24mm
Dimension B	17.78mm	17.78mm	17.78mm	17.78mm	19.30mm	19.30mm	19.30mm	21.84mm	21.84mm	21.84mm	21.84mm	26.42mm	26.42mm
Dimension C	17.27mm	22.86mm	16.51mm	20.07mm	22.86mm	20.07mm	25.65mm	26.42mm	25.65mm	29.46mm	36.58mm	43.94mm	43.94mm
Dimension I	19.56mm	21.59mm	21.08mm	23.11mm	23.60mm	24.64mm	27.43mm	25.91mm	27.43mm	27.90mm	29.7mm	36.80mm	36.80mm
Dimension L	26.92mm	28.96mm	28.45mm	30.48mm	30.48mm	32.00mm	34.80mm	36.07mm	37.59mm	39.62mm	41.40mm	50.55mm	50.55mm
Dimension L1	26.42mm	32.26mm	28.45mm	32.26mm	32.26mm	32.26mm	37.85mm	35.05mm	37.85mm	43.43mm	48.77mm	53.59mm	53.59mm
Dimension d [Min]	4.06mm	4.83mm	4.83mm	4.83mm	5.84mm	7.11mm	7.11mm	5.84mm	10.41mm	12.70mm	15.75mm	22.35mm	22.35mm
Tube Outside Diameter D	1/4in	1/4in	1/4in	1/4in	3/8in	3/8in	3/8in	1/2in	1/2in	5/8in	3/4in	1in	1in
Width Across Flats H	9/16in	9/16in	9/16in	9/16in	11/16in	11/16in	11/16in	7/8in	7/8in	1in	1-1/8in	1-1/2in	1-1/2in
Width Across Flats h1	9/16in	3/4in	9/16in	11/16in	3/4in	11/16in	7/8in	3/4in	7/8in	1in	1-1/4in	1-1/2in	1-1/2in
Width Across Flats h2	9/16in	9/16in	9/16in	9/16in	11/16in	11/16in	11/16in	7/8in	7/8in	1in	1-1/8in	1-1/2in	1-1/2in
Specifications
Inch/Metric	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch
Material	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Description	SPME 1/4 in. Tube Outside Diameter D x 1/8 in. Male British Standard Parallel Pipe (MBSPP) Thread T 90 Degree Positionable Male Elbow	SPME 1/4 in. Tube Outside Diameter D x 1/4 in. Male British Standard Parallel Pipe (MBSPP) Thread T 90 Degree Positionable Male Elbow	SPME 1/4 in. Tube Outside Diameter D x 7/16-20 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow	SPME 1/4 in. Tube Outside Diameter D x 9/16-18 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow	SPME 3/8 in. Tube Outside Diameter D x 1/4 in. Male British Standard Parallel Pipe (MBSPP) Thread T 90 Degree Positionable Male Elbow	SPME 3/8 in. Tube Outside Diameter D x 9/16-18 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow	SPME 3/8 in. Tube Outside Diameter D x 3/4-16 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow	SPME 1/2 in. Tube Outside Diameter D x 1/4 in. Male British Standard Parallel Pipe (MBSPP) Thread T 90 Degree Positionable Male Elbow	SPME 1/2 in. Tube Outside Diameter D x 3/4-16 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow	SPME 5/8 in. Tube Outside Diameter D x 7/8-14 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow	SPME 3/4 in. Tube Outside Diameter D x 1-1/16-12 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow	SPME 1 in. Tube Outside Diameter D x 1-5/16-12 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow	SPME 1 in. Tube Outside Diameter D x 1-5/16-12 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow
End Size	- 44204in	- 44200in	44028 - in	43359 - in	- 44200in	43359 - in	42433 - in	- 44200in	42433 - in	41828 - in	1-1/16-12 - in	1-5/16-12 - in	1-5/16-12 - in
End Type	International Standardization of Organization (ISO) Parallel Thread (U)	International Standardization of Organization (ISO) Parallel Thread (U)	Society of Automotive Engineering (SAE)/MS Straight Thread	Society of Automotive Engineering (SAE)/MS Straight Thread	International Standardization of Organization (ISO) Parallel Thread (U)	Society of Automotive Engineering (SAE)/MS Straight Thread	Society of Automotive Engineering (SAE)/MS Straight Thread	International Standardization of Organization (ISO) Parallel Thread (U)	Society of Automotive Engineering (SAE)/MS Straight Thread	Society of Automotive Engineering (SAE)/MS Straight Thread	Society of Automotive Engineering (SAE)/MS Straight Thread	Society of Automotive Engineering (SAE)/MS Straight Thread	Society of Automotive Engineering (SAE)/MS Straight Thread
