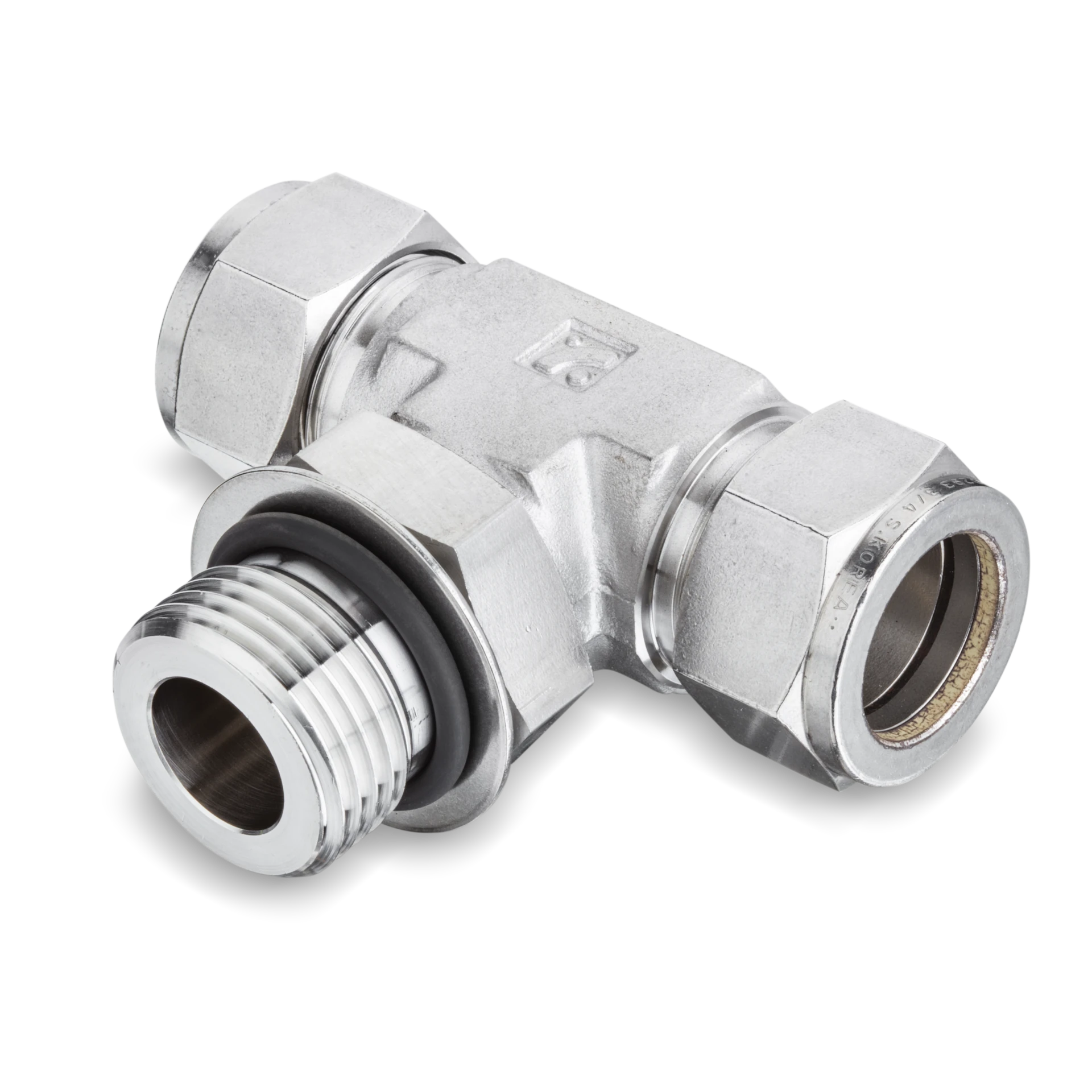

SPMBT Positionable Male Branch Tees
5 Items in SPMBT Positionable Male Branch Tees
side-scroll to see full table
 |
|
|
|
| |
| Part# | SPMBT 4-4G | SPMBT 6-6U | SPMBT 8-8U | SPMBT 12-12U | SPMBT 12-12U |
| Information | |||||
| Type |
Male Tee |
Male Tee |
Male Tee |
Male Tee |
Male Tee |
| Part Number |
SPMBT 4-4G |
SPMBT 6-6U |
SPMBT 8-8U |
SPMBT 12-12U |
SPMBT 12-12U |
| Dimensions | |||||
| Dimension A |
15.24mm |
16.76mm |
22.86mm |
24.38mm |
24.38mm |
| Dimension B |
17.78mm |
19.30mm |
21.84mm |
21.84mm |
21.84mm |
| Dimension C |
22.86mm |
20.07mm |
25.65mm |
36.58mm |
36.58mm |
| Dimension I |
21.59mm |
24.64mm |
27.43mm |
31.24mm |
31.24mm |
| Dimension L |
28.96mm |
32.00mm |
37.59mm |
41.40mm |
41.40mm |
| Dimension L1 |
32.26mm |
32.26mm |
37.85mm |
48.77mm |
48.77mm |
| Dimension d [Min] |
4.83mm |
7.11mm |
10.41mm |
15.75mm |
15.75mm |
| End Size |
44200in |
43359in |
42433in |
1-1/16-12in |
1-1/16-12in |
| Tube Outside Diameter D |
1/4in
- mm |
- in
3/8mm |
- in
1/2mm |
- in
3/4mm |
- in
3/4mm |
| Width Across Flats H |
9/16in
- mm |
- in
11/16mm |
- in
7/8mm |
- in
1-1/8mm |
- in
1-1/8mm |
| Width Across Flats h1 |
5/8in |
5/8in |
13/16in |
1-1/16in |
1-1/16in |
| Width Across Flats h2 |
3/4in |
11/16in |
7/8in |
1-1/4in |
1-1/4in |
| Specifications | |||||
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
| Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Description |
SPMBT 1/4 in. Tube Outside Diameter D x 1/4 Male British Standard Parallel Pipe (MBSPP) Straight Thread Positionable Male Branch Tee with O-Ring |
SPMBT 3/8 in. Tube Outside Diameter D x 9/16-18 Society of Automotive Engineering (SAE) Straight Thread Positionable Male Branch Tee with O-Ring |
SPMBT 1/2 in. Tube Outside Diameter D x 3/4-16 Society of Automotive Engineering (SAE) Straight Thread Positionable Male Branch Tee with O-Ring |
SPMBT 3/4 in. Tube Outside Diameter D x 1-1/16-12 Society of Automotive Engineering (SAE) Straight Thread Positionable Male Branch Tee with O-Ring |
SPMBT 3/4 in. Tube Outside Diameter D x 1-1/16-12 Society of Automotive Engineering (SAE) Straight Thread Positionable Male Branch Tee with O-Ring |
| End Type |
International Standardization of Organization (ISO) Parallel Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
Society of Automotive Engineering (SAE)/MS Straight Thread |
| Industry Standards/Certifications |
JIS B0202(PF), International Standardization of Organization (ISO) 228/1, BSPP |
- |
- |
- |
- |
