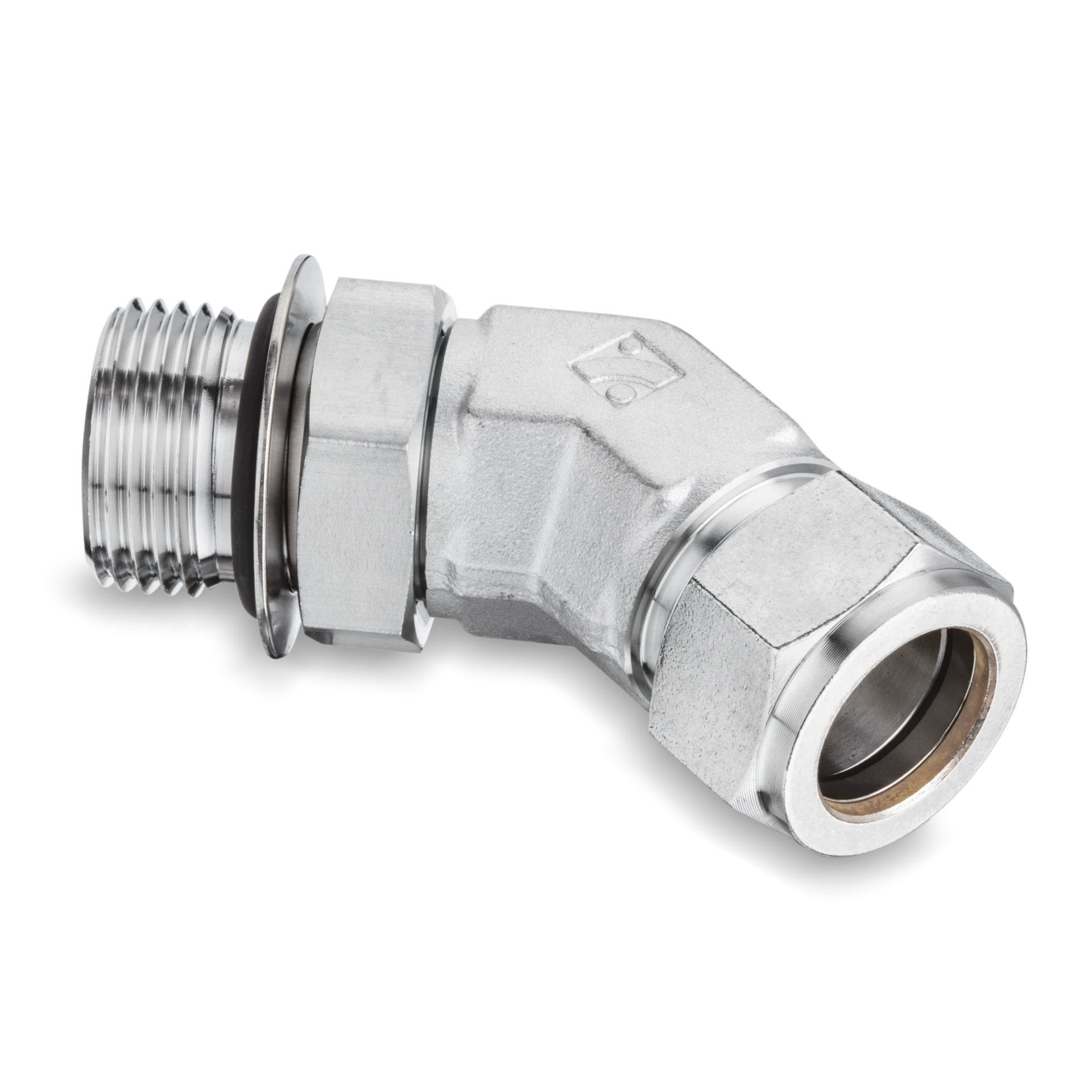

SPHME Positionable 45 Degree Male Elbows
This 45-degree fitting is an automative industry favorite. CNG, Natural GAS and Alternative fuel vehicles utilize this fitting due to the ability to position the fitting in the exact direction of the desired tubing run. Widely tested in vibration applications, these fittings hold up in the most punishing on road environments.
1 Items in SPHME Positionable 45 Degree Male Elbows
side-scroll to see full table
 | |
| Part# | SPHME 6-6U |
| Information | |
| Part Number |
SPHME 6-6U |
| Type |
Positionable Male Elbows |

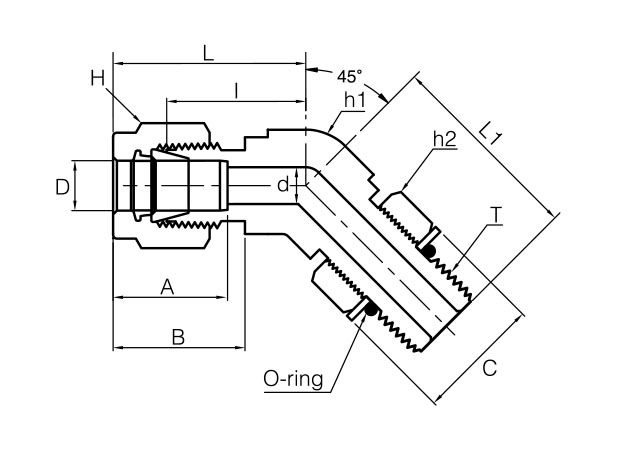

| Dimensions | |
| Angle |
45º |
| Dimension A |
16.76mm |
| Dimension B |
19.30mm |
| Dimension C |
20.07mm |
| Dimension I |
20.57mm |
| Dimension L |
27.94mm |
| Dimension L1 |
28.19mm |
| Dimension d [Min] |
7.11mm |
| Outside Diameter Pipe Size (P) |
21.30mm |
| Tube Outside Diameter D |
3/8in |
| Width Across Flats H |
11/16in |
| Width Across Flats h1 |
5/8in |
| Width Across Flats h2 |
11/16in |
| Specifications | |
| Description |
SPHME Positionable 45 Degree Male Elbows, Connects Fractional Tubes to SAE/MS Straight Thread |
| End Size |
43359 |
| End Type |
Society of Automotive Engineering (SAE)/MS Straight Thread (U) |
| Inch/Metric |
Inch |
| Material |
316 Stainless Steel |
