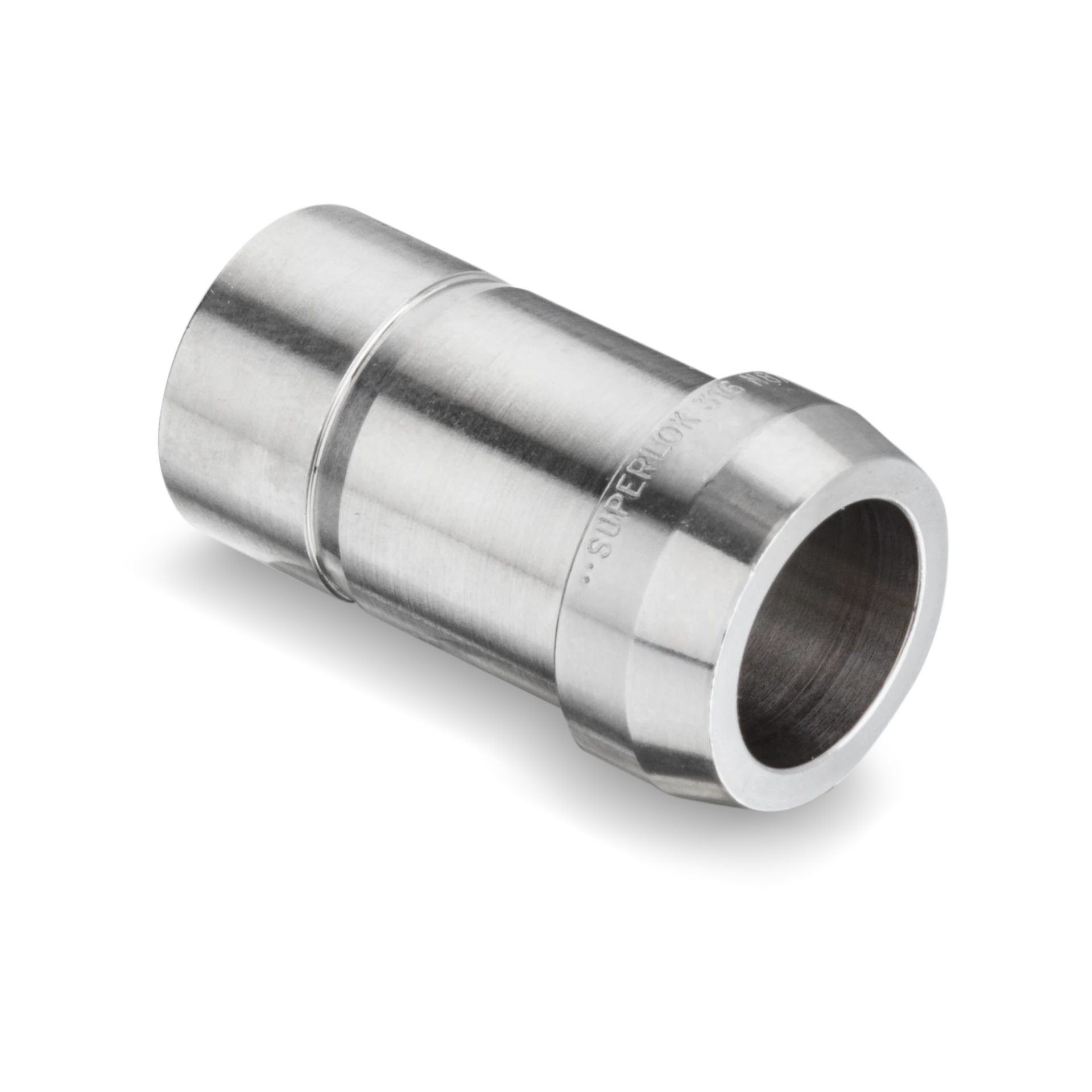

SPC Port Connectors
Downloads
10 Items in SPC Port Connectors
side-scroll to see full table
 |
|
|
|
|
|
|
|
|
| |
| Part# | SPC-2 | SPC-4 | SPC-6 | SPC-6M | SPC-8 | SPC-8M | SPC-10M | SPC-12 | SPC-12M | SPC-12M |
| Information | ||||||||||
| Type |
Port Connector |
Port Connector |
Port Connector |
Port Connector |
Port Connector |
Port Connector |
Port Connector |
Port Connector |
Port Connector |
Port Connector |
| Part Number |
SPC-2 |
SPC-4 |
SPC-6 |
SPC-6M |
SPC-8 |
SPC-8M |
SPC-10M |
SPC-12 |
SPC-12M |
SPC-12M |
| Dimensions | ||||||||||
| Dimension E |
6.09mm |
9.39mm |
12.7mm |
9.0mm |
15.74mm |
11.0mm |
13.1mm |
22.09mm |
15.0mm |
15.0mm |
| Dimension L |
22.35mm |
25.3mm |
26.7mm |
24.6mm |
35.81mm |
28.5mm |
26.1mm |
38.1mm |
35.8mm |
35.8mm |
| Dimension d [Min] |
2.1mm |
4.4mm |
6.9mm |
4.1mm |
9.4mm |
5.6mm |
7.1mm |
14.8mm |
8.8mm |
8.8mm |
| Tube Outside Diameter D |
1/8in |
1/4in |
3/8in |
6in |
1/2in |
8in |
10in |
3/4in |
12in |
12in |
| Specifications | ||||||||||
| Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Description |
SPC 1/8 in. Tube Outside Diameter D Port Connector |
SPC 1/4 in. Tube Outside Diameter D Port Connector |
SPC 3/8 in. Tube Outside Diameter D Port Connector |
SPC 6 mm Tube Outside Diameter D Port Connector |
SPC 1/2 in. Tube Outside Diameter D Port Connector |
SPC 8 mm Tube Outside Diameter D Port Connector |
SPC 10 mm Tube Outside Diameter D Port Connector |
SPC 3/4 in. Tube Outside Diameter D Port Connector |
SPC 12 mm Tube Outside Diameter D Port Connector |
SPC 12 mm Tube Outside Diameter D Port Connector |
| Inch/Metric |
Inch |
Inch |
Inch |
Metric |
Inch |
Metric |
Metric |
Inch |
Metric |
Metric |
