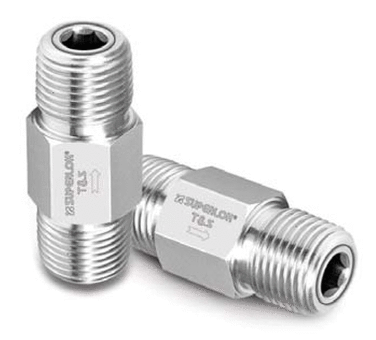

SOACV Adjustable Check Valves
Pressure rating up to 6,000 psig (413 bar) at 100 ºF (37 ºC) Temperature rating up to 375 ºF (190 ºC) with Fluorocarbon (FKM) seal standard Cracking pressure fixed from 1/3 to 25 psig (0.02 to 1.7 bar) Variety of end connections 316 stainless steel body material as standard Each and every valve is tested at the factory
4 Items in SOACV Adjustable Check Valves
side-scroll to see full table
|
|
|
|
|
| Part# | SOACV-M-4N-C | SOACV1-M-4N-A | SOACV1-M-4N-B | SOACV1-M-4N-B |
| Information | ||||
| Type |
Check Valve
|
Check Valve
|
Check Valve
|
Check Valve
|
| Part Number |
SOACV-M-4N-C
|
SOACV1-M-4N-A
|
SOACV1-M-4N-B
|
SOACV1-M-4N-B
|
| Dimensions | ||||
| Back Pressure at 70 (20 ºC) Temperature |
206bar
3000psig
|
206bar
3000psig
|
206bar
3000psig
|
206bar
3000psig
|

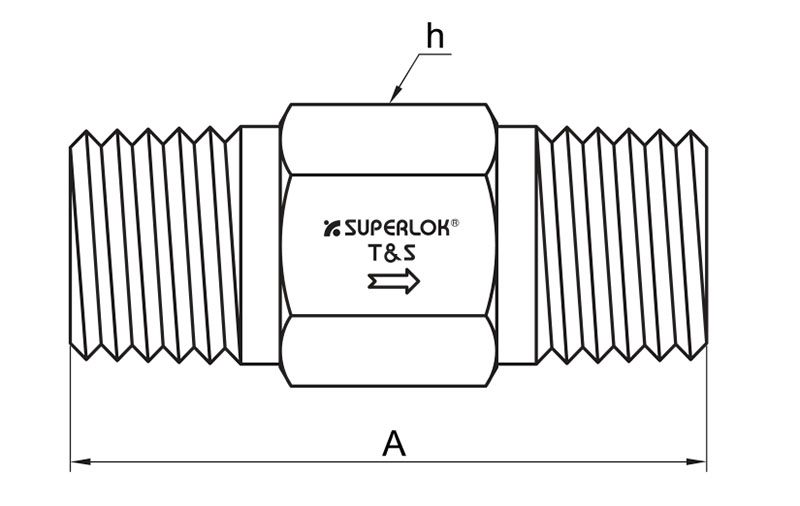

| Dimension A |
41.1mm
|
41.1mm
|
41.1mm
|
41.1mm
|
| Dimension h (HEX) |
9/16in
14.3mm
|
9/16in
14.3mm
|
9/16in
14.3mm
|
9/16in
14.3mm
|
| Inlet |
1/4mm
|
1/4mm
|
1/4mm
|
1/4mm
|
| Nominal Cracking Pressure |
0.2 to 41.3bar
3 to 600psig
|
0.2 to 41.3bar
3 to 600psig
|
0.2 to 41.3bar
3 to 600psig
|
0.2 to 41.3bar
3 to 600psig
|
| Operating Pressure [Min] |
206bar
3000psig
|
206bar
3000psig
|
206bar
3000psig
|
206bar
3000psig
|
| Outlet |
1/4mm
|
1/4mm
|
1/4mm
|
1/4mm
|
| Temperature Rating for Fluorocarbon (FKM) |
-23 to 190ºC
-10 to 375ºF
|
-23 to 190ºC
-10 to 375ºF
|
-23 to 190ºC
-10 to 375ºF
|
-23 to 190ºC
-10 to 375ºF
|
| Temperature Rating for Nitrile Butadiene Rubber |
-23 to 121ºC
-10 to 250ºF
|
-23 to 121ºC
-10 to 250ºF
|
-23 to 121ºC
-10 to 250ºF
|
-23 to 121ºC
-10 to 250ºF
|
| Specifications | ||||
| Cv Coefficient |
0.35
|
0.35
|
0.35
|
0.35
|
| End Type |
Male National Pipe Thread (MNPT)
|
Male National Pipe Thread (MNPT)
|
Male National Pipe Thread (MNPT)
|
Male National Pipe Thread (MNPT)
|
| End Type 2 |
Male National Pipe Thread (MNPT)
|
Male National Pipe Thread (MNPT)
|
Male National Pipe Thread (MNPT)
|
Male National Pipe Thread (MNPT)
|
| Inch/Metric |
Inch
|
Inch
|
Inch
|
Inch
|
| Material |
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
| Series |
SOACV
|
SOACV
|
SOACV
|
SOACV
|
| Description |
SOACV 1/4 in. Male National Pipe Taper (MNPT) x 1/4 in. Male National Pipe Taper (MNPT), 150-350 psi Cracking Pressure Range Adjustable Check Valve
|
SOACV 1/4 in. Male National Pipe Taper (MNPT) x 1/4 in. Male National Pipe Taper (MNPT), 3-50 psi Cracking Pressure Range Adjustable Check Valve
|
SOACV 1/4 in. Male National Pipe Taper (MNPT) x 1/4 in. Male National Pipe Taper (MNPT), 50-150 psi Cracking Pressure Range Adjustable Check Valve
|
SOACV 1/4 in. Male National Pipe Taper (MNPT) x 1/4 in. Male National Pipe Taper (MNPT), 50-150 psi Cracking Pressure Range Adjustable Check Valve
|
