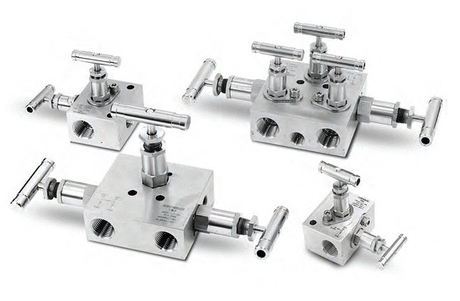

SM5V 5-Valve Manifold Valves
2-, 3-, and 5-valves Instrument manifolds valves Pressure Rating up to 6000 psig (413 bar) at 100 ºF(37 ºC) Temperature up to 1200 ºF (648 ºC) with optional Grafoil packing All 316 stainless steel construction with PTFE packing
4 Items in SM5V 5-Valve Manifold Valves
side-scroll to see full table
 |
|
|
| |
| Part# | SM5V-F-8N | SM5VD-F-8N-G | SM5VDF-SFS | SM5VDF-SFS |
| Information | ||||
| Type |
Manifold Valve |
Manifold Valve |
Manifold Valve |
Manifold Valve |
| Part Number |
SM5V-F-8N |
SM5VD-F-8N-G |
SM5VDF-SFS |
SM5VDF-SFS |
| Dimensions | ||||

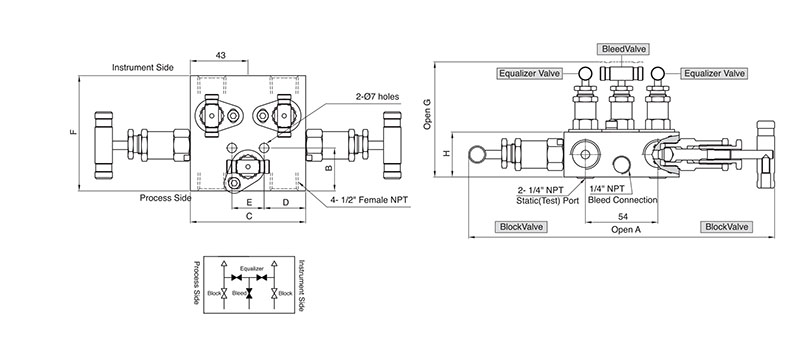

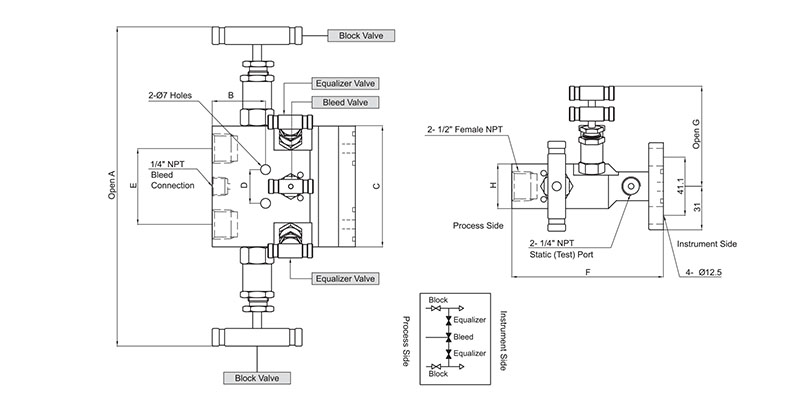

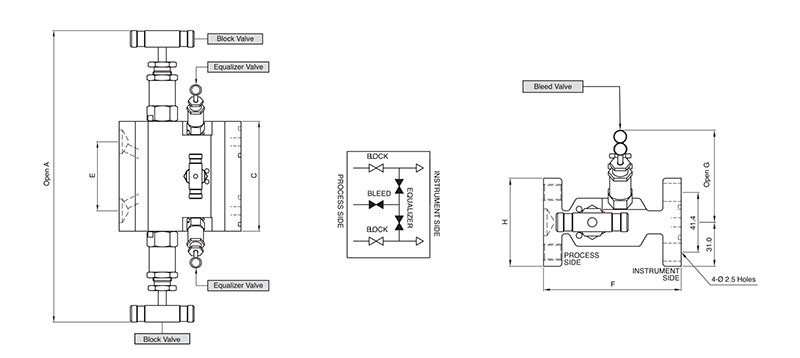

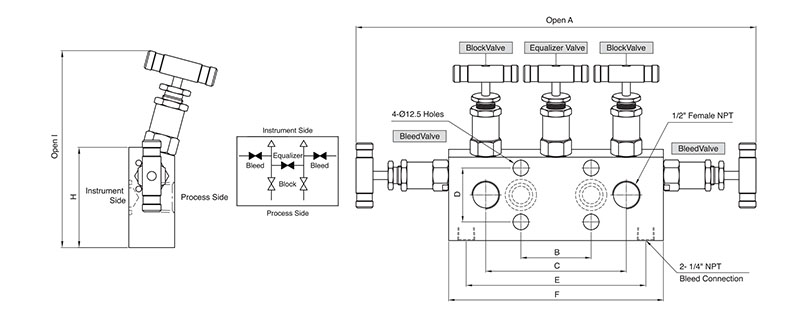

| Dimension A |
228.0mm |
312.0mm |
- mm |
- mm |
| Dimension B |
32.0mm |
54.0mm |
- mm |
- mm |
| Dimension C |
86.0mm |
102.0mm |
- mm |
- mm |
| Dimension D |
31.0mm |
41.4mm |
- mm |
- mm |
| Dimension E |
24.0mm |
138.0mm |
- mm |
- mm |
| Dimension F |
86.0mm |
158.0mm |
- mm |
- mm |
| Dimension G |
85.9mm |
148.0mm |
- mm |
- mm |
| Dimension H |
33.5mm |
76.2mm |
- mm |
- mm |
| Dimension I |
- mm |
32.0mm |
- mm |
- mm |
| End Connections |
Female National Pipe Thread (FNPT)Bleed Type
Female National Pipe Thread (FNPT)Instrument Type
Female National Pipe Thread (FNPT)Process Type |
Female National Pipe Thread (FNPT)Bleed Type
FlangeInstrument Type
Female National Pipe Thread (FNPT)Process Type |
- Bleed Type
- Instrument Type
- Process Type |
- Bleed Type
- Instrument Type
- Process Type |
| End Connections Bleed Size |
1/4mm |
1/4mm |
- mm |
- mm |
| End Connections Instrument Size |
1/2mm |
- mm |
- mm |
- mm |
| End Connections Process Size |
1/2mm |
1/2mm |
- mm |
- mm |
| Orifice |
0.125in
3.2mm |
0.250in
6.4mm |
- in
- mm |
- in
- mm |
| Pressure Rating with Grafoil at 1200 (648 ºC) |
- bar
- psig |
118bar
1715psig |
- bar
- psig |
- bar
- psig |
| Temperature Rating with Grafoil |
- ºC
- ºF |
648ºC
1200ºF |
- ºC
- ºF |
- ºC
- ºF |
| Specifications | ||||
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
| Description |
SM5V 1/2 in. Female National Pipe Taper (FNPT) Thread, Remote Mounting, 6000 psi Pressure Rating Valve Manifold Valve |
SM5V 1/2 in. Female National Pipe Taper (FNPT) Thread x Flange, Grafoil Packaging, Direct Mount, 6000 psi Pressure Rating Valve Manifold Valve |
SM5V 1/2 in. Flange x Flange, Bolts and Gaskets, Direct Mount Valve Manifold Valve |
SM5V 1/2 in. Flange x Flange, Bolts and Gaskets, Direct Mount Valve Manifold Valve |
| Packaging Material |
- |
Grafoil |
- |
- |
