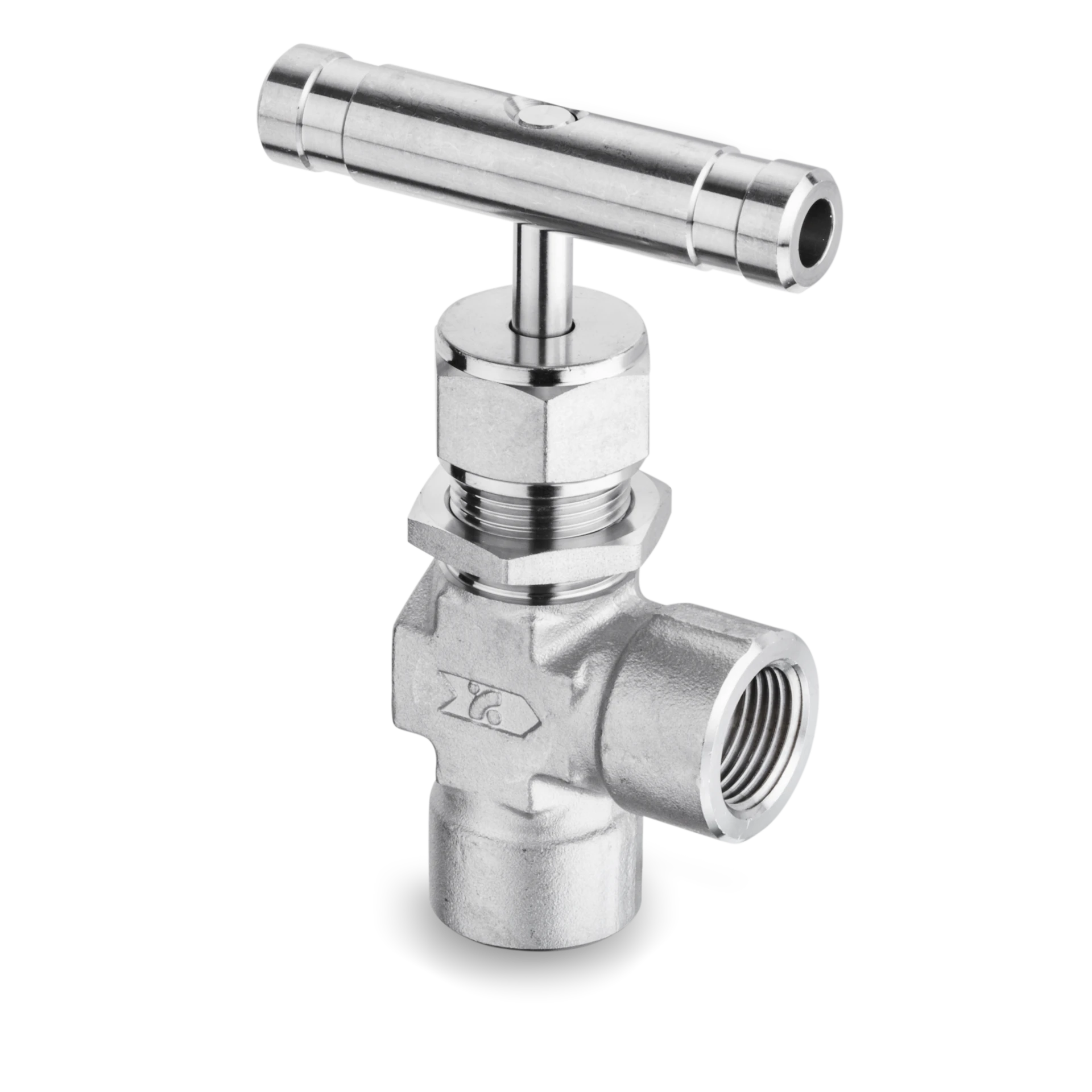

SINV Needle Valves

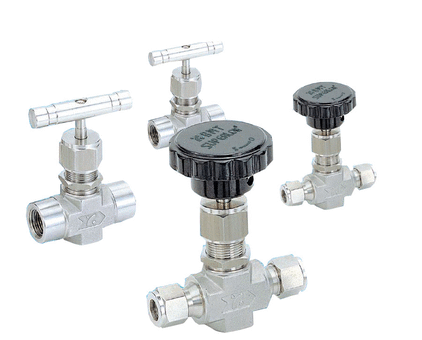

Compact design Low operating torques Panel mountable Variety of stem tips Variety of End Connections Straight and Angle flow patterns Each and every valve is tested at the factory

Downloads

Data Sheet for SINV Needle Valves

Request a Quote

Call Us (805) 658-2043

29 Items in SINV Needle Valves

side-scroll to see full table

Information

Part#	SINV1-F-2N-RS-KH	SINV1-M-2N-A-RS	SINV1-S-2	SINV1-S-2-RS	SINV2-M-4N-KH-A-RS-BRAS	SINV2-M-4N-KH-BRAS	SINV2-M-4N-RS	SINV2-M-4N-RS-KH	SINV2-S-4-RS	SINV2-S-4-RS-KH	SINV2-S-4-RS-KH-PE	SINV2-S-4-RS-MR	SINV2-S-4-SS-KH	SINV3-F-4N-RS	SINV3-F-4N-RS-KH	SINV3-F-4N-RS-MR	SINV3-MF-4N-RS	SINV3-S-6-RS	SINV3-S-6-RS-KH	SINV3-S-6-RS-MR	SINV3-S-8-RS	SINV3-S-8-RS-KH-PE	SINV4-F-6N-RS	SINV4-F-8N-RS	SINV4-MF-8N-RS	SINV4-S-8-RS	SINV4-S-8-RS-KH-A-PE	SINV4-S-8-RS-KH-PE	SINV4-S-8-RS-KH-PE
Type	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve	Needle Valve
Part Number	SINV1-F-2N-RS-KH	SINV1-M-2N-A-RS	SINV1-S-2	SINV1-S-2-RS	SINV2-M-4N-KH-A-RS-BRAS	SINV2-M-4N-KH-BRAS	SINV2-M-4N-RS	SINV2-M-4N-RS-KH	SINV2-S-4-RS	SINV2-S-4-RS-KH	SINV2-S-4-RS-KH-PE	SINV2-S-4-RS-MR	SINV2-S-4-SS-KH	SINV3-F-4N-RS	SINV3-F-4N-RS-KH	SINV3-F-4N-RS-MR	SINV3-MF-4N-RS	SINV3-S-6-RS	SINV3-S-6-RS-KH	SINV3-S-6-RS-MR	SINV3-S-8-RS	SINV3-S-8-RS-KH-PE	SINV4-F-6N-RS	SINV4-F-8N-RS	SINV4-MF-8N-RS	SINV4-S-8-RS	SINV4-S-8-RS-KH-A-PE	SINV4-S-8-RS-KH-PE	SINV4-S-8-RS-KH-PE

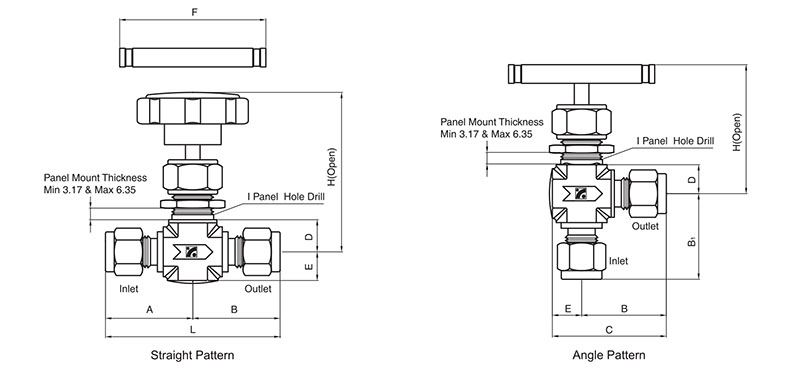

Dimensions
Dimension A	28.7mm	19.1mm	24.7mm	24.7mm	24.9mm	24.9mm	24.9mm	24.9mm	28.7mm	28.7mm	28.7mm	28.7mm	28.7mm	38.1mm	38.1mm	38.1mm	28.7mm	32.8mm	32.8mm	32.8mm	35.6mm	35.6mm	38.1mm	38.1mm	28.7mm	48.3mm	48.3mm	48.3mm	48.3mm
Dimension B	26.9mm	19.1mm	24.7mm	24.7mm	24.9mm	24.9mm	24.9mm	24.9mm	28.7mm	28.7mm	28.7mm	28.7mm	28.7mm	38.1mm	38.1mm	38.1mm	26.9mm	32.8mm	32.8mm	32.8mm	35.6mm	35.6mm	38.1mm	38.1mm	26.9mm	48.3mm	48.3mm	48.3mm	48.3mm
Dimension B1	28.7mm	19.1mm	24.7mm	24.7mm	24.9mm	24.9mm	24.9mm	24.9mm	28.7mm	28.7mm	28.7mm	28.7mm	28.7mm	38.1mm	38.1mm	38.1mm	28.7mm	32.8mm	32.8mm	32.8mm	35.6mm	35.6mm	38.1mm	38.1mm	28.7mm	48.3mm	48.3mm	48.3mm	48.3mm
Dimension C	39.6mm	27.0mm	32.6mm	32.6mm	34.6mm	34.6mm	34.6mm	34.6mm	38.4mm	38.4mm	38.4mm	38.4mm	38.4mm	57.2mm	57.2mm	57.2mm	39.6mm	45.5mm	45.5mm	45.5mm	48.3mm	48.3mm	57.2mm	57.2mm	39.6mm	67.4mm	67.4mm	67.4mm	67.4mm
Dimension D	12.7mm	11.2mm	11.2mm	11.2mm	11.2mm	11.2mm	11.2mm	11.2mm	11.2mm	11.2mm	11.2mm	11.2mm	11.2mm	19.1mm	19.1mm	19.1mm	12.7mm	12.7mm	12.7mm	12.7mm	14.0mm	14.0mm	19.1mm	19.1mm	12.7mm	19.1mm	19.1mm	19.1mm	19.1mm
Dimension E	12.7mm	7.9mm	7.9mm	7.9mm	9.7mm	9.7mm	9.7mm	9.7mm	9.7mm	9.7mm	9.7mm	9.7mm	9.7mm	19.1mm	19.1mm	19.1mm	12.7mm	12.7mm	12.7mm	12.7mm	12.7mm	12.7mm	19.1mm	19.1mm	12.7mm	19.1mm	19.1mm	19.1mm	19.1mm
Dimension F	64.0mm	32.0mm	32.0mm	32.0mm	45.0mm	45.0mm	45.0mm	45.0mm	45.0mm	45.0mm	45.0mm	45.0mm	45.0mm	76.0mm	76.0mm	76.0mm	64.0mm	64.0mm	64.0mm	64.0mm	64.0mm	64.0mm	76.0mm	76.0mm	64.0mm	76.0mm	76.0mm	76.0mm	76.0mm
Dimension H	63.5mm	55.0mm	55.0mm	55.0mm	51.5mm	51.5mm	51.5mm	51.5mm	51.5mm	51.5mm	51.5mm	51.5mm	51.5mm	9.5mm	9.5mm	9.5mm	63.5mm	63.5mm	63.5mm	63.5mm	63.5mm	63.5mm	9.5mm	9.5mm	63.5mm	99.5mm	99.5mm	99.5mm	99.5mm
Dimension I	20.0mm	11.9mm	11.9mm	11.9mm	13.5mm	13.5mm	13.5mm	13.5mm	13.5mm	13.5mm	13.5mm	13.5mm	13.5mm	26.2mm	26.2mm	26.2mm	20.0mm	20.0mm	20.0mm	20.0mm	20.0mm	20.0mm	26.2mm	26.2mm	20.0mm	26.2mm	26.2mm	26.2mm	26.2mm
Dimension L	55.6mm	38.1mm	49.4mm	49.4mm	49.8mm	49.8mm	49.8mm	49.8mm	57.4mm	57.4mm	57.4mm	57.4mm	57.4mm	76.2mm	76.2mm	76.2mm	55.6mm	65.6mm	65.6mm	65.6mm	71.2mm	71.2mm	76.2mm	76.2mm	55.6mm	96.6mm	96.6mm	96.6mm	96.6mm
End Size	44204in	44204in	44204in	44204in	44200in	44200in	44200in	44200in	44200in	44200in	44200in	44200in	44200in	44200in	44200in	44200in	44200in	44263in	44263in	44263in	44198in	44198in	44263in	44198in	44198in	44198in	44198in	44198in	44198in
End Size 2	44204in	44204in	44204in	44204in	44200in	44200in	44200in	44200in	44200in	44200in	44200in	44200in	44200in	44200in	44200in	44200in	44200in	44263in	44263in	44263in	44198in	44198in	44263in	44198in	44198in	44198in	44198in	44198in	44198in
Orifice Diameter	2mm	2mm	2mm	2mm	4.4000000000000004mm	4.4000000000000004mm	4.4000000000000004mm	4.4000000000000004mm	4.4000000000000004mm	4.4000000000000004mm	4.4000000000000004mm	4.4000000000000004mm	4.4000000000000004mm	6.3mm	6.3mm	6.3mm	6.3mm	6.3mm	6.3mm	6.3mm	6.3mm	6.3mm	9.5mm	9.5mm	9.5mm	9.5mm	9.5mm	9.5mm	9.5mm
Pressure Rating 316 Stainless Steel at 65 to 100 (-54 to 38 ºC) Temperature	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	345bar 5000psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig	- bar - psig
Pressure Rating at 100 (38 ºC) Temperature	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig	345bar 5000psig
Temperature Rating (316 Stainless Steel)	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	-54 to 93ºC -65 to 200ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF	- ºC - ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF	315ºC 600ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF	-54 to 232ºC -65 to 450ºF
Specifications
Body Material	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass	316 Stainless Steel, Alloy 400, Brass
Inch/Metric	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch
Series	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV	SINV
Cv Coefficient	0.09	0.09	0.09	0.09	0.37	0.37	0.37	0.37	0.37	0.37	0.37	0.37	0.37	0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.75	1.8	1.8	1.8	1.8	1.8	1.8	1.8
Description	SINV 1/8 in. Female National Pipe Taper (FNPT) Thread, Regulating Stem, Phenolic Handle, 5000 psi Pressure Rating Needle Valve	SINV 1/8 in. Male National Pipe Taper (MNPT) Thread, Angle Pattern, Regulating Stem, 5000 psi Pressure Rating Needle Valve	SINV 1/8 in. Outside Diameter, Bar Handle, Vee Tip Stem, 5000 psi Pressure Rating Needle Valve	SINV 1/8 in. Outside Diameter, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve	SINV 1/4 in. Male National Pipe Taper (MNPT) Thread, Angle Pattern, Brass, 3000 psi Pressure Rating Needle Valve	SINV 1/4 in. Male National Pipe Taper (MNPT) Thread, Angle Pattern, Brass, 3000 psi Pressure Rating Needle Valve	SINV 1/4 in. Male National Pipe Taper (MNPT) Thread, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve	SINV 1/4in. Male National Pipe Taper (MNPT) Thread, Regulating Stem, Phenolic Handle, 5000 psi Pressure Rating Needle Valve	SINV 1/4 in. Outside Diameter, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve	SINV 1/4 in. Outside Diameter, Phenolic Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve	SINV 1/4 in. Outside Diameter, Phenolic Handle, Peek Seats, Regulating Stem Needle Valve	SINV 1/4 in. Outside Diameter, Bar Handle, National Association of Corrosion Engineers (NACE) Rated, 5000 psi Pressure Rating Needle Valve	SINV 1/4 in. Outside Diameter, Soft Seats, Phenolic Handle, 5000 psi Pressure Rating Needle Valve	SINV 1/4 in. Male National Pipe Taper (MNPT) Thread, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve	SINV 1/4 in. Female National Pipe Taper (FNPT) Thread, Regulating Stem, Phenolic Handle, 5000 psi Pressure Rating Needle Valve	SINV 1/4 in. Female National Pipe Taper (FNPT) Thread, Regulating Stem, National Association of Corrosion Engineers (NACE) Rated, 5000 psi Pressure Rating Needle Valve	SINV 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve	SINV 3/8 in. Outside Diameter, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve	SINV 3/8 in. Outside Diameter, Regulating Stem, Phenolic Handle, 5000 psi Pressure Rating Needle Valve	SINV 3/8 in. Outside Diameter, Regulating Stem, National Association of Corrosion Engineers (NACE) Rated, 5000 psi Pressure Rating Needle Valve	SINV 1/2 in. Outside Diameter, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve	SINV 1/2 in. Outside Diameter, Peek Seats, Phenolic Handle, 5000 psi Pressure Rating Needle Valve	SINV 3/8 in. Male National Pipe Taper (MNPT) Thread, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve	SINV 1/2 in. Male National Pipe Taper (MNPT) Thread, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve	SINV 1/2 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve	SINV 1/2 in. Outside Diameter, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve	SINV 1/2 in. Outside Diameter, Angle Pattern, Peek Seats, Phenolic Handle Needle Valve	SINV 1/2 in. Outside Diameter, Peek Seats, Phenolic Handle, 5000 psi Pressure Rating Needle Valve	SINV 1/2 in. Outside Diameter, Peek Seats, Phenolic Handle, 5000 psi Pressure Rating Needle Valve
End Type	Female National Pipe Thread (FNPT)	Male National Pipe Thread (MNPT)	-	-	Male National Pipe Thread (MNPT)	Male National Pipe Thread (MNPT)	Male National Pipe Thread (MNPT)	Male National Pipe Thread (MNPT)	-	-	-	-	-	Female National Pipe Thread (FNPT)	Female National Pipe Thread (FNPT)	Female National Pipe Thread (FNPT)	Male National Pipe Thread (MNPT)	-	-	-	-	-	Female National Pipe Thread (FNPT)	Female National Pipe Thread (FNPT)	Female National Pipe Thread (FNPT)	-	-	-	-
End Type 2	Female National Pipe Thread (FNPT)	Male National Pipe Thread (MNPT)	-	-	Male National Pipe Thread (MNPT)	Male National Pipe Thread (MNPT)	Male National Pipe Thread (MNPT)	Male National Pipe Thread (MNPT)	-	-	-	-	-	Female National Pipe Thread (FNPT)	Female National Pipe Thread (FNPT)	Female National Pipe Thread (FNPT)	Female National Pipe Thread (FNPT)	-	-	-	-	-	Female National Pipe Thread (FNPT)	Female National Pipe Thread (FNPT)	Female National Pipe Thread (FNPT)	-	-	-	-
