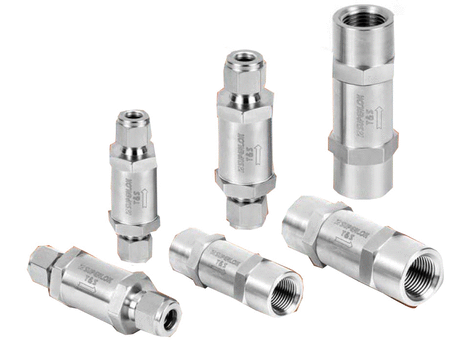

SIF Inline Filters

Remove system particulate contaminants. Inline filters are for use where space is limited. Replaceable filter element. Maximum operating pressure : 3000 psi at 70 ºF (21 ºC) Operating temperature range : -20 ºF to 900 ºF (-28 ºC to 482 ºC ) with SS316 body 1/8 to 1/2 in. and 3 to 10 mm end connections.

Downloads

BMT_MICRON_INLINE_FILTER_(EN)_-R4_(190601)

Request a Quote

Call Us (805) 658-2043

11 Items in SIF Inline Filters

	Item #	Item Name
	SIF1S2-7 SIF 1/8 in. Tube Outside Diameter D, 7 Micron Inlet Inline Filter	SIF 1/8 in. Tube Outside Diameter D, 7 Micron Inlet Inline Filter
	SIF2F-4N-60 SIF 1/4 in. Female National Pipe Taper (FNPT), 60 Micron Inlet Inline Filter	SIF 1/4 in. Female National Pipe Taper (FNPT), 60 Micron Inlet Inline Filter
	SIF2S4-.5 SIF 1/4 in. Tube Outside Diameter D, 0.5 Micron Inlet Inline Filter	SIF 1/4 in. Tube Outside Diameter D, 0.5 Micron Inlet Inline Filter
	SIF2S4-2 SIF 1/4 in. Tube Outside Diameter D, 2 Micron Inlet Inline Filter	SIF 1/4 in. Tube Outside Diameter D, 2 Micron Inlet Inline Filter
	SIF2S4-60 SIF 1/4 in. Tube Outside Diameter D, 60 Micron Inlet Inline Filter	SIF 1/4 in. Tube Outside Diameter D, 60 Micron Inlet Inline Filter
	SIF3S6-.5 SIF 3/8 in. Tube Outside Diameter D, 0.5 Micron Inlet Inline Filter	SIF 3/8 in. Tube Outside Diameter D, 0.5 Micron Inlet Inline Filter
	SIF3S6-2 SIF 3/8 in. Tube Outside Diameter D, 2 Micron Inlet Inline Filter	SIF 3/8 in. Tube Outside Diameter D, 2 Micron Inlet Inline Filter
	SIF3S6-7 SIF 3/8 in. Outside Diameter, 7 Micron Inlet Inline Filter	SIF 3/8 in. Outside Diameter, 7 Micron Inlet Inline Filter
	SIF3S6-60 SIF 3/8 in. Outside Diameter, 60 Micron Inlet Inline Filter	SIF 3/8 in. Outside Diameter, 60 Micron Inlet Inline Filter
	SIF4S8-2 SIF 1/2 in. Outside Diameter, 2 Micron Inlet Inline Filter	SIF 1/2 in. Outside Diameter, 2 Micron Inlet Inline Filter
	SIF4S8-7 SIF 1/2 in. Outside Diameter, 7 Micron Inlet Inline Filter	SIF 1/2 in. Outside Diameter, 7 Micron Inlet Inline Filter

side-scroll to see full table

Information

Part#	SIF1S2-7	SIF2F-4N-60	SIF2S4-.5	SIF2S4-2	SIF2S4-60	SIF3S6-.5	SIF3S6-2	SIF3S6-7	SIF3S6-60	SIF4S8-2	SIF4S8-2
Type	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter
Part Number	SIF1S2-7	SIF2F-4N-60	SIF2S4-.5	SIF2S4-2	SIF2S4-60	SIF3S6-.5	SIF3S6-2	SIF3S6-7	SIF3S6-60	SIF4S8-2	SIF4S8-2
Dimensions
Air Flow at Inlet Pressure 10 psig (0.34 bar)	0.90ft³/min	5.9ft³/min	0.26ft³/min	1.4ft³/min	5.9ft³/min	0.86ft³/min	2.8ft³/min	4.2ft³/min	2.4ft³/min	2.8ft³/min	2.8ft³/min
Air Flow at Inlet Pressure 15 psig (1.0 bar)	1.2ft³/min	8.5ft³/min	0.48ft³/min	2.2999999999999998ft³/min	8.5ft³/min	1.6ft³/min	4ft³/min	6.8ft³/min	15ft³/min	4ft³/min	4ft³/min
Air Flow at Inlet Pressure 5 psig (0.34 bar)	0.50ft³/min	3.1ft³/min	0.12ft³/min	0.6ft³/min	3.1ft³/min	0.36ft³/min	1.4ft³/min	1.8ft³/min	5.1ft³/min	1.4ft³/min	1.4ft³/min
Dimension H	14.3mm	19.0mm	19.0mm	19.0mm	19.0mm	25.4mm	25.4mm	25.4mm	25.4mm	25.4mm	25.4mm
Dimension I	29.2mm	39.7mm	39.7mm	39.7mm	39.7mm	43.2mm	43.2mm	43.2mm	43.2mm	43.2mm	43.2mm
Dimension L	54.7mm	72.9mm	75.2mm	75.2mm	75.2mm	81.8mm	81.8mm	81.8mm	81.8mm	86.9mm	86.9mm
Effective Filtration Area	0.55000000000000004in² 350mm²	1.3in² 830mm²	1.3in² 830mm²	1.3in² 830mm²	1.3in² 830mm²	2in² 1280mm²	2in² 1280mm²	2in² 1280mm²	2in² 1280mm²	2in² 1280mm²	2in² 1280mm²
End Connection	- Inlet - Outlet	Female National Pipe Thread (FNPT)Inlet Female National Pipe Thread (FNPT)Outlet	- Inlet - Outlet	- Inlet - Outlet	- Inlet - Outlet	- Inlet - Outlet	- Inlet - Outlet	- Inlet - Outlet	- Inlet - Outlet	- Inlet - Outlet	- Inlet - Outlet
Inlet Size	44204in	44200in	44200in	44200in	44200in	44263in	44263in	44263in	44263in	44198in	44198in
Nominal Size	7µm	60µm	0.5µm	2µm	60µm	0.5µm	2µm	7µm	60µm	2µm	2µm
Operating Pressure [Max]	0.34,0.68,1.0bar 5,10,15psig	0.34,0.68,1.0bar 5,10,15psig	0.34,0.68,1.0bar 5,10,15psig	0.34,0.68,1.0bar 5,10,15psig	0.34,0.68,1.0bar 5,10,15psig	0.34,0.68,1.0bar 5,10,15psig	0.34,0.68,1.0bar 5,10,15psig	0.34,0.68,1.0bar 5,10,15psig	0.34,0.68,1.0bar 5,10,15psig	0.34,0.68,1.0bar 5,10,15psig	0.34,0.68,1.0bar 5,10,15psig
Orifice	2.4mm	4.8mm	4.8mm	4.8mm	4.8mm	7.1mm	7.1mm	7.1mm	7.1mm	10.4mm	10.4mm
Outlet Size	44204in	44200in	44200in	44200in	44200in	44263in	44263in	44263in	44263in	44198in	44198in
Pore Size Range	5 to 10µm	50 to 75µm	0.5 to 2µm	1 to 4µm	50 to 75µm	0.5 to 2µm	1 to 4µm	5 to 10µm	50 to 75µm	1 to 4µm	1 to 4µm
Pressure Drop	0.68,3.4,6.8bar 10,50,100psig	0.68,3.4,6.8bar 10,50,100psig	0.68,3.4,6.8bar 10,50,100psig	0.68,3.4,6.8bar 10,50,100psig	0.68,3.4,6.8bar 10,50,100psig	0.68,3.4,6.8bar 10,50,100psig	0.68,3.4,6.8bar 10,50,100psig	0.68,3.4,6.8bar 10,50,100psig	0.68,3.4,6.8bar 10,50,100psig	0.68,3.4,6.8bar 10,50,100psig	0.68,3.4,6.8bar 10,50,100psig
Water Flow at Pressure Drop 10 psig (0.68 bar)	1.2999999999999999E-2ft³/min	0.12ft³/min	5.0000000000000001E-3ft³/min	3.2000000000000001E-2ft³/min	0.12ft³/min	1.2E-2ft³/min	3.5000000000000003E-2ft³/min	8.5999999999999993E-2ft³/min	0.26700000000000002ft³/min	3.5000000000000003E-2ft³/min	3.5000000000000003E-2ft³/min
Water Flow at Pressure Drop 100 psig (6.8 bar)	6.4000000000000001E-2ft³/min	0.61499999999999999ft³/min	3.9E-2ft³/min	0.17399999999999999ft³/min	0.61499999999999999ft³/min	0.10199999999999999ft³/min	0.214ft³/min	0.46800000000000003ft³/min	1.337ft³/min	0.214ft³/min	0.214ft³/min
Water Flow at Pressure Drop 50 psig (3.4 bar)	0.04ft³/min	6.7000000000000004E-2ft³/min	2.3E-2ft³/min	0.115ft³/min	6.7000000000000004E-2ft³/min	1.6E-2ft³/min	0.14699999999999999ft³/min	0.29399999999999998ft³/min	0.89600000000000002ft³/min	0.14699999999999999ft³/min	0.14699999999999999ft³/min
Working Pressure at -20ºF (-28 ºC) to 100 (37 ºC) Temperature	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	206bar 3000psig	172bar 2500psig	172bar 2500psig	172bar 2500psig	172bar 2500psig	172bar 2500psig	172bar 2500psig
Working Pressure at 200 (93 ºC) Temperature	177bar 2580psig	177bar 2580psig	177bar 2580psig	177bar 2580psig	177bar 2580psig	148bar 2150psig	148bar 2150psig	148bar 2150psig	148bar 2150psig	148bar 2150psig	148bar 2150psig
Working Pressure at 300 (148 ºC) Temperature	160bar 2330psig	160bar 2330psig	160bar 2330psig	160bar 2330psig	160bar 2330psig	133bar 1940psig	133bar 1940psig	133bar 1940psig	133bar 1940psig	133bar 1940psig	133bar 1940psig
Working Pressure at 400 (204 ºC) Temperature	147bar 2140psig	147bar 2140psig	147bar 2140psig	147bar 2140psig	147bar 2140psig	122bar 1780psig	122bar 1780psig	122bar 1780psig	122bar 1780psig	122bar 1780psig	122bar 1780psig
Working Pressure at 500 (260 ºC) Temperature	137bar 1990psig	137bar 1990psig	137bar 1990psig	137bar 1990psig	137bar 1990psig	114bar 1660psig	114bar 1660psig	114bar 1660psig	114bar 1660psig	114bar 1660psig	114bar 1660psig
Working Pressure at 600 (315 ºC) Temperature	129bar 1880psig	129bar 1880psig	129bar 1880psig	129bar 1880psig	129bar 1880psig	107bar 1560psig	107bar 1560psig	107bar 1560psig	107bar 1560psig	107bar 1560psig	107bar 1560psig
Working Pressure at 650 (343 ºC) Temperature	127bar 1845psig	127bar 1845psig	127bar 1845psig	127bar 1845psig	127bar 1845psig	106bar 1540psig	106bar 1540psig	106bar 1540psig	106bar 1540psig	106bar 1540psig	106bar 1540psig
Working Pressure at 700 (371 ºC) Temperature	124bar 1800psig	124bar 1800psig	124bar 1800psig	124bar 1800psig	124bar 1800psig	103bar 1500psig	103bar 1500psig	103bar 1500psig	103bar 1500psig	103bar 1500psig	103bar 1500psig
Working Pressure at 750 (398 ºC) Temperature	121bar 1760psig	121bar 1760psig	121bar 1760psig	121bar 1760psig	121bar 1760psig	100bar 1460psig	100bar 1460psig	100bar 1460psig	100bar 1460psig	100bar 1460psig	100bar 1460psig
Working Pressure at 800 (426 ºC) Temperature	118bar 1725psig	118bar 1725psig	118bar 1725psig	118bar 1725psig	118bar 1725psig	99.2bar 1440psig	99.2bar 1440psig	99.2bar 1440psig	99.2bar 1440psig	99.2bar 1440psig	99.2bar 1440psig
Working Pressure at 850 (454 ºC) Temperature	116bar 1690psig	116bar 1690psig	116bar 1690psig	116bar 1690psig	116bar 1690psig	97.1bar 1410psig	97.1bar 1410psig	97.1bar 1410psig	97.1bar 1410psig	97.1bar 1410psig	97.1bar 1410psig
Working Pressure at 900 (482 ºC) Temperature	112bar 1640psig	112bar 1640psig	112bar 1640psig	112bar 1640psig	112bar 1640psig	93.7bar 1360psig	93.7bar 1360psig	93.7bar 1360psig	93.7bar 1360psig	93.7bar 1360psig	93.7bar 1360psig
Specifications
Inch/Metric	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch
Material	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Series	SIF	SIF	SIF	SIF	SIF	SIF	SIF	SIF	SIF	SIF	SIF
Description	SIF 1/8 in. Tube Outside Diameter D, 7 Micron Inlet Inline Filter	SIF 1/4 in. Female National Pipe Taper (FNPT), 60 Micron Inlet Inline Filter	SIF 1/4 in. Tube Outside Diameter D, 0.5 Micron Inlet Inline Filter	SIF 1/4 in. Tube Outside Diameter D, 2 Micron Inlet Inline Filter	SIF 1/4 in. Tube Outside Diameter D, 60 Micron Inlet Inline Filter	SIF 3/8 in. Tube Outside Diameter D, 0.5 Micron Inlet Inline Filter	SIF 3/8 in. Tube Outside Diameter D, 2 Micron Inlet Inline Filter	SIF 3/8 in. Outside Diameter, 7 Micron Inlet Inline Filter	SIF 3/8 in. Outside Diameter, 60 Micron Inlet Inline Filter	SIF 1/2 in. Outside Diameter, 2 Micron Inlet Inline Filter	SIF 1/2 in. Outside Diameter, 2 Micron Inlet Inline Filter
Includes	SIF1S2-7	SIF2F-4N-60	SIF2S4-.5	SIF2S4-2	SIF2S4-60	SIF3S6-.5	SIF3S6-2	SIF3S6-7	SIF3S6-60	SIF4S8-2	SIF4S8-2
