SHUE 45 Degree Union Elbows

Downloads

Data Sheet for SHUE 45 Degree Union Elbows

Request a Quote

Call Us (805) 658-2043

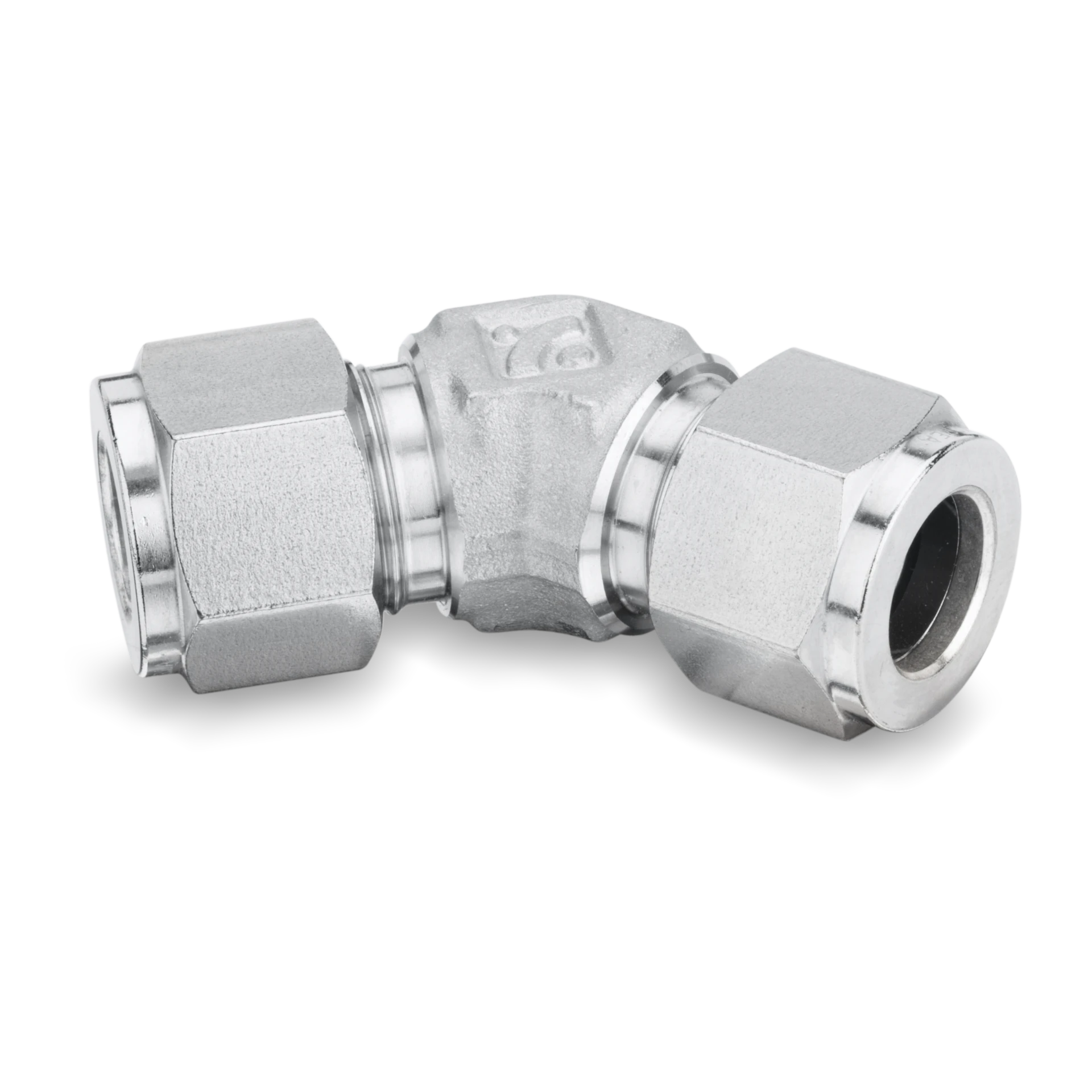

SHUE TUBE FITTING

SHUE 45 Degree Unions Elbows - 2

4 Items in SHUE 45 Degree Union Elbows

	Item #	Item Name
	SHUE-4 SHUE 1/4 in. Tube Outside Diameter D 45 Degree Union Elbow	SHUE 1/4 in. Tube Outside Diameter D 45 Degree Union Elbow
	SHUE-8 SHUE 1/2 in. Tube Outside Diameter D 45 Degree Union Elbow	SHUE 1/2 in. Tube Outside Diameter D 45 Degree Union Elbow
	SHUE-12 SHUE 3/4 in. Tube Outside Diameter D 45 Degree Union Elbow	SHUE 3/4 in. Tube Outside Diameter D 45 Degree Union Elbow
	SHUE-16 SHUE 1 in. Tube Outside Diameter D 45 Degree Union Elbow	SHUE 1 in. Tube Outside Diameter D 45 Degree Union Elbow

side-scroll to see full table

Information

Part#	SHUE-4	SHUE-8	SHUE-12	SHUE-12
Type	Union Elbows	Union Elbows	Union Elbows	Union Elbows
Part Number	SHUE-4	SHUE-8	SHUE-12	SHUE-12

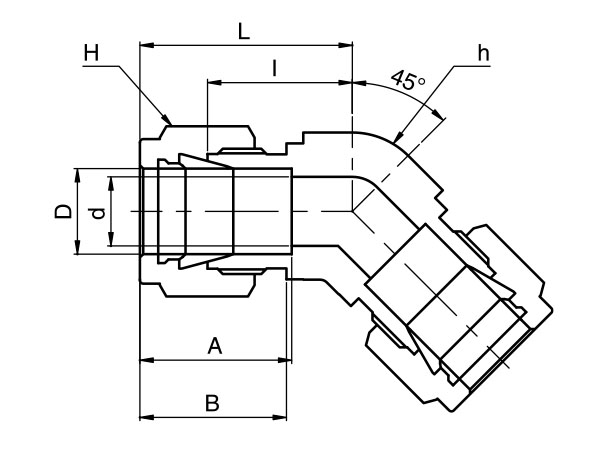

Dimensions
Angle	45º	45º	45º	45º
Dimension A	15.24mm	22.86mm	24.38mm	24.38mm
Dimension B	17.78mm	21.84mm	21.88mm	21.88mm
Dimension I	17.27mm	21.84mm	21.3mm	21.3mm
Dimension L	24.63mm	32.00mm	31.48mm	31.48mm
Dimension d [Min]	4.82mm	10.41mm	15.74mm	15.74mm
Tube Outside Diameter D	1/4in	1/2in	3/4in	3/4in
Width Across Flats H	9/16in	7/8in	1-1/8in	1-1/8in
Width Across Flats h	1/2in	13/16in	1-1/16in	1-1/16in
Specifications
Inch/Metric	Inch	Inch	Inch	Inch
Material	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Description	SHUE 1/4 in. Tube Outside Diameter D 45 Degree Union Elbow	SHUE 1/2 in. Tube Outside Diameter D 45 Degree Union Elbow	SHUE 3/4 in. Tube Outside Diameter D 45 Degree Union Elbow	SHUE 3/4 in. Tube Outside Diameter D 45 Degree Union Elbow
