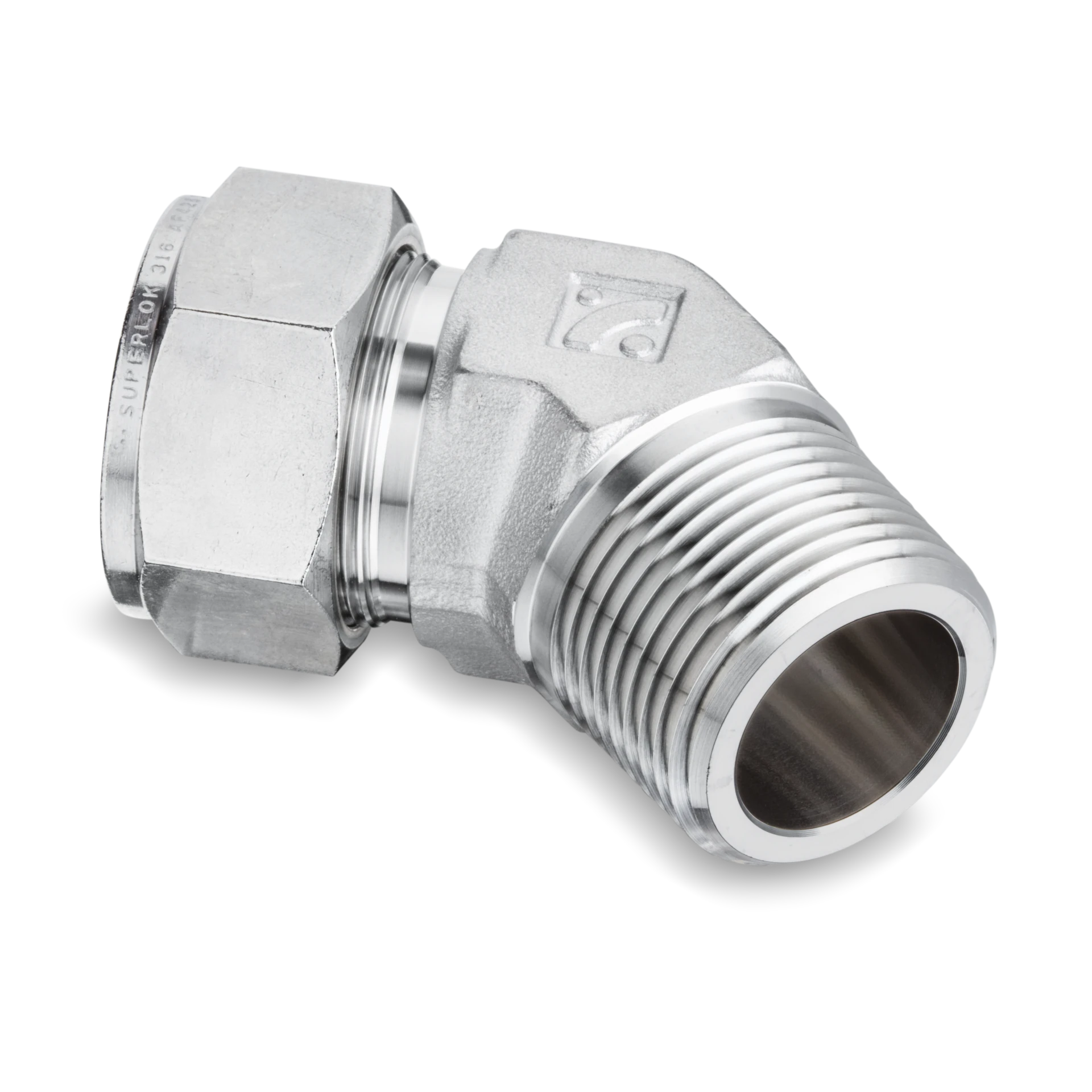

SHME 45 Degree Male Elbows

Downloads

Data Sheet for SHME 45 Degree Male Elbows

Call Us (805) 658-2043

7 Items in SHME 45 Degree Male Elbows

	Item #	Item Name
	SHME 4-2N SHME 1/4 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow	SHME 1/4 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow
	SHME 4-4N SHME 1/4 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow	SHME 1/4 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow
	SHME 6-2N SHME 3/8 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow	SHME 3/8 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow
	SHME 6-4N SHME 3/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow	SHME 3/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow
	SHME 6-6N SHME 3/8 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow	SHME 3/8 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow
	SHME 8-6N SHME 1/2 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow	SHME 1/2 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow
	SHME 8-8N SHME 1/2 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow	SHME 1/2 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow

side-scroll to see full table

Information

Part#	SHME 4-2N	SHME 4-4N	SHME 6-2N	SHME 6-4N	SHME 6-6N	SHME 8-6N	SHME 8-6N
Type	Male Elbow	Male Elbow	Male Elbow	Male Elbow	Male Elbow	Male Elbow	Male Elbow
Part Number	SHME 4-2N	SHME 4-4N	SHME 6-2N	SHME 6-4N	SHME 6-6N	SHME 8-6N	SHME 8-6N
Dimensions
Angle	45º	45º	45º	45º	45º	45º	45º
Dimension A	15.24mm	15.24mm	16.76mm	16.76mm	16.76mm	22.86mm	22.86mm
Dimension B	17.78mm	17.78mm	19.30mm	19.30mm	19.30mm	21.84mm	21.84mm
Dimension I	17.27mm	17.27mm	20.57mm	20.57mm	21.84mm	21.84mm	21.84mm
Dimension L	24.63mm	24.63mm	27.94mm	27.94mm	29.21mm	32.00mm	32.00mm
Dimension L1	16.51mm	21.08mm	18.28mm	22.86mm	24.13mm	24.13mm	24.13mm
Dimension d [Min]	4.82mm	4.82mm	4.82mm	7.11mm	7.11mm	9.65mm	9.65mm
End Size	44204in	44200in	44204in	44200in	44263in	44263in	44263in
Tube Outside Diameter D	1/4in	1/4in	3/8in	3/8in	3/8in	1/2in	1/2in
Width Across Flats H	9/16in	9/16in	11/16in	11/16in	11/16in	7/8in	7/8in
Width Across Flats h	1/2in	1/2in	5/8in	5/8in	13/16in	13/16in	13/16in
Specifications
End Type	Female National Pipe Thread (NPT)	Female National Pipe Thread (NPT)	Female National Pipe Thread (NPT)	Female National Pipe Thread (NPT)	Female National Pipe Thread (NPT)	Female National Pipe Thread (NPT)	Female National Pipe Thread (NPT)
Inch/Metric	Inch	Inch	Inch	Inch	Inch	Inch	Inch
Material	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Description	SHME 1/4 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow	SHME 1/4 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow	SHME 3/8 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow	SHME 3/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow	SHME 3/8 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow	SHME 1/2 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow	SHME 1/2 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow
