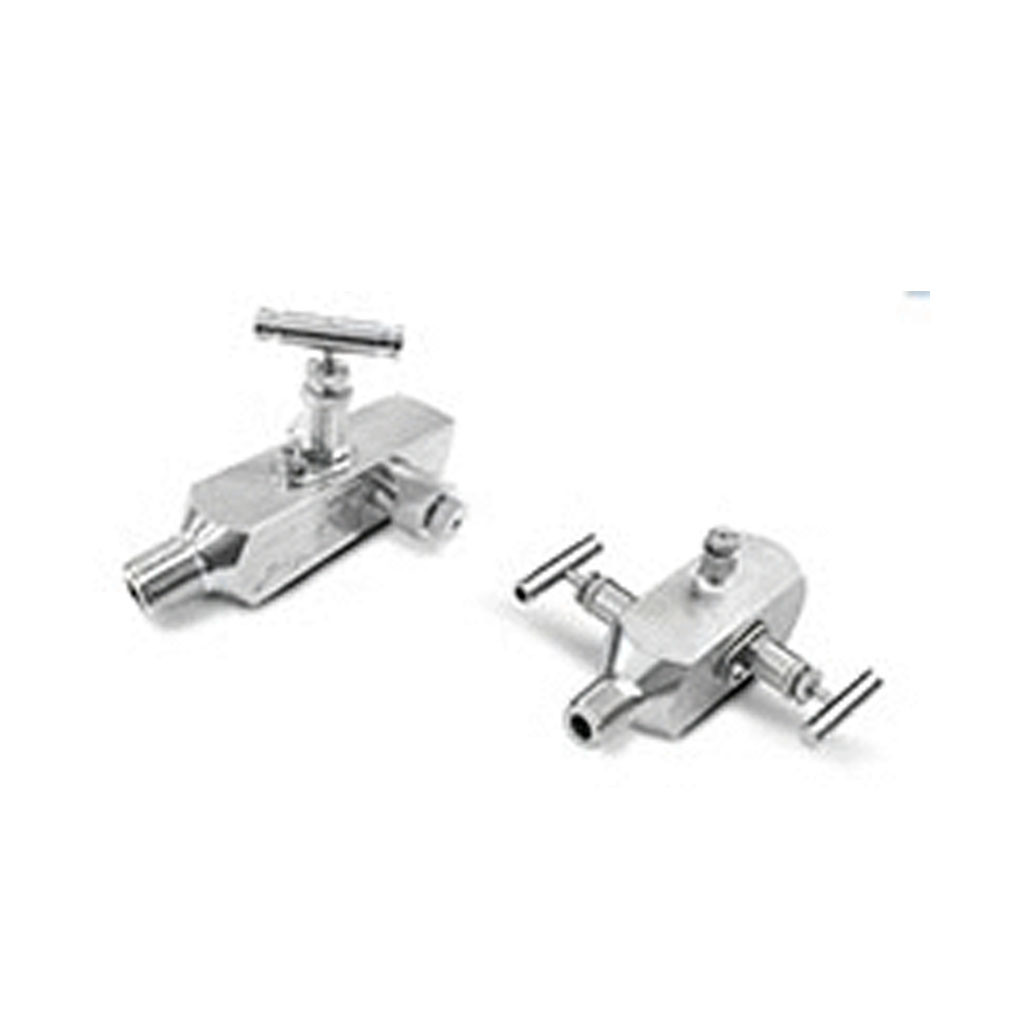

SGRV Gauge Root Valves
Stainless Steel construction 1/2 in. and 3/4 in, male to 1/2 in. female end connections 1/2 in. female gauge ports standard
3 Items in SGRV Gauge Root Valves
side-scroll to see full table
 |
|
| |
| Part# | SGRV-MF-8N | SGRV-MF-8N-MR | SGRV-MF-8N-MR |
| Information | |||
| Type |
Root Valve |
Root Valve |
Root Valve |
| Part Number |
SGRV-MF-8N |
SGRV-MF-8N-MR |
SGRV-MF-8N-MR |
| Dimensions | |||
| Dimension A |
68.4mm |
68.4mm |
68.4mm |
| Dimension B |
75.0mm |
75.0mm |
75.0mm |
| Dimension C |
136.0mm |
136.0mm |
136.0mm |
| Dimension D |
- in
38.1mm |
38.1in
45.0mm |
38.1in
45.0mm |
| Dimension E |
32.0mm |
32.0mm |
32.0mm |
| Dimension F |
45.0mm |
- mm |
- mm |
| End Size |
44198in |
44198in |
44198in |
| End Size 2 |
44198in |
44198in |
44198in |
| Operating Pressure [Max] |
413bar
6000psig |
413bar
6000psig |
413bar
6000psig |
| Orifice |
0.125in
3.2mm |
0.125; 0.250in
3.2; 6.4mm |
0.125; 0.250in
3.2; 6.4mm |
| Temperature Rating with Polytetrafluoroethylene (PTFE) Packing |
-54 to 232ºC
-65 to 450ºF |
-54 to 232ºC
-65 to 450ºF |
-54 to 232ºC
-65 to 450ºF |
| Specifications | |||
| End Type |
Male National Pipe Thread (MNPT) |
Male National Pipe Thread (MNPT) |
Male National Pipe Thread (MNPT) |
| End Type 2 |
Female National Pipe Thread (FNPT) |
Female National Pipe Thread (FNPT) |
Female National Pipe Thread (FNPT) |
| Inch/Metric |
Inch |
Inch |
Inch |
| Series |
SGRV |
SGRV |
SGRV |
| Description |
SGRV 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, 6000 psi Working Pressure [Max] Gauge Root Valve |
SGRV 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, National Association of Corrosion Engineers (NACE)-Rated, 6000 psi Working Pressure [Max] Process End Connection Size Gauge Root Valve |
SGRV 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, National Association of Corrosion Engineers (NACE)-Rated, 6000 psi Working Pressure [Max] Process End Connection Size Gauge Root Valve |
| Material |
316 Stainless Steel |
- |
- |
