SGC Gauge Connectors
Downloads
8 Items in SGC Gauge Connectors
side-scroll to see full table
 |
|
|
|
|
|
|
| |
| Part# | SGC 4-4G | SGC 4-8G | SGC 6-4G | SGC 6-6G | SGC 6M-4G | SGC 8-4G | SGC 8-8G | SGC 8-8G |
| Information | ||||||||
| Type |
Gauge Connector |
Gauge Connector |
Gauge Connector |
Gauge Connector |
Gauge Connector |
Gauge Connector |
Gauge Connector |
Gauge Connector |
| Part Number |
SGC 4-4G |
SGC 4-8G |
SGC 6-4G |
SGC 6-6G |
SGC 6M-4G |
SGC 8-4G |
SGC 8-8G |
SGC 8-8G |

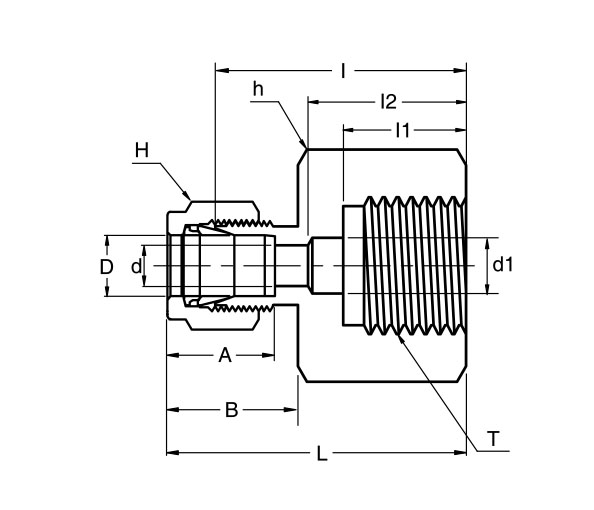

| Dimensions | ||||||||
| Dimension A |
15.24mm |
15.24mm |
16.76mm |
16.76mm |
15.3mm |
22.86mm |
22.86mm |
22.86mm |
| Dimension B |
17.78mm |
17.78mm |
19.30mm |
19.30mm |
17.7mm |
21.84mm |
21.84mm |
21.84mm |
| Dimension I |
30.22mm |
36.07mm |
31.24mm |
34.54mm |
30.2mm |
31.80mm |
38.10mm |
38.10mm |
| Dimension I1 |
13mm |
18.80mm |
14.20mm |
18.80mm |
13mm |
13mm |
18.80mm |
18.80mm |
| Dimension I2 |
17mm |
24.90mm |
- mm |
- mm |
17mm |
- mm |
- mm |
- mm |
| Dimension L |
37.59mm |
43.43mm |
38.61mm |
41.91mm |
37.6mm |
41.95mm |
48.26mm |
48.26mm |
| Dimension d [Min] |
4.82mm |
4.82mm |
5.58mm |
6.60mm |
4.8mm |
5.58mm |
7.11mm |
7.11mm |
| Dimension d1 |
5.58mm |
6.60mm |
- mm |
- mm |
5.5mm |
- mm |
7.11mm |
7.11mm |
| End Size |
44200in |
44198in |
44200in |
44263in |
44200in |
44200in |
44198in |
44198in |
| Tube Outside Diameter D |
1/4in
- mm |
1/4in
- mm |
3/8in
- mm |
3/8in
- mm |
- in
6mm |
1/2in
- mm |
1/2in
- mm |
1/2in
- mm |
| Width Across Flats H |
9/16in
- mm |
9/16in
- mm |
11/16in
- mm |
11/16in
- mm |
- in
14mm |
7/8in
- mm |
7/8in
- mm |
7/8in
- mm |
| Width Across Flats h |
3/4in
- mm |
1-1/16in
- mm |
3/4in
- mm |
15/16in
- mm |
- in
19mm |
7/8in
- mm |
1-1/16in
- mm |
1-1/16in
- mm |
| Specifications | ||||||||
| End Type |
International Standardization of Organization (ISO) Parallel Thread |
International Standardization of Organization (ISO) Parallel Thread |
International Standardization of Organization (ISO) Parallel Thread |
International Standardization of Organization (ISO) Parallel Thread |
International Standardization of Organization (ISO) Parallel Thread |
International Standardization of Organization (ISO) Parallel Thread |
International Standardization of Organization (ISO) Parallel Thread |
International Standardization of Organization (ISO) Parallel Thread |
| Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Description |
SGC 1/4 in. Tube Outside Diameter D x 1/4 in. Female British Standard Parallel Pipe (FBSPP) Gauge Connector |
SGC 1/4 in. Tube Outside Diameter D x 1/2 in. Female British Standard Parallel Pipe (FBSPP) Gauge Connector |
SGC 3/8 in. Tube Outside Diameter D x 1/4 in. Female British Standard Parallel Pipe (FBSPP) Gauge Connector |
SGC 3/8 in. Tube Outside Diameter D x 3/8 in. Female British Standard Parallel Pipe (FBSPP) Gauge Connector |
SGC 6 mm Tube Outside Diameter D x 1/4 in. Female British Standard Parallel Pipe (FBSPP) Gauge Connector |
SGC 1/2 in. Tube Outside Diameter D x 1/4 in. Female British Standard Parallel Pipe (FBSPP) Gauge Connector |
SGC 1/2 in. Tube Outside Diameter D x 1/2 in. Female British Standard Parallel Pipe (FBSPP) Gauge Connector |
SGC 1/2 in. Tube Outside Diameter D x 1/2 in. Female British Standard Parallel Pipe (FBSPP) Gauge Connector |
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Metric |
Inch |
Inch |
Inch |
