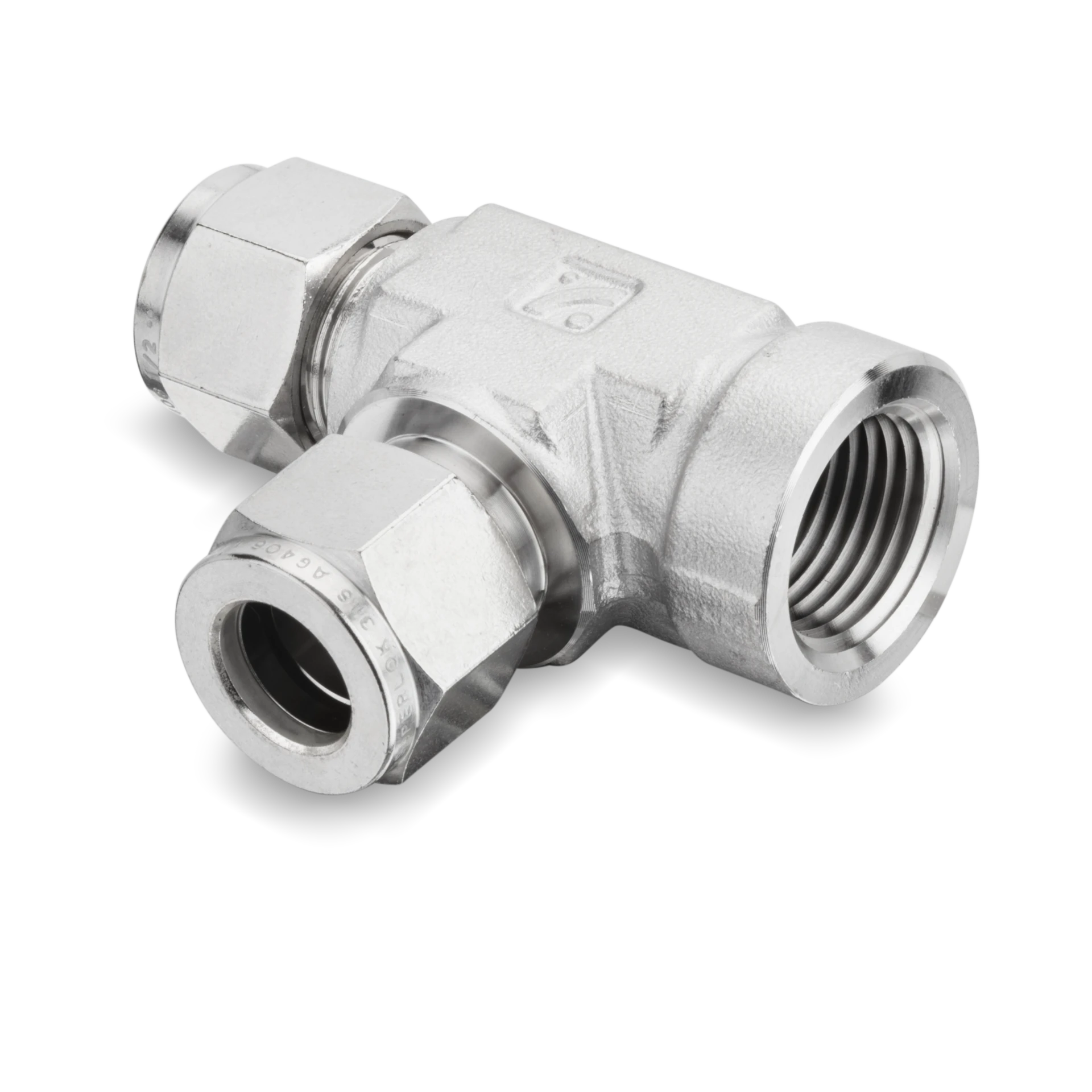

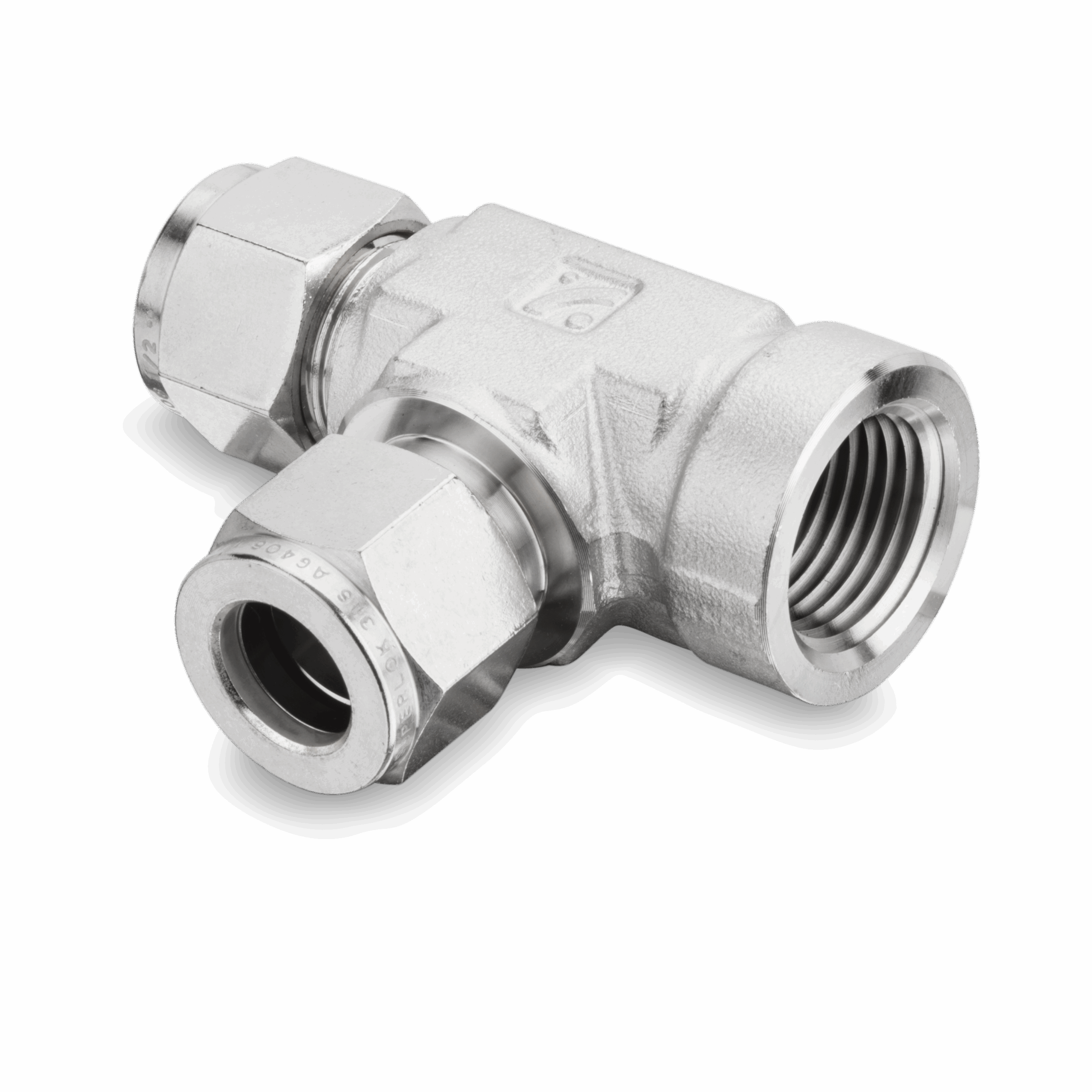

SFRT Female Run Tees
Downloads
10 Items in SFRT Female Run Tees
side-scroll to see full table
 |
|
|
|
|
|
|
|
|
| |
| Part# | SFRT 4-2N | SFRT 4-4N | SFRT 6-4N | SFRT 6M-4N | SFRT 8-6N | SFRT 8-8N | SFRT 12-12N | SFRT 12M-8N | SFRT 16-12N | SFRT 16-12N |
| Information | ||||||||||
| Type |
Female Tee |
Female Tee |
Female Tee |
Female Tee |
Female Tee |
Female Tee |
Female Tee |
Female Tee |
Female Tee |
Female Tee |
| Part Number |
SFRT 4-2N |
SFRT 4-4N |
SFRT 6-4N |
SFRT 6M-4N |
SFRT 8-6N |
SFRT 8-8N |
SFRT 12-12N |
SFRT 12M-8N |
SFRT 16-12N |
SFRT 16-12N |
| Dimensions | ||||||||||
| Dimension A |
15.24mm |
15.24mm |
16.76mm |
15.3mm |
22.86mm |
22.86mm |
24.38mm |
22.8mm |
31.24mm |
31.24mm |
| Dimension B |
17.78mm |
17.78mm |
19.30mm |
17.7mm |
21.84mm |
21.84mm |
21.84mm |
22.0mm |
26.41mm |
26.41mm |
| Dimension I |
19.55mm |
22.35mm |
23.87mm |
27.2mm |
25.90mm |
28.70mm |
34.54mm |
29.7mm |
36.83mm |
36.83mm |
| Dimension L |
26.92mm |
29.71mm |
31.24mm |
34.5mm |
36.06mm |
39.87mm |
44.70mm |
40.0mm |
49.02mm |
49.02mm |
| Dimension L1 |
19.05mm |
22.35mm |
22.35mm |
28.4mm |
22.35mm |
28.44mm |
31.75mm |
28.4mm |
31.75mm |
31.75mm |
| Dimension d [Min] |
4.82mm |
4.82mm |
7.11mm |
4.8mm |
10.41mm |
10.41mm |
15.74mm |
9.5mm |
22.35mm |
22.35mm |
| End Size |
44204in |
44200in |
44200in |
44200in |
44263in |
44198in |
44259in |
44198in |
44259in |
44259in |
| Tube Outside Diameter D |
1/4in
- mm |
1/4in
- mm |
3/8in
- mm |
- in
6mm |
1/2in
- mm |
1/2in
- mm |
3/4in
- mm |
- in
12mm |
1in
- mm |
1in
- mm |
| Width Across Flats H |
9/16in
- mm |
9/16in
- mm |
11/16in
- mm |
- in
14mm |
7/8in
- mm |
7/8in
- mm |
1-1/8in
- mm |
- in
22mm |
1-1/2in
- mm |
1-1/2in
- mm |
| Width Across Flats h |
1/2in
- mm |
11/16in
- mm |
11/16in
- mm |
- in
17.46mm |
13/16in
- mm |
1in
- mm |
1-3/8in
- mm |
- in
25.40mm |
1-3/8in
- mm |
1-3/8in
- mm |
| Specifications | ||||||||||
| End Type |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
| Industry Standards/Certifications |
American National Standards Institute (ANSI) B1.20.1 |
American National Standards Institute (ANSI) B1.20.1 |
American National Standards Institute (ANSI) B1.20.1 |
American National Standards Institute (ANSI) B1.20.1 |
American National Standards Institute (ANSI) B1.20.1 |
American National Standards Institute (ANSI) B1.20.1 |
American National Standards Institute (ANSI) B1.20.1 |
American National Standards Institute (ANSI) B1.20.1 |
American National Standards Institute (ANSI) B1.20.1 |
American National Standards Institute (ANSI) B1.20.1 |
| Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Description |
SFRT 1/4 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Thread Female Run Tee |
SFRT 1/4 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread Female Run Tee |
SFRT 3/8 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread Female Run Tee |
SFRT 6 mm Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread Female Run Tee |
SFRT 1/2 in. Tube Outside Diameter D x 3/8 in. Female National Pipe Taper (FNPT) Thread Female Run Tee |
SFRT 1/2 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread Female Run Tee |
SFRT 3/4 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Thread Female Run Tee |
SFRT 12 mm Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread Female Run Tee |
SFRT 1 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Thread Female Run Tee |
SFRT 1 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Thread Female Run Tee |
| Inch/Metric |
Inch |
Inch |
Inch |
Metric |
Inch |
Inch |
Inch |
Metric |
Inch |
Inch |
