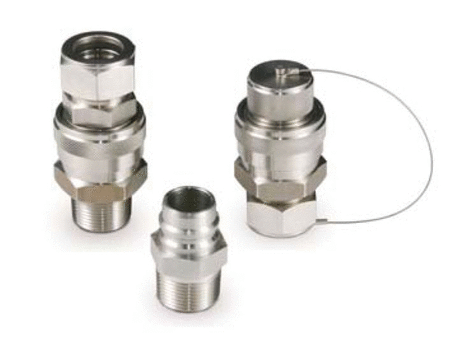

SFQC Full Flow Quick Connect Stems
Proven ball – lock mechanism provides positive connection. Simple push – pull action to connect and disconnect lines – no tools required. Compact coupling offers full flow without orifice restrictions. O-ring is easily replaced without disassembling
5 Items in SFQC Full Flow Quick Connect Stems
side-scroll to see full table
 |
|
|
|
| |
| Part# | SFQC2P-F4N | SFQC2P-M4N | SFQC2P-S4 | SFQC2P-S6 | SFQC2P-S6 |
| Information | |||||
| Type |
Connect Stem |
Connect Stem |
Connect Stem |
Connect Stem |
Connect Stem |
| Part Number |
SFQC2P-F4N |
SFQC2P-M4N |
SFQC2P-S4 |
SFQC2P-S6 |
SFQC2P-S6 |
| Dimensions | |||||
| Dimension A |
40.6mm |
40.4mm |
45.0mm |
45.0mm |
45.0mm |
| Dimension F |
19.1mm |
14.3mm |
14.3mm |
17.5mm |
17.5mm |
| End Size |
44200in |
44200in |
44200in |
44263in |
44263in |
| Insertion Depth |
0.78in
19.8mm |
0.78in
19.8mm |
0.78in
19.8mm |
0.78in
19.8mm |
0.78in
19.8mm |
| Orifice [Min] |
6.1mm |
6.1mm |
4.8mm |
6.1mm |
6.1mm |
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature |
6.8bar
100psig |
6.8bar
100psig |
6.8bar
100psig |
6.8bar
100psig |
6.8bar
100psig |
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature |
413bar
600psig |
413bar
600psig |
413bar
600psig |
413bar
600psig |
413bar
600psig |
| Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature |
6.8bar
100psig |
6.8bar
100psig |
6.8bar
100psig |
6.8bar
100psig |
6.8bar
100psig |
| Pressure Rating Brass with Nitrile Butadiene Rubber (NBR) O-Ring at 70 (20 ºC) Temperature |
275bar
4000psig |
275bar
4000psig |
275bar
4000psig |
275bar
4000psig |
275bar
4000psig |
| Specifications | |||||
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
| Material |
316 Stainless Steel, Brass |
316 Stainless Steel, Brass |
316 Stainless Steel, Brass |
316 Stainless Steel, Brass |
316 Stainless Steel, Brass |
| Cv Coefficient |
1.7 |
1.7 |
2.2 |
2.8 |
2.8 |
| Description |
SFQC 1/4 in. x 1/4 in. Female National Pipe Taper (FNPT) Full Flow Quick Connect Stem |
SFQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Full Flow Quick Connect Stem |
SFQC 1/4 in. x 1/4 in. Tube Outside Diameter Full Flow Quick Connect Stem |
SFQC 1/4 in. x 3/8 in. Tube Outside Diameter Full Flow Quick Connect Stem |
SFQC 1/4 in. x 3/8 in. Tube Outside Diameter Full Flow Quick Connect Stem |
| End Type |
Female National Pipe Thread (FNPT) Pipe Taper (PT) |
Male National Pipe Thread (MNPT) |
- |
- |
- |
