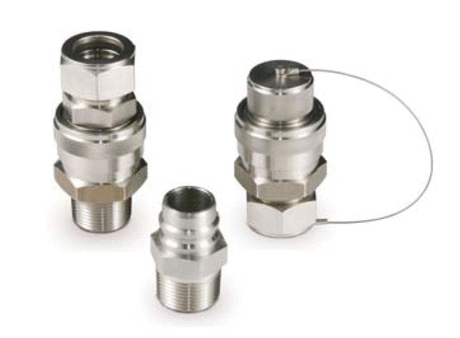

SFQC Full Flow Quick Connect Body Protectors
Proven ball – lock mechanism provides positive connection. Simple push – pull action to connect and disconnect lines – no tools required. Compact coupling offers full flow without orifice restrictions. O-ring is easily replaced without disassembling
1 Items in SFQC Full Flow Quick Connect Body Protectors
side-scroll to see full table
|
|
| Part# | SFQC2-BP |
| Information | |
| Part Number |
SFQC2-BP
|
| Type |
Connect Body Protector
|
| Dimensions | |
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature |
6.8bar
100psig
|
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature |
413bar
600psig
|
| Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature |
6.8bar
100psig
|
| Pressure Rating Brass with Nitrile Butadiene Rubber (NBR) O-Ring at 70 (20 ºC) Temperature |
275bar
4000psig
|
| Specifications | |
| Description |
SFQC Full Flow Quick Connect Body Protectors
|
| Inch/Metric |
Inch
|
| Material |
316 Stainless Steel, Brass
|
