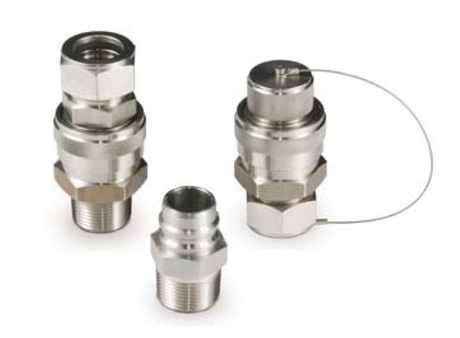

SFQC Full Flow Quick Connect Bodies
Proven ball – lock mechanism provides positive connection. Simple push – pull action to connect and disconnect lines – no tools required. Compact coupling offers full flow without orifice restrictions. O-ring is easily replaced without disassembling
6 Items in SFQC Full Flow Quick Connect Bodies
side-scroll to see full table
|
|
|
|
|
|
|
| Part# | SFQC2B-F4N | SFQC2B-M4N | SFQC2B-S4 | SFQC2B-S6 | SFQC3B-M8N | SFQC3B-M8N |
| Information | ||||||
| Type |
Connect Body
|
Connect Body
|
Connect Body
|
Connect Body
|
Connect Body
|
Connect Body
|
| Part Number |
SFQC2B-F4N
|
SFQC2B-M4N
|
SFQC2B-S4
|
SFQC2B-S6
|
SFQC3B-M8N
|
SFQC3B-M8N
|

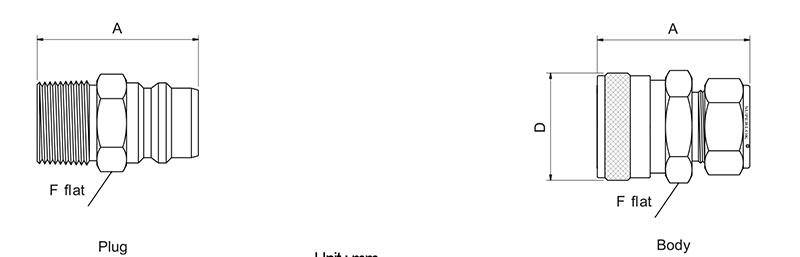

| Dimensions | ||||||
| Dimension A |
38.1mm
|
40.0mm
|
45.7mm
|
46.0mm
|
52.8mm
|
52.8mm
|
| Dimension D |
22.2mm
|
22.2mm
|
22.2mm
|
22.2mm
|
33.0mm
|
33.0mm
|
| Dimension F |
19.1mm
|
17.5mm
|
17.5mm
|
17.5mm
|
27.0mm
|
27.0mm
|
| End Size |
44200in
|
44200in
|
44200in
|
44263in
|
44198in
|
44198in
|
| Insertion Depth |
0.78in
19.8mm
|
0.78in
19.8mm
|
0.78in
19.8mm
|
0.78in
19.8mm
|
0.81in
20.6mm
|
0.81in
20.6mm
|
| Orifice [Min] |
9.7mm
|
6.4mm
|
4.8mm
|
7.1mm
|
12.7mm
|
12.7mm
|
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature |
6.8bar
100psig
|
6.8bar
100psig
|
6.8bar
100psig
|
6.8bar
100psig
|
6.8bar
100psig
|
6.8bar
100psig
|
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature |
413bar
600psig
|
413bar
600psig
|
413bar
600psig
|
413bar
600psig
|
413bar
600psig
|
413bar
600psig
|
| Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature |
6.8bar
100psig
|
6.8bar
100psig
|
6.8bar
100psig
|
6.8bar
100psig
|
6.8bar
100psig
|
6.8bar
100psig
|
| Pressure Rating Brass with Nitrile Butadiene Rubber (NBR) O-Ring at 70 (20 ºC) Temperature |
275bar
4000psig
|
275bar
4000psig
|
275bar
4000psig
|
275bar
4000psig
|
206bar
3000psig
|
206bar
3000psig
|
| Specifications | ||||||
| Inch/Metric |
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
| Material |
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
| Description |
SFQC 1/4 in. x 1/4 in. Female National Pipe Taper (FNPT) Full Flow Quick Connect Body
|
SFQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) T Full Flow Quick Connect Body
|
SFQC 1/4 in. x 1/4 in. Tube Outside Diameter Full Flow Quick Connect Body
|
SFQC 1/4 in. x 3/8 in. Tube Outside Diameter Full Flow Quick Connect Body
|
SFQC 1/2 in. x 1/2 in. Male National Pipe Taper (MNPT) Full Flow Quick Connect Body
|
SFQC 1/2 in. x 1/2 in. Male National Pipe Taper (MNPT) Full Flow Quick Connect Body
|
| End Type |
Female National Pipe Thread (FNPT) Pipe Taper (PT)
|
Male National Pipe Thread (MNPT)
|
-
|
-
|
Male National Pipe Thread (MNPT) Pipe Taper (PT)
|
Male National Pipe Thread (MNPT) Pipe Taper (PT)
|
