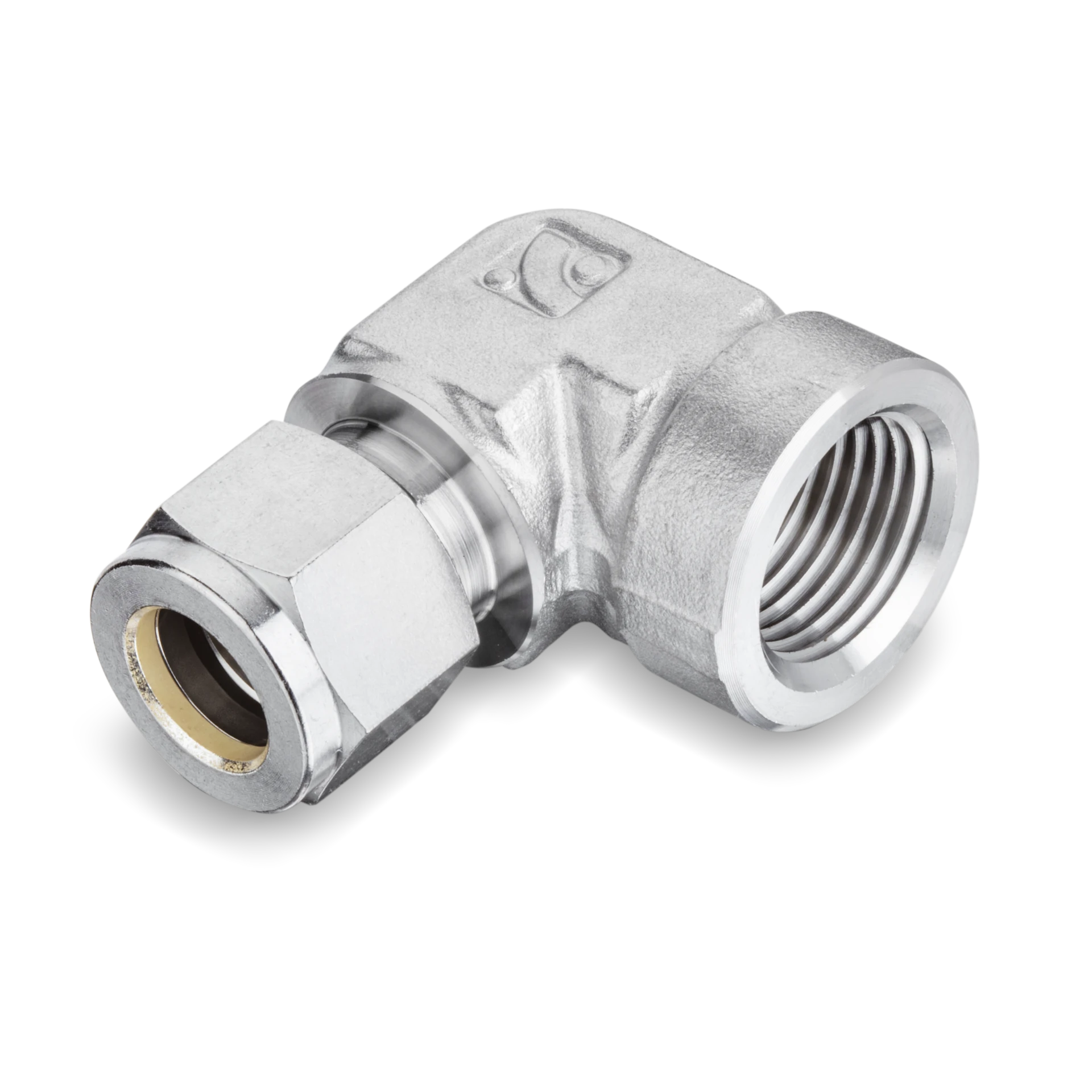

SFE 90 Degree Female Elbows
20 Items in SFE 90 Degree Female Elbows
side-scroll to see full table
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| Part# | SFE 2-2N | SFE 2-4N | SFE 4-2N | SFE 4-4N | SFE 4-6N | SFE 4-8N | SFE 6-2N | SFE 6-4N | SFE 6-6N | SFE 6-8N | SFE 6M-4N | SFE 8-4N | SFE 8-6N | SFE 8-8N | SFE 10-8N | SFE 12-8N | SFE 12-12N | SFE 12M-8N | SFE 16-12N | SFE 16-12N |
| Information | ||||||||||||||||||||
| Type |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
| Part Number |
SFE 2-2N |
SFE 2-4N |
SFE 4-2N |
SFE 4-4N |
SFE 4-6N |
SFE 4-8N |
SFE 6-2N |
SFE 6-4N |
SFE 6-6N |
SFE 6-8N |
SFE 6M-4N |
SFE 8-4N |
SFE 8-6N |
SFE 8-8N |
SFE 10-8N |
SFE 12-8N |
SFE 12-12N |
SFE 12M-8N |
SFE 16-12N |
SFE 16-12N |
| Dimensions | ||||||||||||||||||||
| Angle |
90º |
90º |
90º |
90º |
90º |
90º |
90º |
90º |
90º |
90º |
90º |
90º |
90º |
90º |
90º |
90º |
90º |
90º |
90º |
90º |
| Dimension A |
12.70mm |
12.70mm |
15.24mm |
15.24mm |
15.24mm |
15.24mm |
16.76mm |
16.76mm |
16.76mm |
16.76mm |
15.3mm |
22.86mm |
22.86mm |
22.86mm |
24.38mm |
24.38mm |
24.38mm |
22.8mm |
31.24mm |
31.24mm |
| Dimension B |
15.24mm |
15.24mm |
17.78mm |
17.78mm |
17.78mm |
17.78mm |
19.30mm |
19.30mm |
19.30mm |
19.30mm |
17.7mm |
21.84mm |
21.84mm |
21.84mm |
21.84mm |
21.84mm |
21.84mm |
22.0mm |
26.41mm |
26.41mm |
| Dimension I |
18.03mm |
20.82mm |
19.55mm |
22.35mm |
24.38mm |
27.17mm |
23.11mm |
23.87mm |
25.90mm |
28.70mm |
22.4mm |
25.90mm |
25.90mm |
28.70mm |
29.71mm |
29.71mm |
34.54mm |
28.70mm |
36.83mm |
36.83mm |
| Dimension L |
24.63mm |
27.43mm |
26.92mm |
29.71mm |
31.75mm |
34.54mm |
30.48mm |
31.24mm |
33.27mm |
36.06mm |
29.8mm |
36.06mm |
36.06mm |
38.86mm |
39.87mm |
39.87mm |
44.70mm |
38.8mm |
49.02mm |
49.02mm |
| Dimension L1 |
23.40mm |
29.00mm |
23.40mm |
29.00mm |
22.35mm |
37.00mm |
19.05mm |
29.00mm |
22.35mm |
37.00mm |
22.4mm |
22.35mm |
22.35mm |
37.00mm |
28.44mm |
28.44mm |
31.75mm |
37.00mm |
31.75mm |
31.75mm |
| Dimension d [Min] |
2.28mm |
2.28mm |
4.82mm |
4.82mm |
4.82mm |
4.82mm |
7.11mm |
7.11mm |
7.11mm |
7.11mm |
4.8mm |
10.41mm |
10.41mm |
10.41mm |
12.70mm |
15.74mm |
15.74mm |
9.5mm |
22.35mm |
22.35mm |
| End Size |
44204in |
44200in |
44204in |
44200in |
44263in |
44198in |
44204in |
44200in |
44263in |
44198in |
44200in |
44200in |
44263in |
44198in |
44198in |
44198in |
44259in |
44198in |
44259in |
44259in |
| Tube Outside Diameter D |
1/8in
- mm |
1/8in
- mm |
1/4in
- mm |
1/4in
- mm |
1/4in
- mm |
1/4in
- mm |
3/8in
- mm |
3/8in
- mm |
3/8in
- mm |
3/8in
- mm |
- in
6mm |
1/2in
- mm |
1/2in
- mm |
1/2in
- mm |
5/8in
- mm |
3/4in
- mm |
3/4in
- mm |
- in
12mm |
1in
- mm |
1in
- mm |
| Width Across Flats H |
7/16in
- mm |
7/16in
- mm |
9/16in
- mm |
9/16in
- mm |
9/16in
- mm |
9/16in
- mm |
11/16in
- mm |
11/16in
- mm |
11/16in
- mm |
11/16in
- mm |
- in
14mm |
7/8in
- mm |
7/8in
- mm |
7/8in
- mm |
1in
- mm |
1-1/8in
- mm |
1-1/8in
- mm |
- in
22mm |
1-1/2in
- mm |
1-1/2in
- mm |
| Width Across Flats h |
1/2in
- mm |
11/16in
- mm |
1/2in
- mm |
11/16in
- mm |
13/16in
- mm |
1in
- mm |
5/8in
- mm |
11/16in
- mm |
13/16in
- mm |
1in
- mm |
- in
17.46mm |
13/16in
- mm |
13/16in
- mm |
1in
- mm |
1-1/16in
- mm |
1-1/16in
- mm |
1-3/8in
- mm |
- in
25.40mm |
1-3/8in
- mm |
1-3/8in
- mm |
| Specifications | ||||||||||||||||||||
| End Type |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
Male National Pipe Thread (NPT) |
| Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Description |
SFE 1/8 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 1/8 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 1/4 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 1/4 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 1/4 in. Tube Outside Diameter D x 3/8 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 1/4 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 3/8 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 3/8 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 3/8 in. Tube Outside Diameter D x 3/8 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 3/8 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 6 mm Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 1/2 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 1/2 in. Tube Outside Diameter D x 3/8 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 1/2 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 5/8 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 3/4 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 3/4 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 12 mm Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 1 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
SFE 1 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow |
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Metric |
Inch |
Inch |
