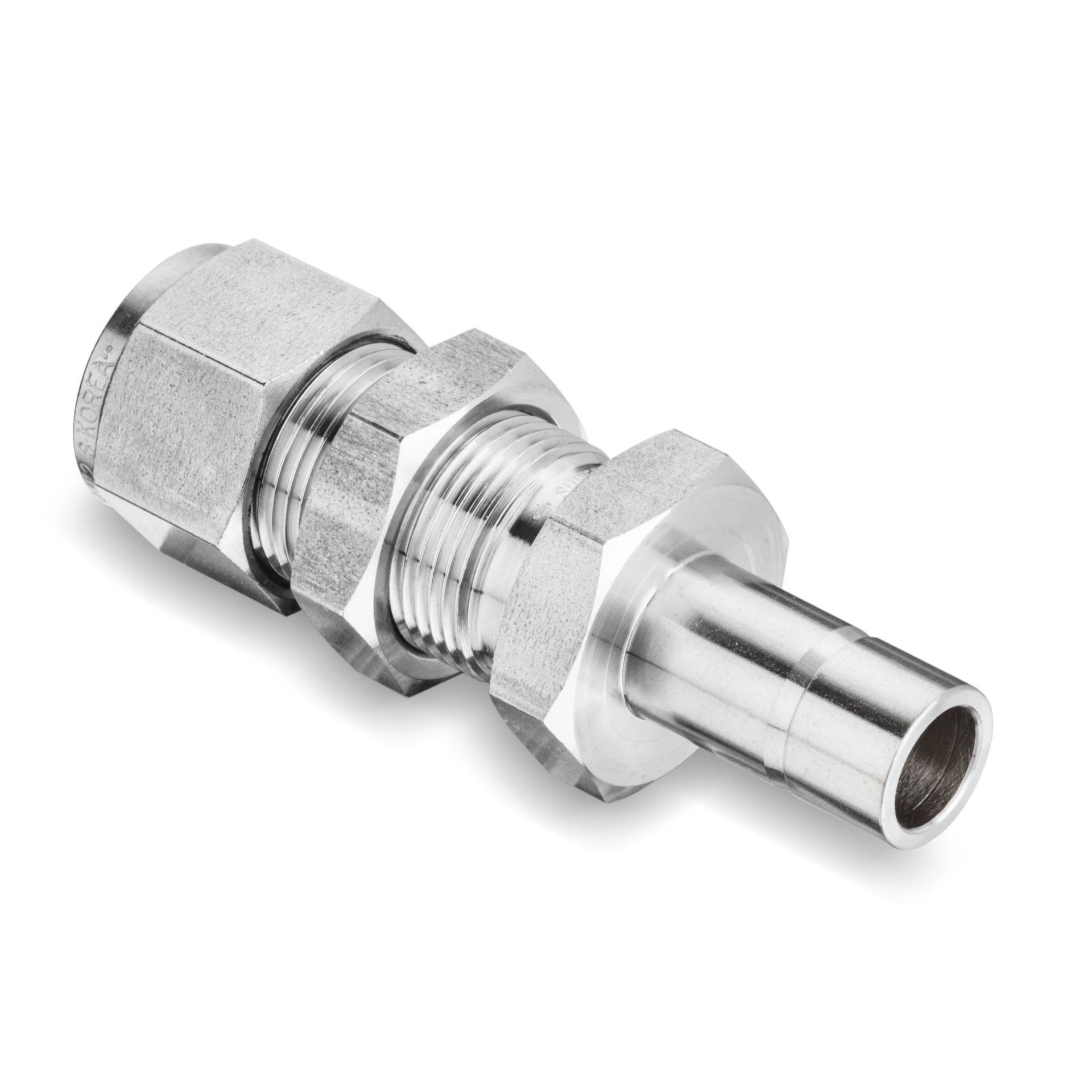

SBR Bulkhead Reducers
Downloads
4 Items in SBR Bulkhead Reducers
side-scroll to see full table
 |
|
|
| |
| Part# | SBR 2-2 | SBR 4-4 | SBR 6-6 | SBR 6-6 |
| Information | ||||
| Type |
Reducer |
Reducer |
Reducer |
Reducer |
| Part Number |
SBR 2-2 |
SBR 4-4 |
SBR 6-6 |
SBR 6-6 |
| Dimensions | ||||
| Dimension A |
12.70mm |
15.24mm |
16.76mm |
16.76mm |
| Dimension I |
42.92mm |
48.51mm |
53.84mm |
53.84mm |
| Dimension I1 |
24.63mm |
26.16mm |
29.46mm |
29.46mm |
| Dimension L |
49.53mm |
55.88mm |
61.21mm |
61.21mm |
| Dimension L1 |
31.24mm |
33.52mm |
36.83mm |
36.83mm |
| Dimension d [Min] |
2.1mm |
4.4mm |
6.9mm |
6.9mm |
| Pannel Hole Drill Size |
8.33mm |
11.50mm |
14.68mm |
14.68mm |
| Pannel Thickness [Max] |
12.70mm |
10.16mm |
11.17mm |
11.17mm |
| Tube Outside Diameter D |
1/8in |
1/4in |
3/8in |
3/8in |
| Width Across Flats H |
7/16in |
9/16in |
11/16in |
11/16in |
| Width Across Flats h |
1/2in |
5/8in |
3/4in |
3/4in |
| Specifications | ||||
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
| Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Description |
SBR 1/8 in. Tube Outside Diameter D x 1/8 in. Tube Stub Bulkhead Reducer |
SBR 1/4 in. Tube Outside Diameter D x 1/4 in. Tube Stub Bulkhead Reducer |
SBR 3/8 in. Tube Outside Diameter D x 3/8 in. Tube Stub Bulkhead Reducer |
SBR 3/8 in. Tube Outside Diameter D x 3/8 in. Tube Stub Bulkhead Reducer |
