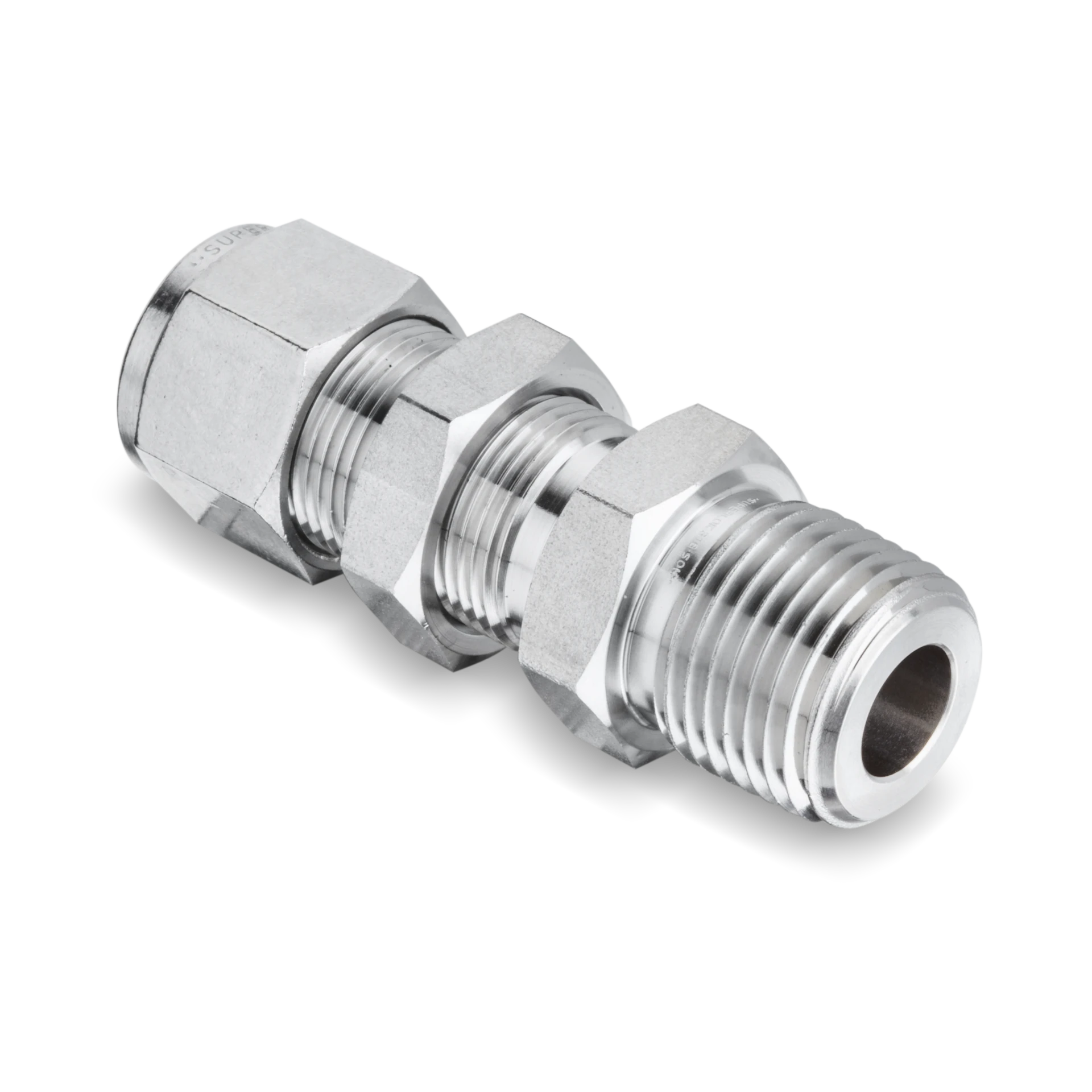

SBMC Bulkhead Male Connectors
10 Items in SBMC Bulkhead Male Connectors
side-scroll to see full table
 |
|
|
|
|
|
|
|
|
| |
| Part# | SBMC 2-2N | SBMC 4-2N | SBMC 4-4N | SBMC 6-4N | SBMC 6-6N | SBMC 6-8N | SBMC 8-6N | SBMC 8-8N | SBMC 12-12N | SBMC 12-12N |
| Information | ||||||||||
| Type |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
Male Connector |
| Part Number |
SBMC 2-2N |
SBMC 4-2N |
SBMC 4-4N |
SBMC 6-4N |
SBMC 6-6N |
SBMC 6-8N |
SBMC 8-6N |
SBMC 8-8N |
SBMC 12-12N |
SBMC 12-12N |
| Dimensions | ||||||||||
| Dimension A |
12.70mm |
15.24mm |
15.24mm |
16.76mm |
16.76mm |
16.76mm |
22.86mm |
22.86mm |
24.38mm |
24.38mm |
| Dimension I |
39.87mm |
42.16mm |
46.73mm |
50.03mm |
50.03mm |
56.38mm |
53.08mm |
58.67mm |
66.04mm |
66.04mm |
| Dimension I1 |
24.63mm |
26.16mm |
26.16mm |
29.46mm |
29.46mm |
29.46mm |
31.75mm |
31.75mm |
37.33mm |
37.33mm |
| Dimension L |
46.48mm |
49.53mm |
54.10mm |
57.4mm |
57.4mm |
63.75mm |
63.24mm |
68.83mm |
76.2mm |
76.2mm |
| Dimension L1 |
31.24mm |
33.52mm |
33.52mm |
36.83mm |
36.83mm |
36.83mm |
41.91mm |
41.91mm |
47.49mm |
47.49mm |
| Dimension d [Min] |
2.28mm |
4.82mm |
4.82mm |
7.11mm |
7.11mm |
7.11mm |
9.65mm |
10.41mm |
15.74mm |
15.74mm |
| End Size |
44204in |
44204in |
44200in |
44200in |
44263in |
44198in |
44263in |
44198in |
44259in |
44259in |
| Pannel Hole Drill Size |
8.33mm |
11.50mm |
11.50mm |
14.68mm |
14.68mm |
14.68mm |
19.44mm |
19.44mm |
25.79mm |
25.79mm |
| Pannel Thickness [Max] |
12.70mm |
10.16mm |
10.16mm |
11.17mm |
11.17mm |
11.17mm |
12.70mm |
12.70mm |
16.76mm |
16.76mm |
| Tube Outside Diameter D |
1/8in |
1/4in |
1/4in |
3/8in |
3/8in |
3/8in |
1/2in |
1/2in |
3/4in |
3/4in |
| Width Across Flats H |
7/16in |
9/16in |
9/16in |
11/16in |
11/16in |
11/16in |
7/8in |
7/8in |
1-1/8in |
1-1/8in |
| Width Across Flats h |
1/2in |
5/8in |
5/8in |
3/4in |
3/4in |
7/8in |
15/16in |
15/16in |
1-3/16in |
1-3/16in |
| Width Across Flats h1 |
1/2in |
5/8in |
5/8in |
3/4in |
3/4in |
3/4in |
15/16in |
15/16in |
1-3/16in |
1-3/16in |
| Specifications | ||||||||||
| End Type |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
| Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Description |
SBMC 1/8 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector |
SBMC 1/4 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector |
SBMC 1/4 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector |
SBMC 3/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector |
SBMC 3/8 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector |
SBMC 3/8 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector |
SBMC 1/2 in. Tube Outside Diameter DX 3/8 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector |
SBMC 1/2 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector |
SBMC 3/4 in. Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector |
SBMC 3/4 in. Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector |
