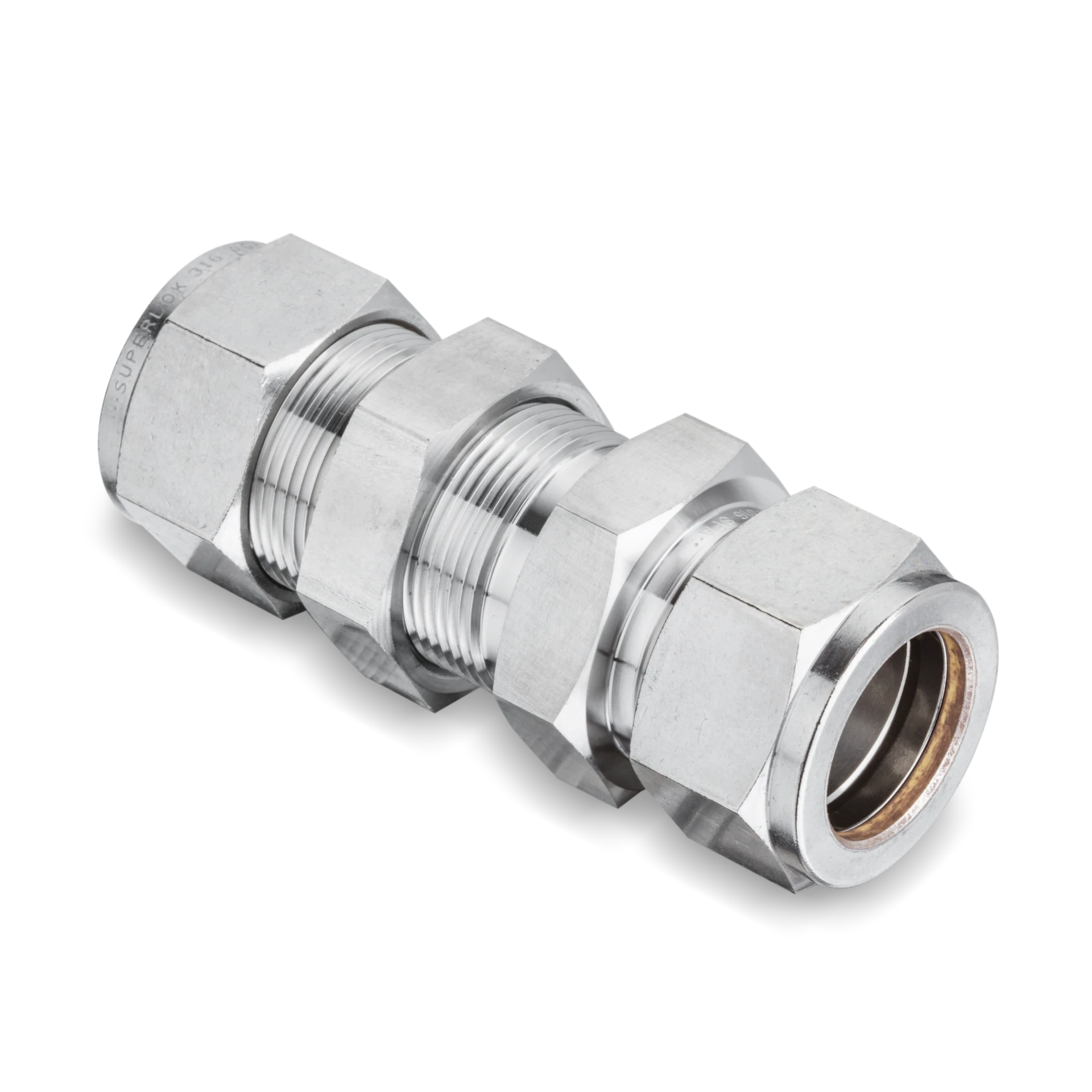

SBHU Bulkhead Unions
Downloads
12 Items in SBHU Bulkhead Unions
side-scroll to see full table
 |
|
|
|
|
|
|
|
|
|
|
| |
| Part# | SBHU-1 | SBHU-2 | SBHU-4 | SBHU-4-TM | SBHU-5 | SBHU-6 | SBHU-6-TM | SBHU-8 | SBHU-8-TM | SBHU-10 | SBHU-12 | SBHU-12 |
| Information | ||||||||||||
| Type |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
Union |
| Part Number |
SBHU-1 |
SBHU-2 |
SBHU-4 |
SBHU-4-TM |
SBHU-5 |
SBHU-6 |
SBHU-6-TM |
SBHU-8 |
SBHU-8-TM |
SBHU-10 |
SBHU-12 |
SBHU-12 |

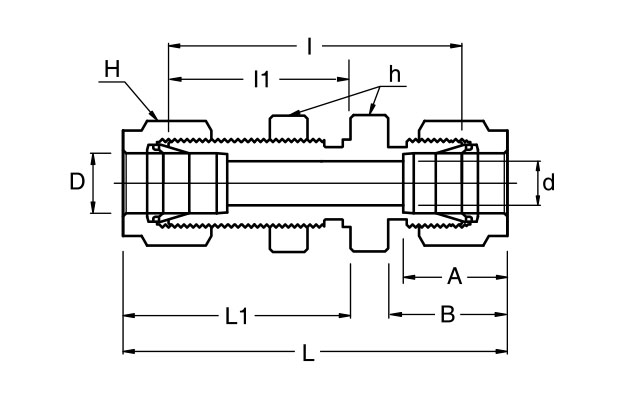

| Dimensions | ||||||||||||
| Dimension A |
8.63mm |
12.70mm |
15.24mm |
15.24mm |
16.25mm |
16.76mm |
16.76mm |
22.86mm |
22.86mm |
24.38mm |
24.38mm |
24.38mm |
| Dimension B |
10.92mm |
15.24mm |
17.78mm |
17.78mm |
18.54mm |
19.30mm |
19.30mm |
21.84mm |
21.84mm |
21.84mm |
21.84mm |
21.84mm |
| Dimension I |
23.87mm |
38.10mm |
42.92mm |
42.92mm |
45.97mm |
47.49mm |
47.49mm |
50.80mm |
50.80mm |
52.32mm |
58.67mm |
58.67mm |
| Dimension I1 |
13.46mm |
24.63mm |
26.16mm |
26.16mm |
28.44mm |
29.46mm |
29.46mm |
31.75mm |
31.75mm |
32.51mm |
37.33mm |
37.33mm |
| Dimension L |
31.50mm |
51.30mm |
57.65mm |
57.65mm |
60.70mm |
62.23mm |
62.23mm |
71.12mm |
71.12mm |
72.64mm |
78.99mm |
78.99mm |
| Dimension L1 |
17.27mm |
31.24mm |
33.52mm |
33.52mm |
35.81mm |
36.83mm |
36.83mm |
41.91mm |
41.91mm |
42.67mm |
47.49mm |
47.49mm |
| Dimension d [Min] |
1.27mm |
2.28mm |
4.82mm |
4.82mm |
6.35mm |
7.11mm |
7.11mm |
10.41mm |
10.41mm |
12.70mm |
15.74mm |
15.74mm |
| Panel Thickness [Max] |
3.05mm |
12.70mm |
10.16mm |
10.16mm |
11.17mm |
11.17mm |
11.17mm |
12.70mm |
12.70mm |
12.70mm |
16.76mm |
16.76mm |
| Size |
5.16mm |
8.33mm |
11.5mm |
11.5mm |
13.09mm |
14.68mm |
14.68mm |
19.440000000000001mm |
19.440000000000001mm |
22.62mm |
25.79mm |
25.79mm |
| Tube Outside Diameter D |
1/16in |
1/8in |
1/4in |
1/4in |
5/16in |
3/8in |
3/8in |
1/2in |
1/2in |
5/8in |
3/4in |
3/4in |
| Width Across Flats H |
5/16in |
7/16in |
9/16in |
9/16in |
5/8in |
11/16in |
11/16in |
7/8in |
7/8in |
1in |
1-1/8in |
1-1/8in |
| Width Across Flats h |
5/16in |
1/2in |
5/8in |
5/8in |
11/16in |
3/4in |
3/4in |
15/16in |
15/16in |
1-1/16in |
1-3/16in |
1-3/16in |
| Specifications | ||||||||||||
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
| Description |
SBHU 1/16 in. Tube Outside Diameter D Bulkhead Union |
SBHU 1/8 in. Tube Outside Diameter D Bulkhead Union |
SBHU 1/4 in. Tube Outside Diameter D Bulkhead Union |
SBHU 1/4 in. Tube Outside Diameter D Bored Through Bulkhead Union |
SBHU 5/16 in. Tube Outside Diameter D Bulkhead Union |
SBHU 3/8 in. Tube Outside Diameter D Bulkhead Union |
SBHU 3/8 in. Tube Outside Diameter D Bored Through Bulkhead Union |
SBHU 1/2 in. Tube Outside Diameter D Bulkhead Union |
SBHU 1/2 in. Tube Outside Diameter D Bored Through Bulkhead Union |
SBHU 5/8 in. Tube Outside Diameter D Bulkhead Union |
SBHU 3/4 in. Tube Outside Diameter D Bulkhead Union |
SBHU 3/4 in. Tube Outside Diameter D Bulkhead Union |
