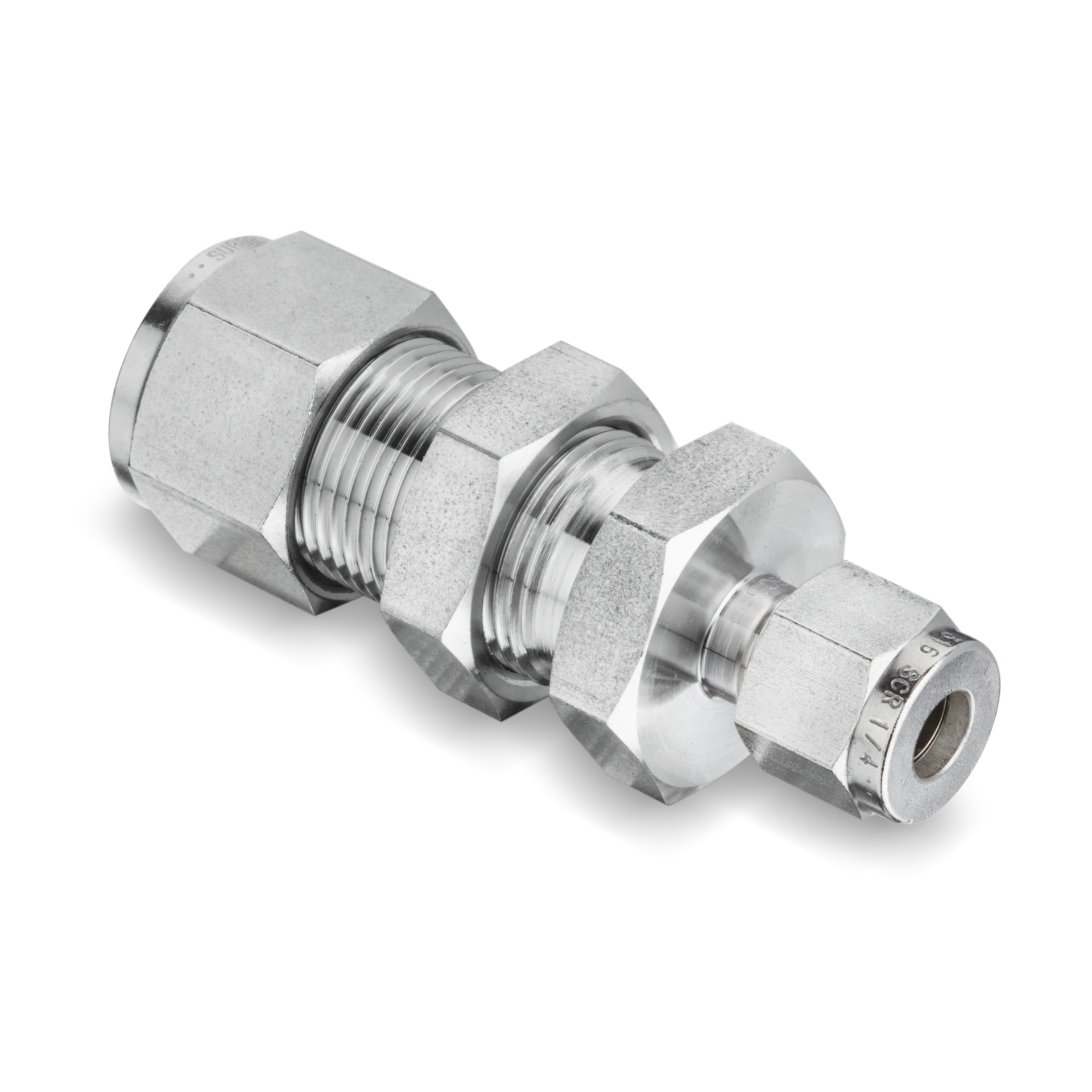

SBHRU Bulkhead Reducing Unions
3 Items in SBHRU Bulkhead Reducing Unions
side-scroll to see full table
 |
|
| |
| Part# | SBHRU 4-2 | SBHRU 6-4 | SBHRU 6-4 |
| Information | |||
| Type |
Union |
Union |
Union |
| Part Number |
SBHRU 4-2 |
SBHRU 6-4 |
SBHRU 6-4 |

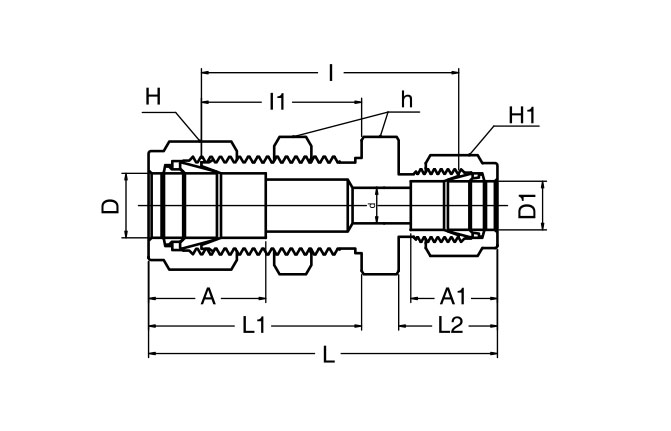

| Dimensions | |||
| Dimension A |
15.24mm |
16.76mm |
16.76mm |
| Dimension A1 |
12.70mm |
15.24mm |
15.24mm |
| Dimension I |
41.14mm |
45.97mm |
45.97mm |
| Dimension I1 |
26.16mm |
29.46mm |
29.46mm |
| Dimension L |
55.11mm |
60.70mm |
60.70mm |
| Dimension L1 |
33.52mm |
36.57mm |
36.57mm |
| Dimension L2 |
15.24mm |
17.78mm |
17.78mm |
| Dimension d [Min] |
2.28mm |
4.82mm |
4.82mm |
| Panel Thickness [Max] |
10.16mm |
11.17mm |
11.17mm |
| Size |
11.5mm |
14.68mm |
14.68mm |
| Tube Outside Diameter D |
1/4in |
3/8in |
3/8in |
| Tube Outside Diameter D1 |
1/8in |
1/4in |
1/4in |
| Width Across Flats H |
9/16in |
11/16in |
11/16in |
| Width Across Flats H1 |
7/16in |
9/16in |
9/16in |
| Width Across Flats h |
5/8in |
3/4in |
3/4in |
| Specifications | |||
| Inch/Metric |
Inch |
Inch |
Inch |
| Description |
SBHRU 1/4 in. Tube Outside Diameter D x 1/8 in. Tube Outside Diameter D1 Bulkhead Reducing Union |
SBHRU 3/8 in. Tube Outside Diameter D x 1/4 in. Tube Outside Diameter D1 Bulkhead Reducing Union |
SBHRU 3/8 in. Tube Outside Diameter D x 1/4 in. Tube Outside Diameter D1 Bulkhead Reducing Union |
