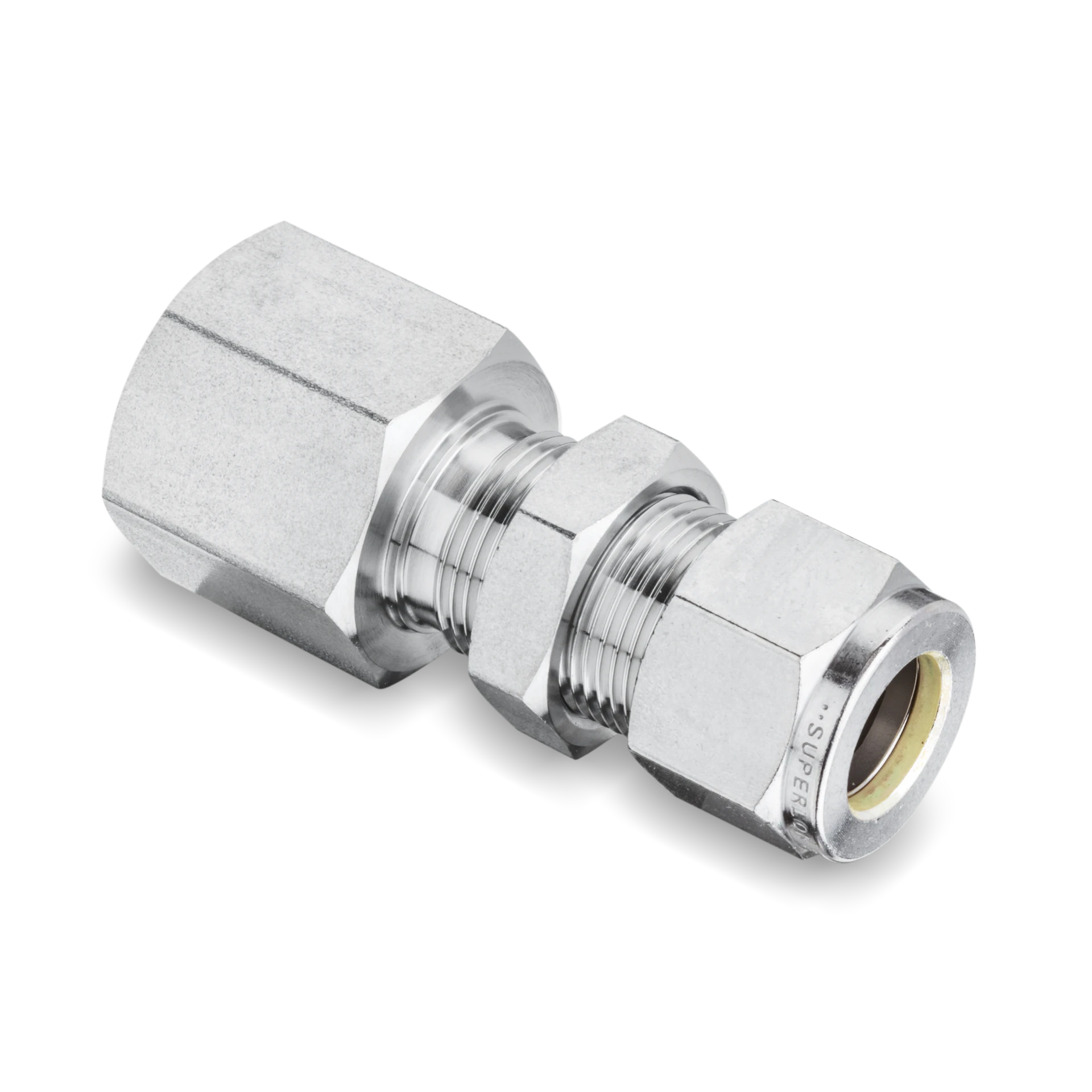

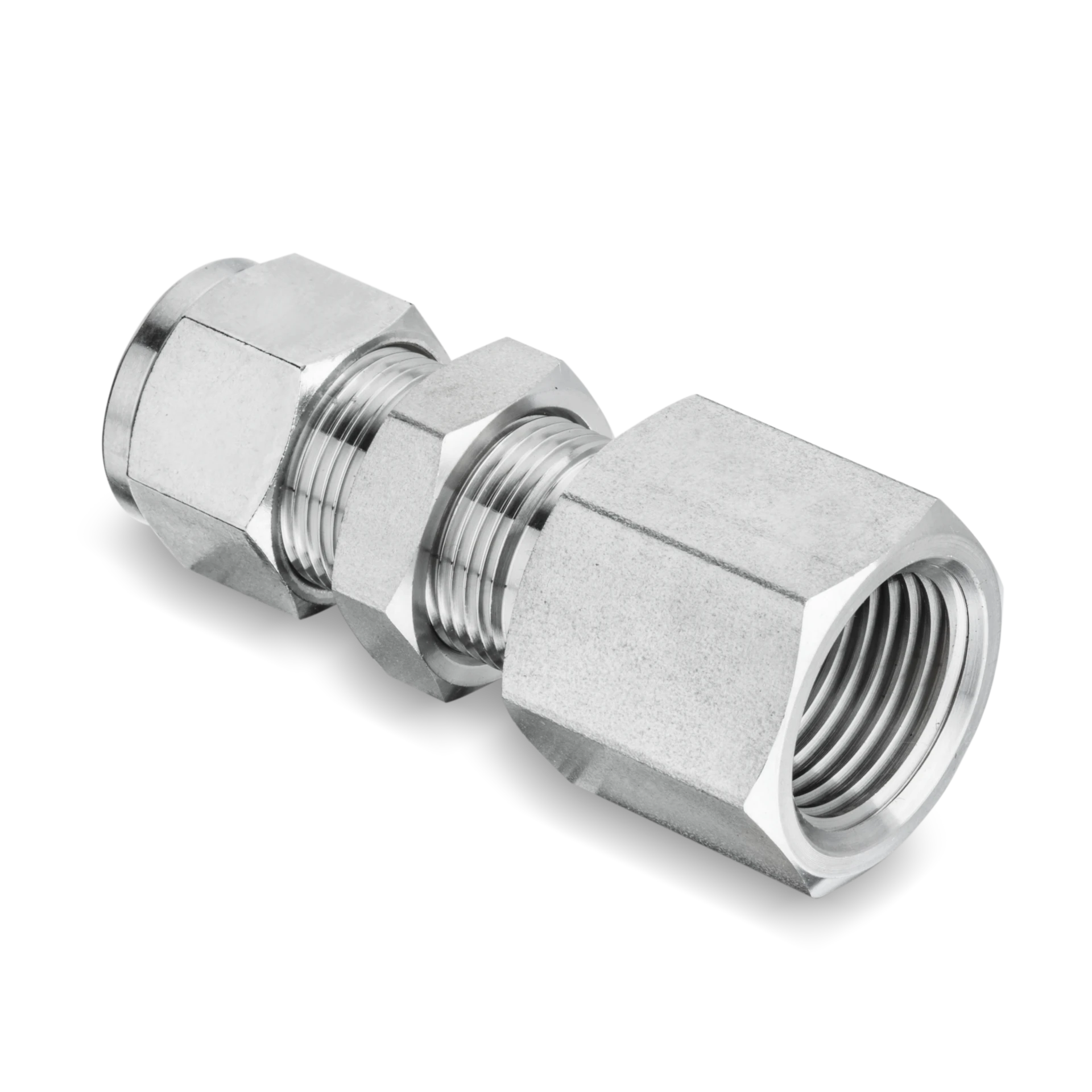

SBFC Bulkhead Female Connectors
8 Items in SBFC Bulkhead Female Connectors
side-scroll to see full table
 |
|
|
|
|
|
|
| |
| Part# | SBFC 2-2N | SBFC 4-2N | SBFC 4-4N | SBFC 6-4N | SBFC 6M-4N | SBFC 8-8N | SBFC 8M-4N | SBFC 8M-4N |
| Information | ||||||||
| Type |
Female Connector |
Female Connector |
Female Connector |
Female Connector |
Female Connector |
Female Connector |
Female Connector |
Female Connector |
| Part Number |
SBFC 2-2N |
SBFC 4-2N |
SBFC 4-4N |
SBFC 6-4N |
SBFC 6M-4N |
SBFC 8-8N |
SBFC 8M-4N |
SBFC 8M-4N |

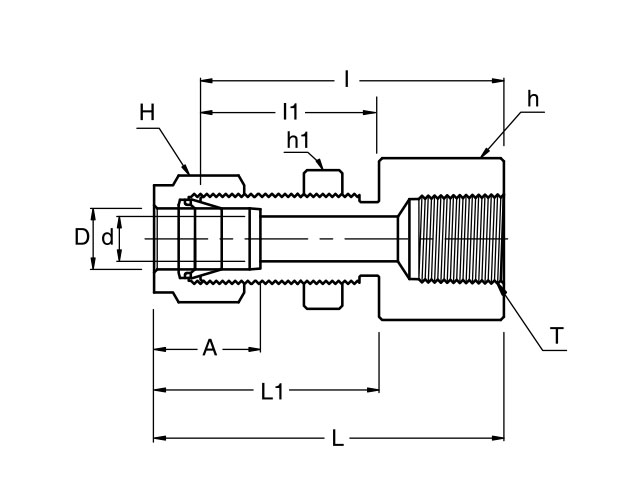

| Dimensions | ||||||||
| Dimension A |
12.70mm |
15.24mm |
15.24mm |
16.76mm |
15.3mm |
22.86mm |
16.2mm |
16.2mm |
| Dimension I |
38.10mm |
39.62mm |
44.45mm |
47.75mm |
44.4mm |
56.38mm |
46.7mm |
46.7mm |
| Dimension I1 |
24.63mm |
26.16mm |
26.16mm |
29.46mm |
26.2mm |
31.75mm |
28.4mm |
28.4mm |
| Dimension L |
44.70mm |
46.99mm |
51.81mm |
55.11mm |
51.80mm |
66.54mm |
53.85mm |
53.85mm |
| Dimension L1 |
31.24mm |
33.52mm |
33.52mm |
36.83mm |
33.60mm |
41.91mm |
35.55mm |
35.55mm |
| Dimension d [Min] |
2.28mm |
4.82mm |
4.82mm |
7.11mm |
4.8mm |
10.41mm |
6.3mm |
6.3mm |
| End Size |
1/8in |
1/8in |
1/4in |
1/4in |
- in |
1/2in |
- in |
- in |
| Pannel Hole Drill Size |
8.33mm |
11.50mm |
11.50mm |
14.68mm |
11.5mm |
19.44mm |
13.1mm |
13.1mm |
| Pannel Thickness [Max] |
12.70mm |
10.16mm |
10.16mm |
11.17mm |
10.2mm |
12.70mm |
11.2mm |
11.2mm |
| Tube Outside Diameter D |
1/8in |
1/4in |
1/4in |
3/8in |
6in |
1/2in |
8in |
8in |
| Width Across Flats H |
7/16in
- mm |
9/16in
- mm |
9/16in
- mm |
11/16in
- mm |
- in
14mm |
7/8in
- mm |
- in
16mm |
- in
16mm |
| Width Across Flats h |
9/16in
- mm |
5/8in
- mm |
3/4in
- mm |
3/4in
- mm |
- in
19mm |
1-1/16in
- mm |
- in
19mm |
- in
19mm |
| Width Across Flats h1 |
1/2in
- mm |
5/8in
- mm |
5/8in
- mm |
3/4in
- mm |
- in
16.0mm |
15/16in
- mm |
- in
17.4mm |
- in
17.4mm |
| Specifications | ||||||||
| End Type |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
National Pipe Thread (NPT) |
| Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Description |
SBFC 1/8 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector |
SBFC 1/4 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector |
SBFC 1/4 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector |
SBFC 3/8 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector |
SBFC 6 mm Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector |
SBFC 1/2 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector |
SBFC 8 mm Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector |
SBFC 8 mm Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector |
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Metric |
Inch |
Metric |
Metric |
