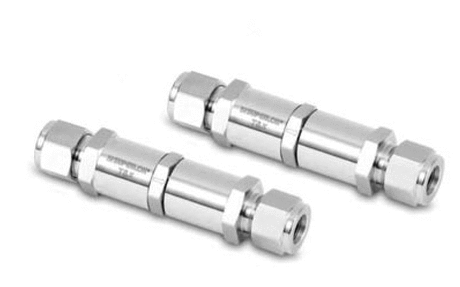

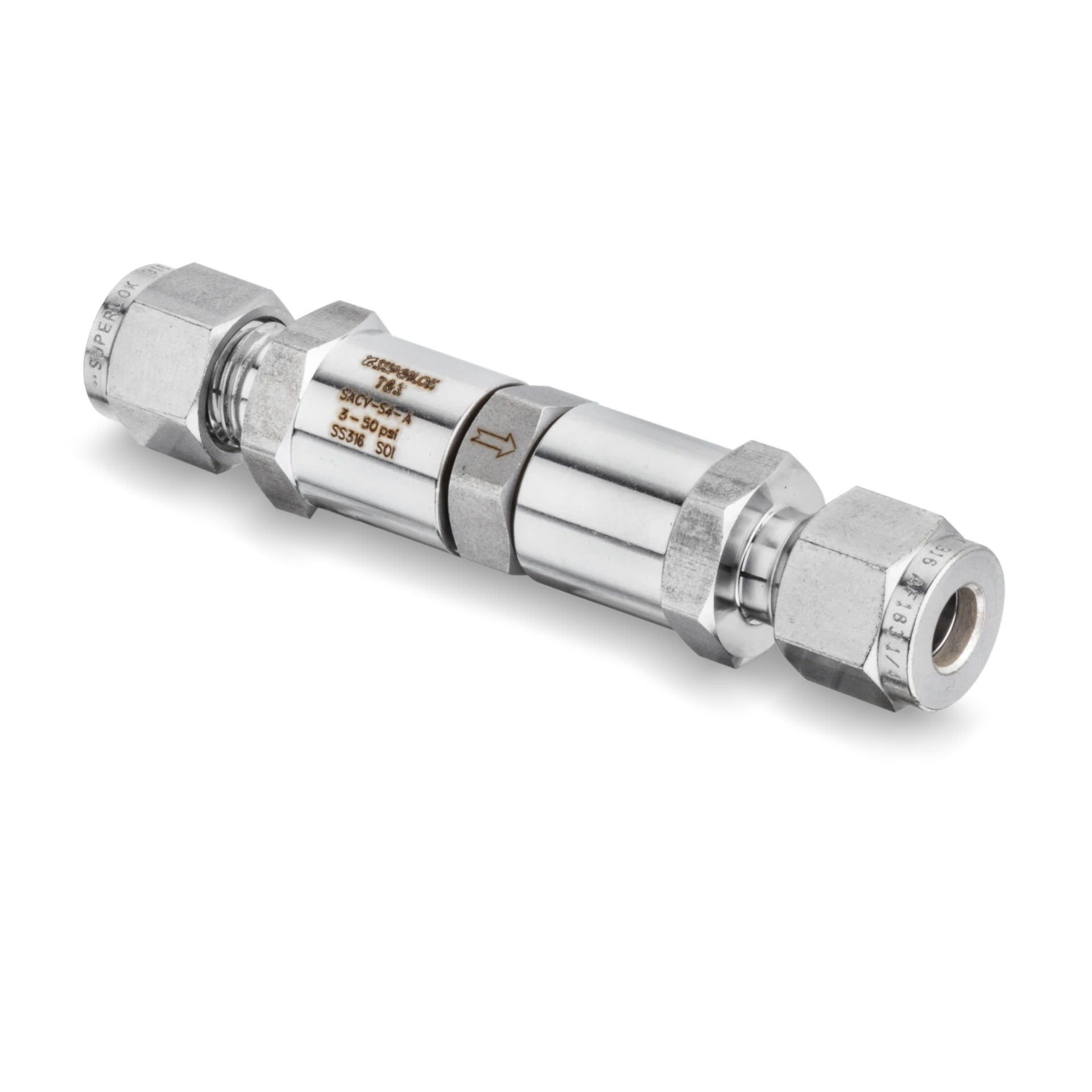

SACV Adjustable Check Valves
Pressure rating up to 6,000 psig (413 bar) at 100 ºF (37 ºC) Temperature rating up to 375 ºF (190 ºC) with Fluorocarbon (FKM) seal standard Cracking pressure fixed from 1/3 to 25 psig (0.02 to 1.7 bar) Variety of end connections 316 stainless steel body material as standard Each and every valve is tested at the factory
1 Items in SACV Adjustable Check Valves
side-scroll to see full table
 | |
| Part# | SACV1-S-4-A |
| Information | |
| Part Number |
SACV1-S-4-A |
| Type |
Check Valve |
| Dimensions | |
| Back Pressure at 70 (20 ºC) Temperature |
206bar
3000psig |
| Cracking Pressure |
0.2 to 3.4bar
3 to 50psi |

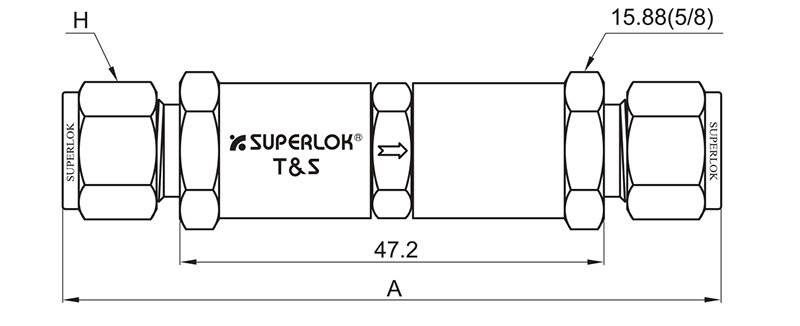

| Dimension A |
82.0mm |
| Dimension H |
9/16in
14.3mm |
| Inlet |
1/4mm |
| Operating Pressure [Min] |
206bar
3000psig |
| Outlet |
1/4mm |
| Temperature Rating for Fluorocarbon (FKM) |
-23 to 190ºC
-10 to 375ºF |
| Temperature Rating for Nitrile Butadiene Rubber |
-23 to 121ºC
-10 to 250ºF |
| Specifications | |
| Cv Coefficient |
0.37 |
| Description |
SACV Adjustable Check Valves |
| Inch/Metric |
Inch |
| Material |
316 Stainless Steel, Brass |
| Series |
SACV |
