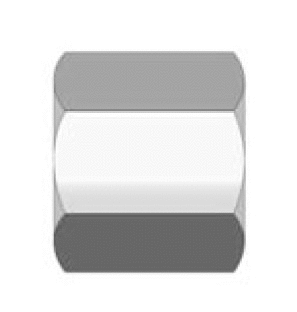

JN Joint Industrial Council (JIC) Nuts
7 Items in JN Joint Industrial Council (JIC) Nuts
side-scroll to see full table
 |
|
|
|
|
|
| |
| Part# | JN-6T | JN-8T | JN-10T | JN-12T | JN-16T | JN-20T | JN-20T |
| Information | |||||||
| Type |
Nut |
Nut |
Nut |
Nut |
Nut |
Nut |
Nut |
| Part Number |
JN-6T |
JN-8T |
JN-10T |
JN-12T |
JN-16T |
JN-20T |
JN-20T |
| Dimensions | |||||||
| Dimension H (Hex) |
17.5mm |
22.2mm |
25.4mm |
31.8mm |
38.1mm |
50.8mm |
50.8mm |
| Dimension L |
18.5mm |
21.6mm |
24.9mm |
26.2mm |
28.7mm |
31.2mm |
31.2mm |
| Tube Outside Diameter D |
3/8in
10mm |
1/2in
12mm |
5/8in
16mm |
3/4in
18mm |
1in
25mm |
1 1/4in
32mm |
1 1/4in
32mm |
| Specifications | |||||||
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
| Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Thread Type |
Unified Fine (UNF)/Unified Constant Pitch (UN) |
Unified Fine (UNF)/Unified Constant Pitch (UN) |
Unified Fine (UNF)/Unified Constant Pitch (UN) |
Unified Fine (UNF)/Unified Constant Pitch (UN) |
Unified Fine (UNF)/Unified Constant Pitch (UN) |
Unified Fine (UNF)/Unified Constant Pitch (UN) |
Unified Fine (UNF)/Unified Constant Pitch (UN) |
| Description |
JN 3/8 in. Tube Outside Diameter D Stainless Steel Joint Industry Council (JIC) Nut |
JN 1/2 in. Tube Outside Diameter D Stainless Steel Joint Industry Council (JIC) Nut |
JN 5/8 in. Tube Outside Diameter D Stainless Steel Joint Industry Council (JIC) Nut |
JN 3/4 in. Tube Outside Diameter D Stainless Steel Joint Industry Council (JIC) Nut |
JN 1 in. Tube Outside Diameter D Stainless Steel Joint Industry Council (JIC) Nut |
JN 1-1/4 in. Tube Outside Diameter D Stainless Steel Joint Industry Council (JIC) Nut |
JN 1-1/4 in. Tube Outside Diameter D Stainless Steel Joint Industry Council (JIC) Nut |
| Thread Size |
43359 |
42433 |
41828 |
1 1/16 - 12 |
1 5/16 - 12 |
1 5/8 - 12 |
1 5/8 - 12 |
