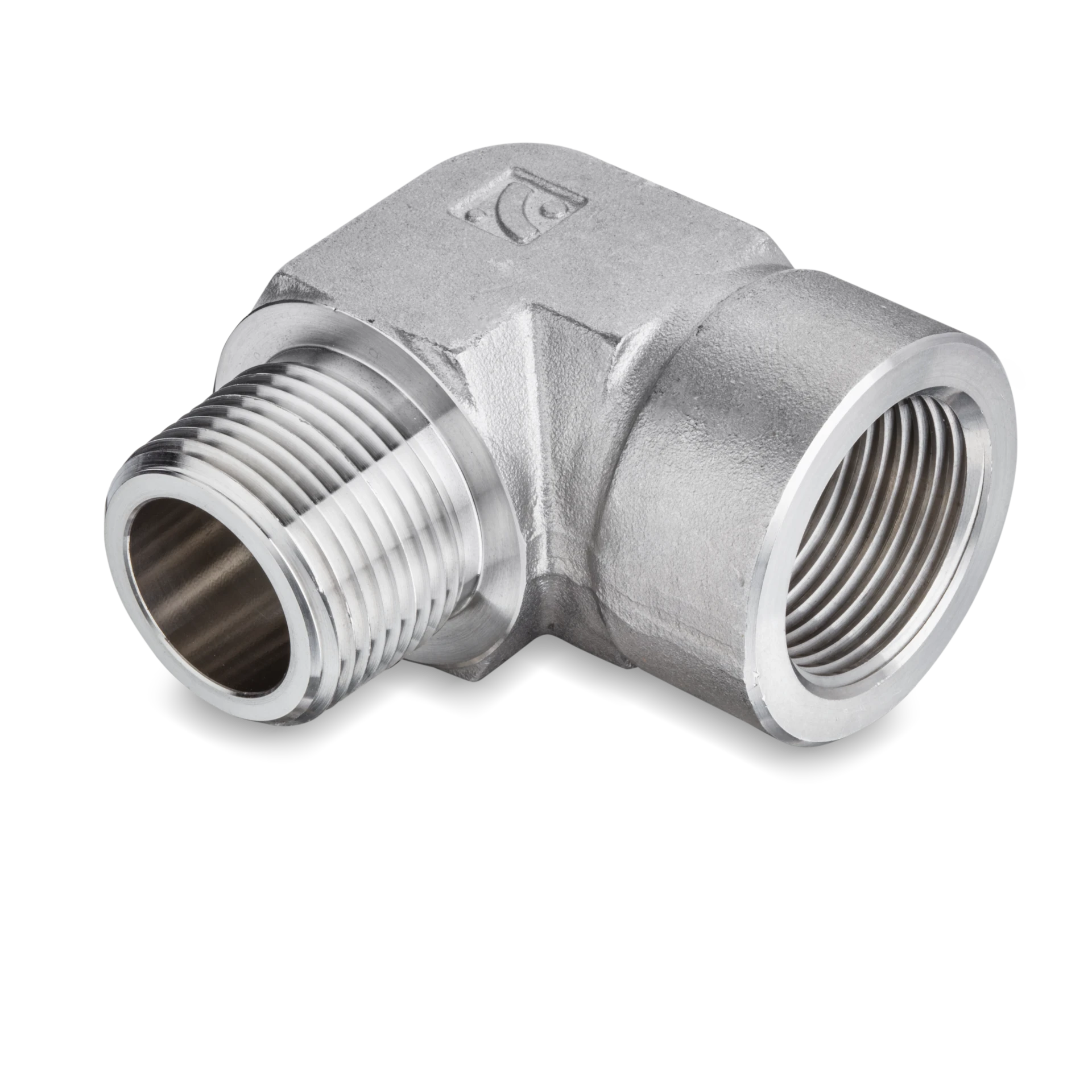

ISE Street Elbows

Call Us (805) 658-2043

6 Items in ISE Street Elbows

	Item #	Item Name
	ISE-2N ISE 1/8 in. Female National Pipe Taper (FNPT) x 1/8 in. Male National Pipe Taper (MNPT) Street Elbow	ISE 1/8 in. Female National Pipe Taper (FNPT) x 1/8 in. Male National Pipe Taper (MNPT) Street Elbow
	ISE-4N ISE 1/4 in. Female National Pipe Taper (FNPT) x 1/4 in. Male National Pipe Taper (MNPT) Street Elbow	ISE 1/4 in. Female National Pipe Taper (FNPT) x 1/4 in. Male National Pipe Taper (MNPT) Street Elbow
	ISE-6N ISE 3/8 in. Female National Pipe Taper (FNPT) x 3/8 in. Male National Pipe Taper (MNPT) Street Elbow	ISE 3/8 in. Female National Pipe Taper (FNPT) x 3/8 in. Male National Pipe Taper (MNPT) Street Elbow
	ISE-8N ISE 1/2 in. Female National Pipe Taper (FNPT) x 1/2 in. Male National Pipe Taper (MNPT) Street Elbow	ISE 1/2 in. Female National Pipe Taper (FNPT) x 1/2 in. Male National Pipe Taper (MNPT) Street Elbow
	ISE-12N ISE 3/4 in. Female National Pipe Taper (FNPT) x 3/4 in. Male National Pipe Taper (MNPT) Street Elbow	ISE 3/4 in. Female National Pipe Taper (FNPT) x 3/4 in. Male National Pipe Taper (MNPT) Street Elbow
	ISE-16N ISE 1 in. Female National Pipe Taper (FNPT) x 1 in. Male National Pipe Taper (MNPT) Street Elbow	ISE 1 in. Female National Pipe Taper (FNPT) x 1 in. Male National Pipe Taper (MNPT) Street Elbow

side-scroll to see full table

Information

Part#	ISE-2N	ISE-4N	ISE-6N	ISE-8N	ISE-12N	ISE-12N
Type	Street Elbows	Street Elbows	Street Elbows	Street Elbows	Street Elbows	Street Elbows
Part Number	ISE-2N	ISE-4N	ISE-6N	ISE-8N	ISE-12N	ISE-12N

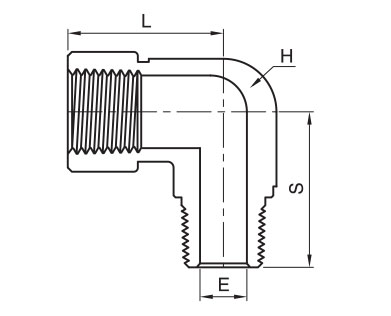

Dimensions
Dimension E	4.8mm	7.1mm	9.6mm	11.9mm	15.7mm	15.7mm
Dimension H	12.7mm	17.5mm	20.6mm	25.4mm	31.8mm	31.8mm
Dimension L	24.1mm	29.0mm	34.5mm	37.0mm	46.5mm	46.5mm
Dimension S	19.6mm	26.5mm	28.2mm	35.3mm	39.6mm	39.6mm
Pressure Rating (Brass)	213bar 3100psig	248bar 3600psig	192bar 2800psig	192bar 2800psig	172bar 2500psig	172bar 2500psig
Pressure [Max]	=--DELETED=psi 427bar 6200psig	=--DELETED=psi 496bar 7200psig	=--DELETED=psi 385bar 5600psig	=--DELETED=psi 385bar 5600psig	=--DELETED=psi 351bar 5100psig	=--DELETED=psi 351bar 5100psig
Size	44204in	44200in	44263in	44198in	44259in	44259in
Specifications
End Type	Female National Pipe Taper (NPT)	Female National Pipe Taper (NPT)	Female National Pipe Taper (NPT)	Female National Pipe Taper (NPT)	Female National Pipe Taper (NPT)	Female National Pipe Taper (NPT)
End Type 2	Male National Pipe Taper (NPT)	Male National Pipe Taper (NPT)	Male National Pipe Taper (NPT)	Male National Pipe Taper (NPT)	Male National Pipe Taper (NPT)	Male National Pipe Taper (NPT)
Inch/Metric	Inch	Inch	Inch	Inch	Inch	Inch
Material	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Style	Instrumentation Thread Fittings	Instrumentation Thread Fittings	Instrumentation Thread Fittings	Instrumentation Thread Fittings	Instrumentation Thread Fittings	Instrumentation Thread Fittings
Description	ISE 1/8 in. Female National Pipe Taper (FNPT) x 1/8 in. Male National Pipe Taper (MNPT) Street Elbow	ISE 1/4 in. Female National Pipe Taper (FNPT) x 1/4 in. Male National Pipe Taper (MNPT) Street Elbow	ISE 3/8 in. Female National Pipe Taper (FNPT) x 3/8 in. Male National Pipe Taper (MNPT) Street Elbow	ISE 1/2 in. Female National Pipe Taper (FNPT) x 1/2 in. Male National Pipe Taper (MNPT) Street Elbow	ISE 3/4 in. Female National Pipe Taper (FNPT) x 3/4 in. Male National Pipe Taper (MNPT) Street Elbow	ISE 3/4 in. Female National Pipe Taper (FNPT) x 3/4 in. Male National Pipe Taper (MNPT) Street Elbow
End Size	44204	44200	44263	44198	44259	44259
End Size 2	44204	44200	44263	44198	44259	44259
