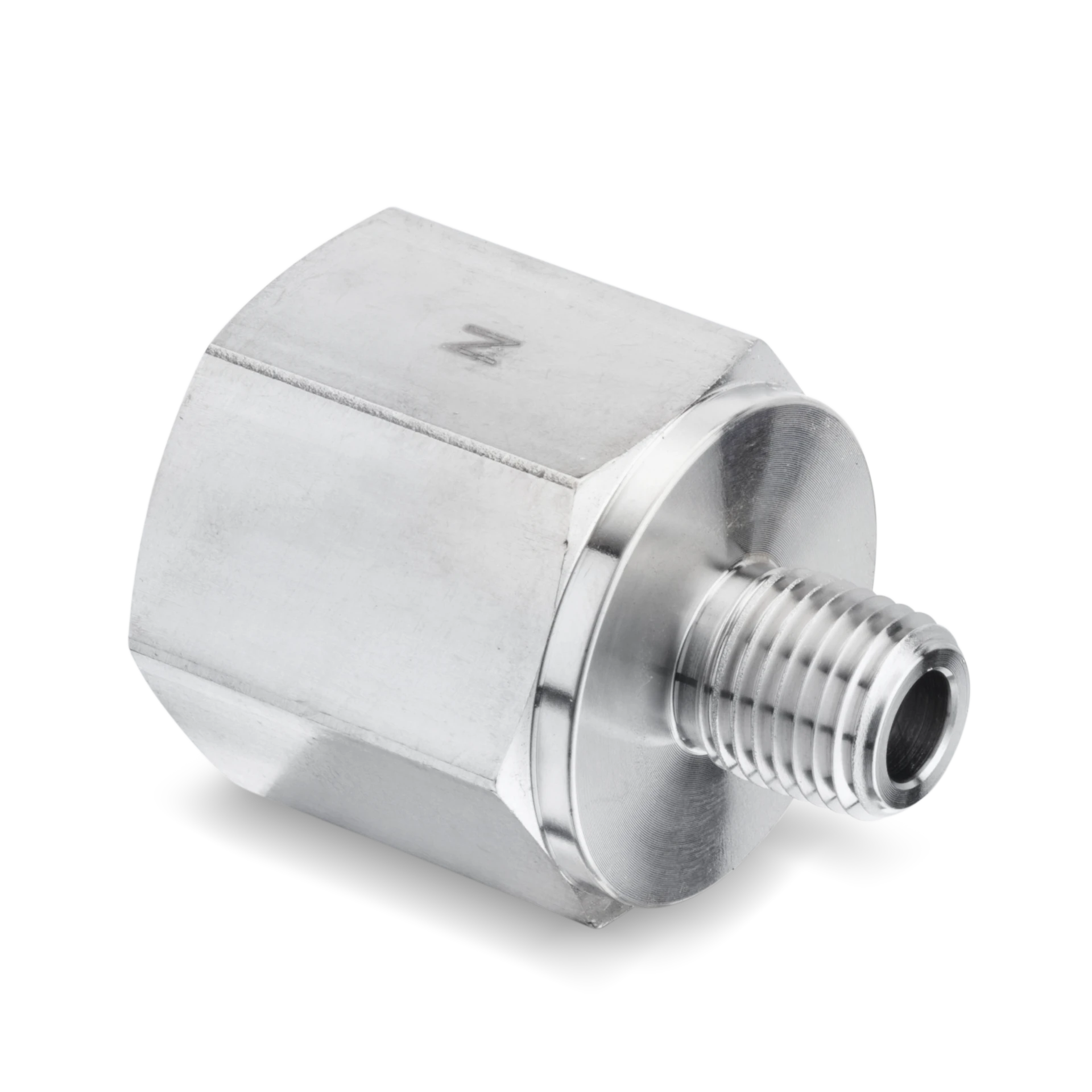

IRA Reducing Adapters
12 Items in IRA Reducing Adapters
side-scroll to see full table
 |
|
|
|
|
|
|
|
|
|
|
| |
| Part# | IRA 2-4N | IRA 2-6N | IRA 2-8N | IRA 4-6N | IRA 4-8N | IRA 4-12N | IRA 4-16N | IRA 6-8N | IRA 6-12N | IRA 8-12N | IRA 8-16N | IRA 8-16N |
| Information | ||||||||||||
| Type |
Reducing Adapter |
Reducing Adapter |
Reducing Adapter |
Reducing Adapter |
Reducing Adapter |
Reducing Adapter |
Reducing Adapter |
Reducing Adapter |
Reducing Adapter |
Reducing Adapter |
Reducing Adapter |
Reducing Adapter |
| Part Number |
IRA 2-4N |
IRA 2-6N |
IRA 2-8N |
IRA 4-6N |
IRA 4-8N |
IRA 4-12N |
IRA 4-16N |
IRA 6-8N |
IRA 6-12N |
IRA 8-12N |
IRA 8-16N |
IRA 8-16N |
| Dimensions | ||||||||||||
| Dimension A |
32.0mm |
33.8mm |
38.1mm |
40.1mm |
44.7mm |
44.4mm |
47.0mm |
46.2mm |
51.3mm |
49.8mm |
54.9mm |
54.9mm |
| Dimension E |
4.8mm |
4.8mm |
7.1mm |
4.8mm |
7.1mm |
9.6mm |
7.1mm |
9.6mm |
11.9mm |
7.1mm |
11.9mm |
11.9mm |
| Dimension H |
19.1mm |
22.2mm |
22.2mm |
26.9mm |
26.9mm |
26.9mm |
33.3mm |
33.3mm |
33.3mm |
41.2mm |
41.2mm |
41.2mm |
| Female Pipe Size |
1/4mm |
3/8mm |
3/8mm |
1/2mm |
1/2mm |
1/2mm |
3/4mm |
3/4mm |
3/4mm |
1mm |
1mm |
1mm |
| Pressure Rating (Brass) |
227bar
3300psig |
179bar
2600psig |
179bar
2600psig |
165bar
2400psig |
165bar
2400psig |
165bar
2400psig |
158bar
2300psig |
158bar
2300psig |
158bar
2300psig |
151bar
2200psig |
151bar
2200psig |
151bar
2200psig |
| Pressure [Max] |
6600bar
454psig |
5300bar
365psig |
5300bar
365psig |
4900bar
337psig |
4900bar
337psig |
4900bar
337psig |
4600bar
316psig |
4600bar
316psig |
4600bar
316psig |
4400bar
303psig |
4400bar
303psig |
4400bar
303psig |
| Size |
44204mm |
44204mm |
44200mm |
44204mm |
44200mm |
44263mm |
44200mm |
44263mm |
44198mm |
44200mm |
44198mm |
44198mm |
| Specifications | ||||||||||||
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
| Material |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
| Description |
IRA 1/8 in. Male National Pipe Taper (MNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Adapter |
IRA 1/8 in. Male National Pipe Taper (MNPT) Thread x 3/8 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Adapter |
IRA 1/8 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Adapter |
IRA 1/4 in. Male National Pipe Taper (MNPT) Thread x 3/8 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Adapter |
IRA 1/4 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Adapter |
IRA 1/4 in. Male National Pipe Taper (MNPT) Thread x 3/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Adapter |
IRA 1/4 in. Male National Pipe Taper (MNPT) Thread x 1 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Adapter |
IRA 3/8 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Adapter |
IRA 3/8 in. Male National Pipe Taper (MNPT) Thread x 3/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Adapter |
IRA 1/2 in. Male National Pipe Taper (MNPT) Thread x 3/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Adapter |
IRA 1/2 in. Male National Pipe Taper (MNPT) Thread x 1 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Adapter |
IRA 1/2 in. Male National Pipe Taper (MNPT) Thread x 1 in. Female National Pipe Taper (FNPT) Thread Pipe Size Reducing Adapter |
