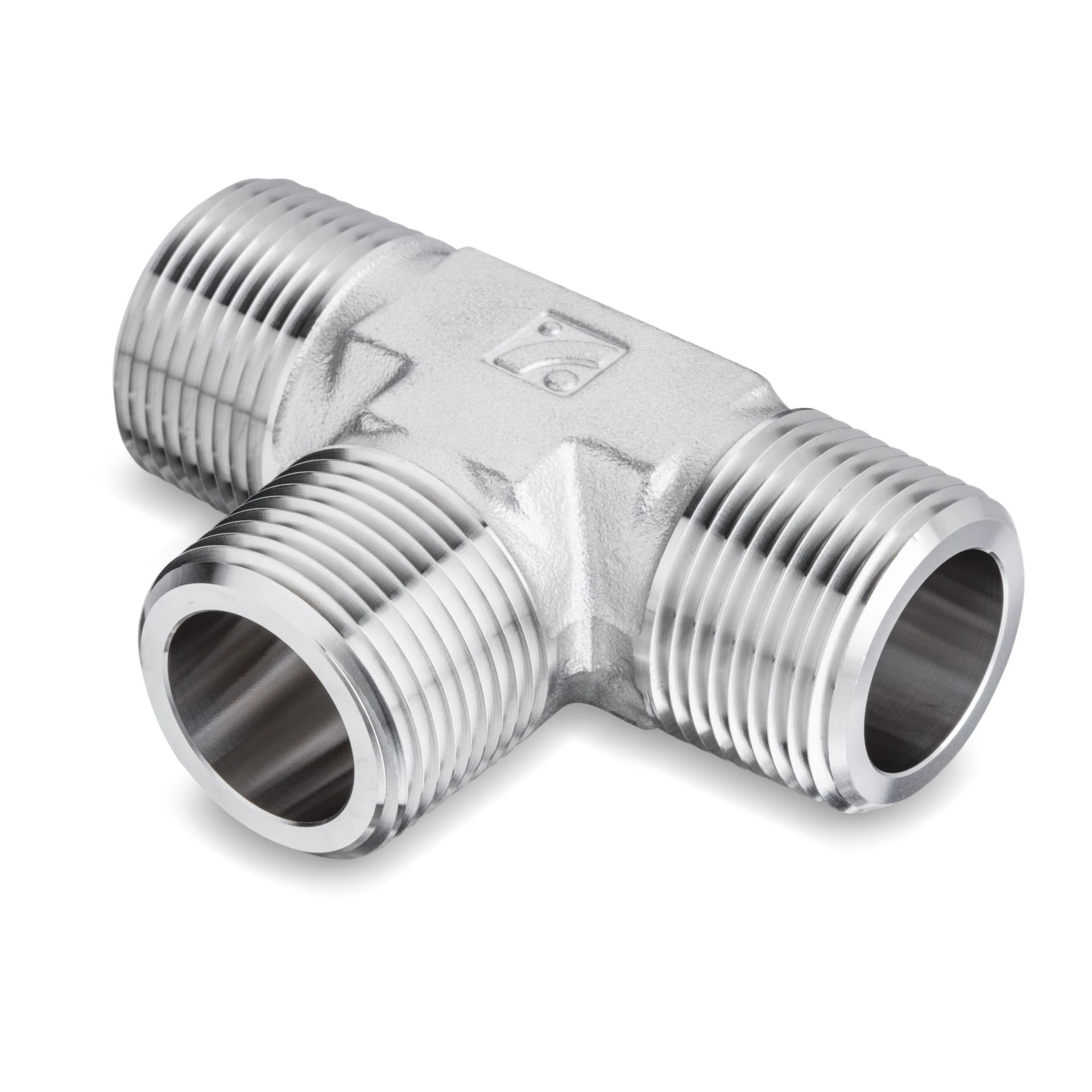

IMT Male Tees
6 Items in IMT Male Tees
side-scroll to see full table
 |
|
|
|
|
| |
| Part# | IMT-2N | IMT-4N | IMT-6N | IMT-8N | IMT-12N | IMT-12N |
| Information | ||||||
| Type |
Male Tee |
Male Tee |
Male Tee |
Male Tee |
Male Tee |
Male Tee |
| Part Number |
IMT-2N |
IMT-4N |
IMT-6N |
IMT-8N |
IMT-12N |
IMT-12N |
| Dimensions | ||||||
| Dimension A |
38.2mm |
49.0mm |
53.8mm |
66.4mm |
70.6mm |
70.6mm |
| Dimension E |
4.8mm |
7.1mm |
9.6mm |
11.9mm |
15.7mm |
15.7mm |
| Dimension H |
12.7mm |
12.7mm |
17.5mm |
20.6mm |
25.4mm |
25.4mm |
| Dimension L |
19.1mm |
24.5mm |
26.9mm |
33.2mm |
35.3mm |
35.3mm |
| Pressure Rating (Brass) |
344bar
5000psig |
275bar
4000psig |
268bar
3900psig |
261bar
3800psig |
248bar
3600psig |
248bar
3600psig |
| Pressure [Max] |
689bar
10000psig |
551bar
8000psig |
537bar
7800psig |
530bar
7700psig |
502bar
7300psig |
502bar
7300psig |
| Specifications | ||||||
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
| Material |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
| Description |
IMT 1/8 in. Male National Pipe Taper (MNPT) Pipe Size Male Tee |
IMT 1/4 in. Male National Pipe Taper (MNPT) Pipe Size Male Tee |
IMT 3/8 in. Male National Pipe Taper (MNPT) Pipe Size Male Tee |
IMT 1/2 in. Male National Pipe Taper (MNPT) Pipe Size Male Tee |
IMT 3/4 in. Male National Pipe Taper (MNPT) Pipe Size Male Tee |
IMT 3/4 in. Male National Pipe Taper (MNPT) Pipe Size Male Tee |
| Size |
44204 |
44200 |
44263 |
44198 |
44259 |
44259 |
