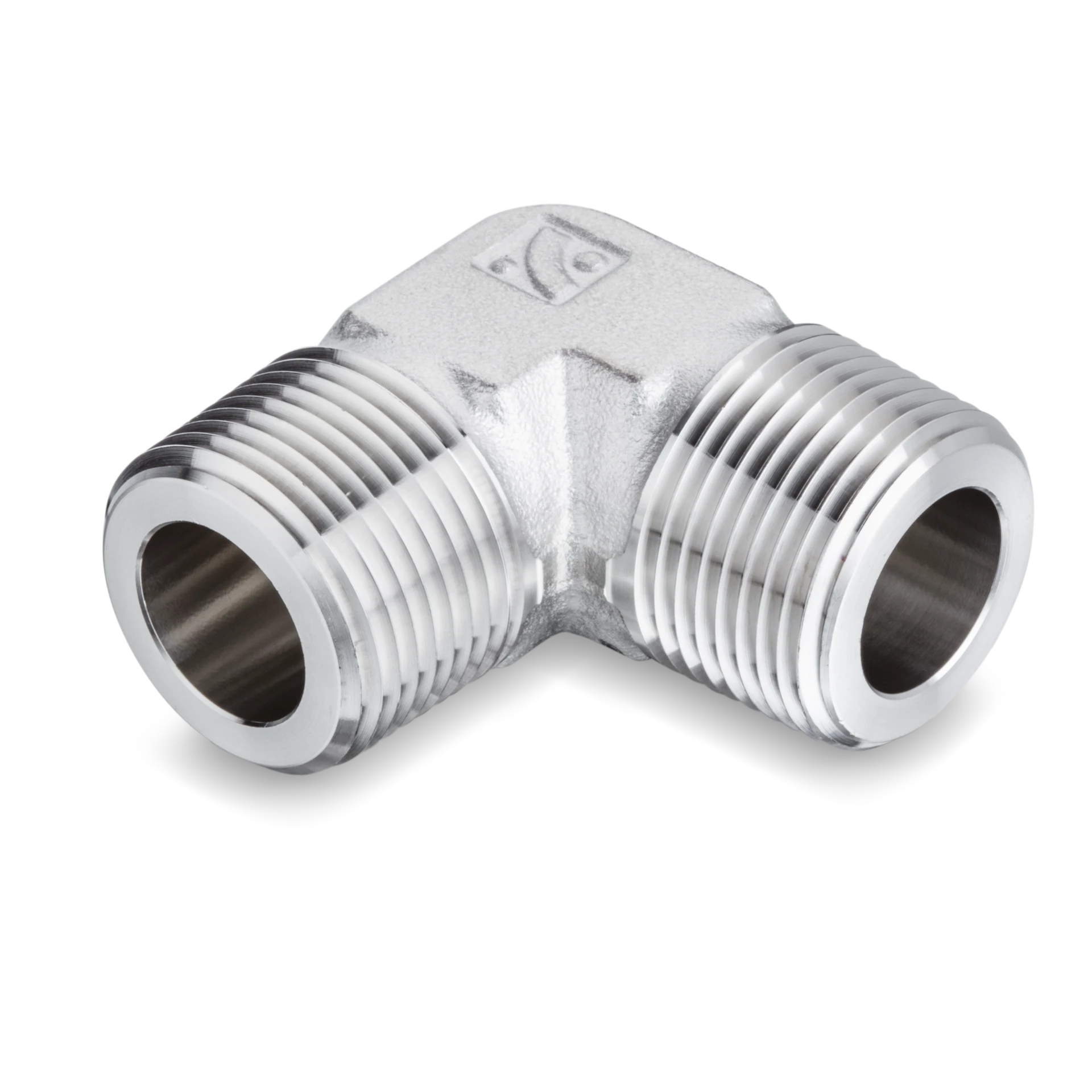

IME Male Elbows
6 Items in IME Male Elbows
side-scroll to see full table
 |
|
|
|
|
| |
| Part# | IME-2N | IME-4N | IME-6N | IME-8N | IME-12N | IME-12N |
| Information | ||||||
| Type |
Male Elbows |
Male Elbows |
Male Elbows |
Male Elbows |
Male Elbows |
Male Elbows |
| Part Number |
IME-2N |
IME-4N |
IME-6N |
IME-8N |
IME-12N |
IME-12N |

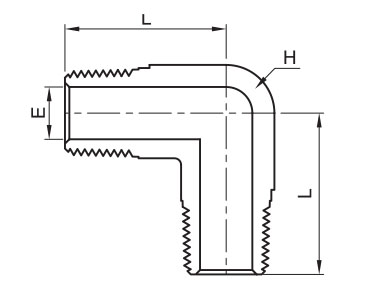

| Dimensions | ||||||
| Dimension E |
4.8mm |
7.1mm |
9.6mm |
11.9mm |
15.7mm |
15.7mm |
| Dimension H |
12.7mm |
12.7mm |
17.5mm |
20.6mm |
25.4mm |
25.4mm |
| Dimension L |
19.1mm |
24.5mm |
26.9mm |
33.2mm |
35.3mm |
35.3mm |
| Pressure Rating (Brass) |
344bar
5000psig |
275bar
4000psig |
268bar
3900psig |
261bar
3800psig |
248bar
3600psig |
248bar
3600psig |
| Pressure [Max] |
=--DELETED=psi
689bar
10000psig |
=--DELETED=psi
551bar
8000psig |
=--DELETED=psi
537bar
7800psig |
=--DELETED=psi
530bar
7700psig |
=--DELETED=psi
502bar
7300psig |
=--DELETED=psi
502bar
7300psig |
| Size |
44204in |
44200in |
44263in |
44198in |
44259in |
44259in |
| Specifications | ||||||
| End Type |
National Pipe Taper (NPT) |
National Pipe Taper (NPT) |
National Pipe Taper (NPT) |
National Pipe Taper (NPT) |
National Pipe Taper (NPT) |
National Pipe Taper (NPT) |
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
| Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Style |
Instrumentation Thread Fittings |
Instrumentation Thread Fittings |
Instrumentation Thread Fittings |
Instrumentation Thread Fittings |
Instrumentation Thread Fittings |
Instrumentation Thread Fittings |
| Description |
IME 1/8 in. Male National Pipe Taper (MNPT) Male Elbow |
IME 1/4 in. Male National Pipe Taper (MNPT) Male Elbow |
IME 3/8 in. Male National Pipe Taper (MNPT) Male Elbow |
IME 1/2 in. Male National Pipe Taper (MNPT) Male Elbow |
IME 3/4 in. Male National Pipe Taper (MNPT) Male Elbow |
IME 3/4 in. Male National Pipe Taper (MNPT) Male Elbow |
| End Size |
44204 |
44200 |
44263 |
44198 |
44259 |
44259 |
