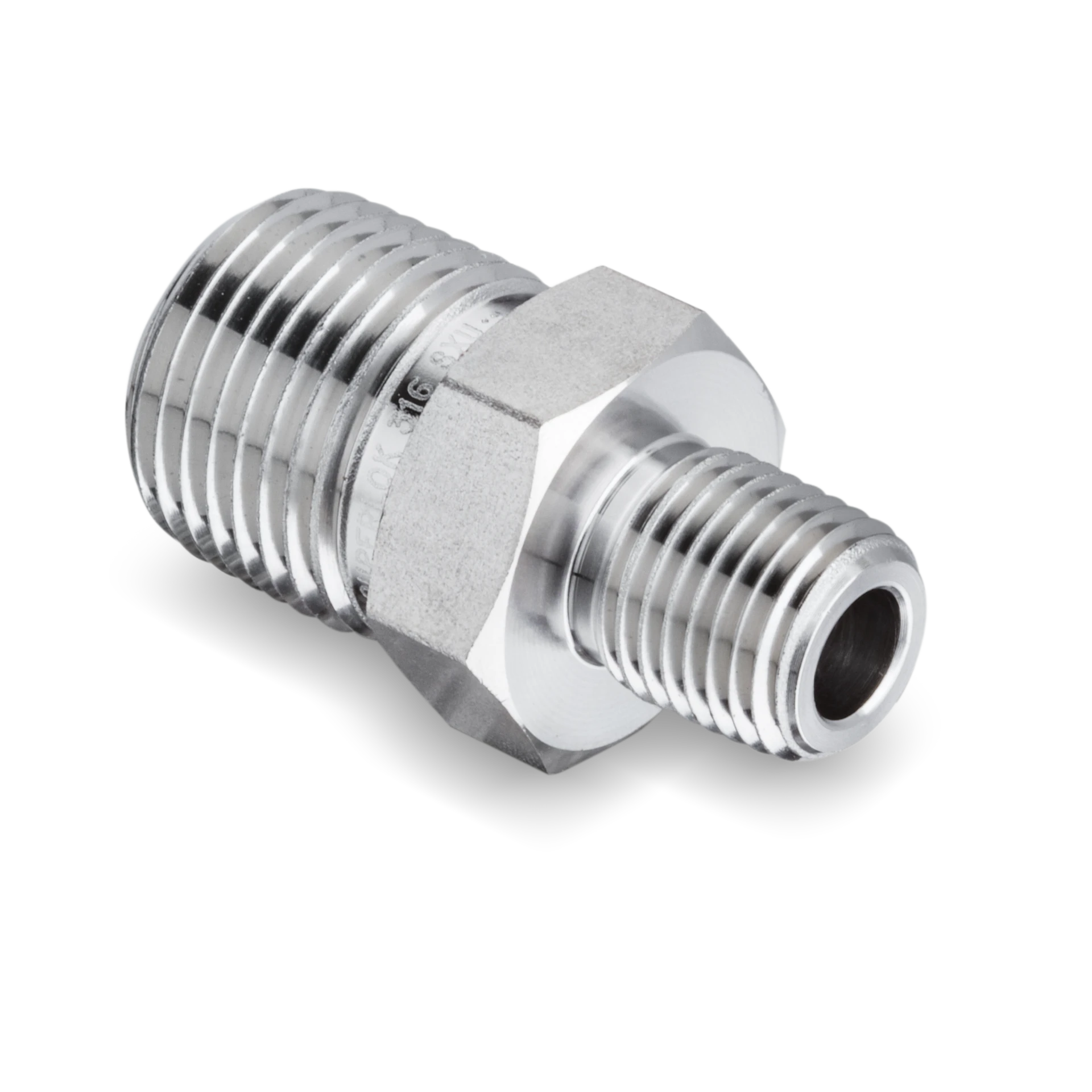

11 Items in IHRN Hex Reducing Nipples
Item #Item Name
IHRN 1/4 in. x 1/8 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 3/8 in. x 1/8 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 3/8 in. x 1/4 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 1/2 in. x 1/8 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 1/2 in. x 1/4 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 1/2 in. x 3/8 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 3/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 3/4 in. x 1/2 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 1 in. x 1/4 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 1 in. x 1/2 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 1 in. x 3/4 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
side-scroll to see full table

Part# IHRN 4-2N IHRN 6-2N IHRN 6-4N IHRN 8-2N IHRN 8-4N IHRN 8-6N IHRN 12-4N IHRN 12-8N IHRN 16-4N IHRN 16-8N IHRN 16-8N
Information
Type
Hex Reducing Nipple
Hex Reducing Nipple
Hex Reducing Nipple
Hex Reducing Nipple
Hex Reducing Nipple
Hex Reducing Nipple
Hex Reducing Nipple
Hex Reducing Nipple
Hex Reducing Nipple
Hex Reducing Nipple
Hex Reducing Nipple
Part Number
IHRN 4-2N
IHRN 6-2N
IHRN 6-4N
IHRN 8-2N
IHRN 8-4N
IHRN 8-6N
IHRN 12-4N
IHRN 12-8N
IHRN 16-4N
IHRN 16-8N
IHRN 16-8N
Dimensions
Dimension A
31.0mm
31.8mm
36.3mm
37.3mm
41.9mm
41.9mm
41.9mm
46.7mm
49.3mm
54.1mm
54.1mm
Dimension E
4.8mm
4.8mm
7.1mm
4.8mm
7.1mm
9.6mm
7.1mm
11.9mm
7.1mm
11.9mm
11.9mm
Dimension H
14.2mm
17.4mm
17.4mm
22.2mm
22.2mm
22.2mm
26.9mm
26.9mm
34.9mm
34.9mm
34.9mm
Pressure Rating for Brass Nipple
344bar
5000psig
344bar
5000psig
275bar
4000psig
261bar
3800psig
275bar
4000psig
268bar
3900psig
275bar
4000psig
261bar
3800psig
179bar
2600psig
261bar
3800psig
261bar
3800psig
Pressure [Max]
689bar
10000psig
689bar
10000psig
551bar
8000psig
530bar
7700psig
551bar
8000psig
537bar
7800psig
551bar
8000psig
530bar
7700psig
365bar
5300psig
530bar
7700psig
530bar
7700psig
Reduced Pipe Size
1/16mm
1/8mm
1/8mm
1/4mm
1/8mm
1/4mm
3/8mm
1/4mm
1/2mm
1/4mm
1/4mm
Size
44204mm
44200mm
44263mm
44263mm
44198mm
44198mm
44198mm
44259mm
44259mm
1mm
1mm
Specifications
End Type
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Inch/Metric
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Material
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
Description
IHRN 1/4 in. x 1/8 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 3/8 in. x 1/8 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 3/8 in. x 1/4 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 1/2 in. x 1/8 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 1/2 in. x 1/4 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 1/2 in. x 3/8 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 3/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 3/4 in. x 1/2 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 1 in. x 1/4 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 1 in. x 1/2 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple
IHRN 1 in. x 1/2 in. Male National Pipe Taper (MNPT) Pipe Size Hex Reducing Nipple

Part#

CAD Download Part #

Please submit the form below and your download will begin immediately. (All fields are required)
