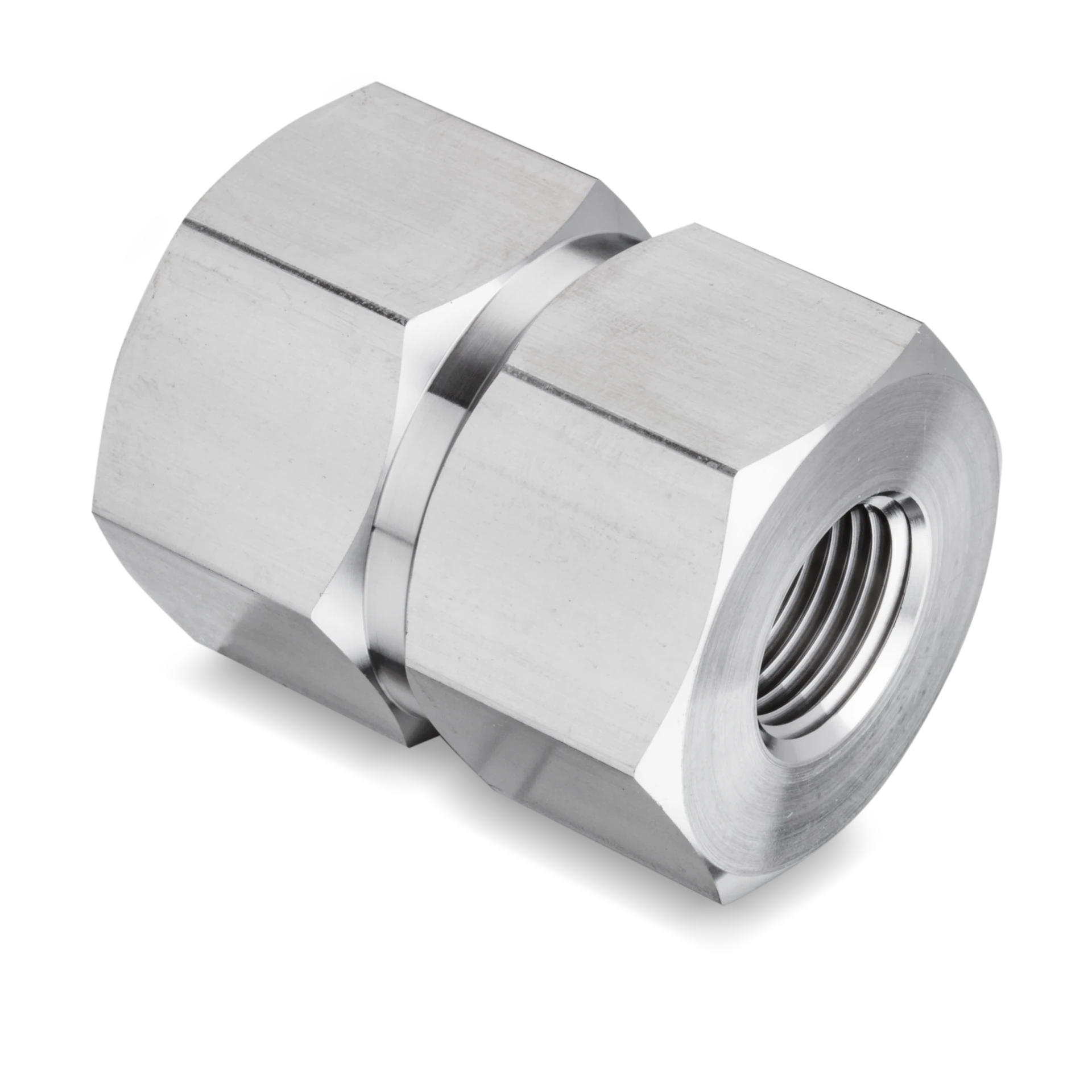

IHRC Hex Reducing Couplings

IHRC PIPE FITTING
9 Items in IHRC Hex Reducing Couplings
Item #Item Name
IHRC 1/4 mm Female National Pipe Taper (FNPT) Thread x 1/8 mm Female National Pipe Taper (FNPT) Thread Hex Reducing Coupling
IHRC 3/8 mm Female National Pipe Taper (FNPT) Thread x 1/4 mm Female National Pipe Taper (FNPT) Thread Hex Reducing Coupling
IHRC 1/2 mm Female National Pipe Taper (FNPT) Thread x 1/8 mm Female National Pipe Taper (FNPT) Thread Hex Reducing Coupling
IHRC 1/2 mm Female National Pipe Taper (FNPT) Thread x 1/4 mm Female National Pipe Taper (FNPT) Thread Hex Reducing Coupling
IHRC 1/2 mm Female National Pipe Taper (FNPT) Thread x 3/8 mm Female National Pipe Taper (FNPT) Thread Hex Reducing Coupling
IHRC 3/4 mm Female National Pipe Taper (FNPT) Thread x 1/4 mm Female National Pipe Taper (FNPT) Thread Hex Reducing Coupling
IHRC 3/4 mm Female National Pipe Taper (FNPT) Thread x 1/2 mm Female National Pipe Taper (FNPT) Thread Hex Reducing Coupling
IHRC 1 mm Female National Pipe Taper (FNPT) Thread x 1/2 mm Female National Pipe Taper (FNPT) Thread Hex Reducing Coupling
IHRC 1 mm Female National Pipe Taper (FNPT) Thread x 3/4 mm Female National Pipe Taper (FNPT) Thread Hex Reducing Coupling
side-scroll to see full table

Part# IHRC-4-2N IHRC-6-4N IHRC-8-2N IHRC-8-4N IHRC-8-6N IHRC-12-4N IHRC-12-8N IHRC-16-8N IHRC-16-8N
Information
Type
Hex Reducing Coupling
Hex Reducing Coupling
Hex Reducing Coupling
Hex Reducing Coupling
Hex Reducing Coupling
Hex Reducing Coupling
Hex Reducing Coupling
Hex Reducing Coupling
Hex Reducing Coupling
Part Number
IHRC-4-2N
IHRC-6-4N
IHRC-8-2N
IHRC-8-4N
IHRC-8-6N
IHRC-12-4N
IHRC-12-8N
IHRC-16-8N
IHRC-16-8N
Dimensions
Dimension A
31.0mm
35.1mm
39.6mm
44.4mm
45.2mm
46.0mm
52.3mm
55.6mm
55.6mm
Dimension E
8.6mm
11.4mm
8.6mm
11.4mm
15.0mm
11.4mm
18.5mm
18.5mm
18.5mm
Dimension H
19.1mm
22.2mm
26.9mm
26.9mm
26.9mm
33.3mm
33.3mm
41.2mm
41.2mm
Pressure Rating (Brass)
227bar
3300psig
179bar
2600psig
- bar
- psig
165bar
2400psig
- bar
- psig
158bar
2300psig
- bar
- psig
151bar
2200psig
151bar
2200psig
Pressure Ratings SS316, Steel
454bar
6600psig
365bar
5300psig
- bar
- psig
337bar
4900psig
- bar
- psig
316bar
4600psig
- bar
- psig
303bar
4400psig
303bar
4400psig
Reduced Pipe Size
1/8mm
1/4mm
1/8mm
1/4mm
3/8mm
1/4mm
1/2mm
1/2mm
1/2mm
Size
44200mm
44263mm
44198mm
44198mm
44198mm
44259mm
44259mm
1mm
1mm
Specifications
End Type
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Male National Pipe Thread (MNPT)
Inch/Metric
Metric
Metric
Metric
Metric
Metric
Metric
Metric
Metric
Metric
Material
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
Description
IHRC 1/4 mm Female National Pipe Taper (FNPT) Thread x 1/8 mm Female National Pipe Taper (FNPT) Thread Hex Reducing Coupling
IHRC 3/8 mm Female National Pipe Taper (FNPT) Thread x 1/4 mm Female National Pipe Taper (FNPT) Thread Hex Reducing Coupling
IHRC 1/2 mm Female National Pipe Taper (FNPT) Thread x 1/8 mm Female National Pipe Taper (FNPT) Thread Hex Reducing Coupling
IHRC 1/2 mm Female National Pipe Taper (FNPT) Thread x 1/4 mm Female National Pipe Taper (FNPT) Thread Hex Reducing Coupling
IHRC 1/2 mm Female National Pipe Taper (FNPT) Thread x 3/8 mm Female National Pipe Taper (FNPT) Thread Hex Reducing Coupling
IHRC 3/4 mm Female National Pipe Taper (FNPT) Thread x 1/4 mm Female National Pipe Taper (FNPT) Thread Hex Reducing Coupling
IHRC 3/4 mm Female National Pipe Taper (FNPT) Thread x 1/2 mm Female National Pipe Taper (FNPT) Thread Hex Reducing Coupling
IHRC 1 mm Female National Pipe Taper (FNPT) Thread x 1/2 mm Female National Pipe Taper (FNPT) Thread Hex Reducing Coupling
IHRC 1 mm Female National Pipe Taper (FNPT) Thread x 1/2 mm Female National Pipe Taper (FNPT) Thread Hex Reducing Coupling
Legacy Brands Part
SS-4-HRCG-2
SS-6-HRCG-4
SS-8-HRCG-2
SS-8-HRCG-4
SS-8-HRCG-6
SS-12-HRCG-4
SS-12-HRCG-8
SS-16-HRCG-8
SS-16-HRCG-8

Part#

CAD Download Part #

Please submit the form below and your download will begin immediately. (All fields are required)
