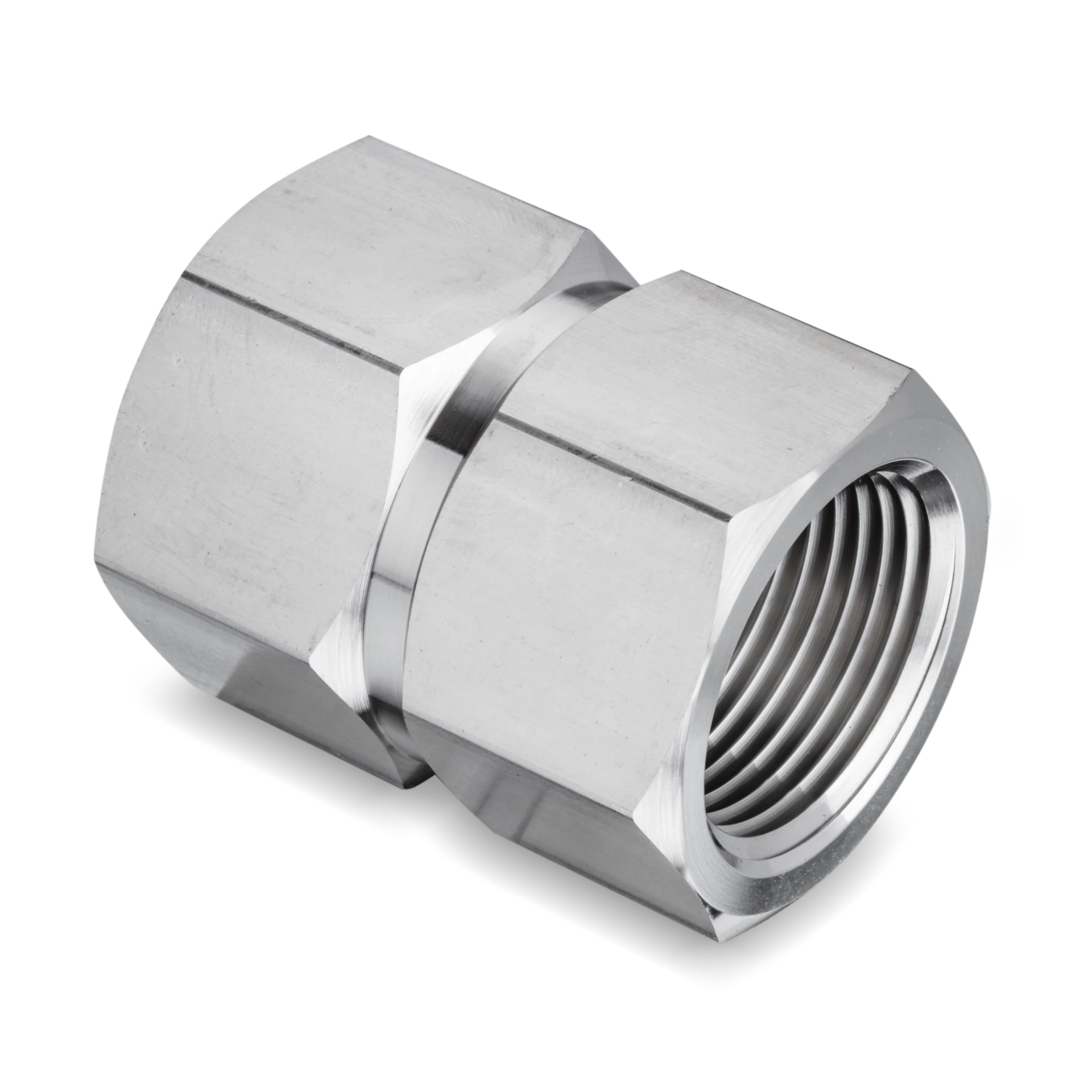

IHC Hex Couplings
6 Items in IHC Hex Couplings
side-scroll to see full table
 |
|
|
|
|
| |
| Part# | IHC-2N | IHC-4N | IHC-6N | IHC-8N | IHC-12N | IHC-12N |
| Information | ||||||
| Type |
Hex Coupling |
Hex Coupling |
Hex Coupling |
Hex Coupling |
Hex Coupling |
Hex Coupling |
| Part Number |
IHC-2N |
IHC-4N |
IHC-6N |
IHC-8N |
IHC-12N |
IHC-12N |
| Dimensions | ||||||
| Dimension A |
20.6mm |
30.2mm |
33.3mm |
39.6mm |
41.1mm |
41.1mm |
| Dimension E |
8.6mm |
11.4mm |
15.0mm |
18.5mm |
23.9mm |
23.9mm |
| Dimension H |
14.2mm |
19.1mm |
22.2mm |
26.9mm |
33.3mm |
33.3mm |
| Pressure Rating (Brass) |
220bar
3200psig |
227bar
3300psig |
179bar
2600psig |
165bar
2400psig |
158bar
2300psig |
158bar
2300psig |
| Pressure Ratings SS316, Steel |
447bar
6500psig |
454bar
6600psig |
365bar
5300psig |
337bar
4900psig |
316bar
4600psig |
316bar
4600psig |
| Size |
44204mm |
44200mm |
44263mm |
44198mm |
44259mm |
44259mm |
| Specifications | ||||||
| End Type |
Male National Pipe Thread (MNPT) |
Male National Pipe Thread (MNPT) |
Male National Pipe Thread (MNPT) |
Male National Pipe Thread (MNPT) |
Male National Pipe Thread (MNPT) |
Male National Pipe Thread (MNPT) |
| Inch/Metric |
Metric |
Metric |
Metric |
Metric |
Metric |
Metric |
| Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Description |
IHC 1/8 mm Female National Pipe Taper (FNPT) Thread Hex Coupling |
IHC 1/4 mm Female National Pipe Taper (FNPT) Thread Hex Coupling |
IHC 3/8 mm Female National Pipe Taper (FNPT) Thread Hex Coupling |
IHC 1/2 mm Female National Pipe Taper (FNPT) Thread Hex Coupling |
IHC 3/4 mm Female National Pipe Taper (FNPT) Thread Hex Coupling |
IHC 3/4 mm Female National Pipe Taper (FNPT) Thread Hex Coupling |
| Legacy Brands Part |
SS-2-HCG |
SS-4-HCG |
SS-6-HCG |
SS-8-HCG |
SS-12-HCG |
SS-12-HCG |
