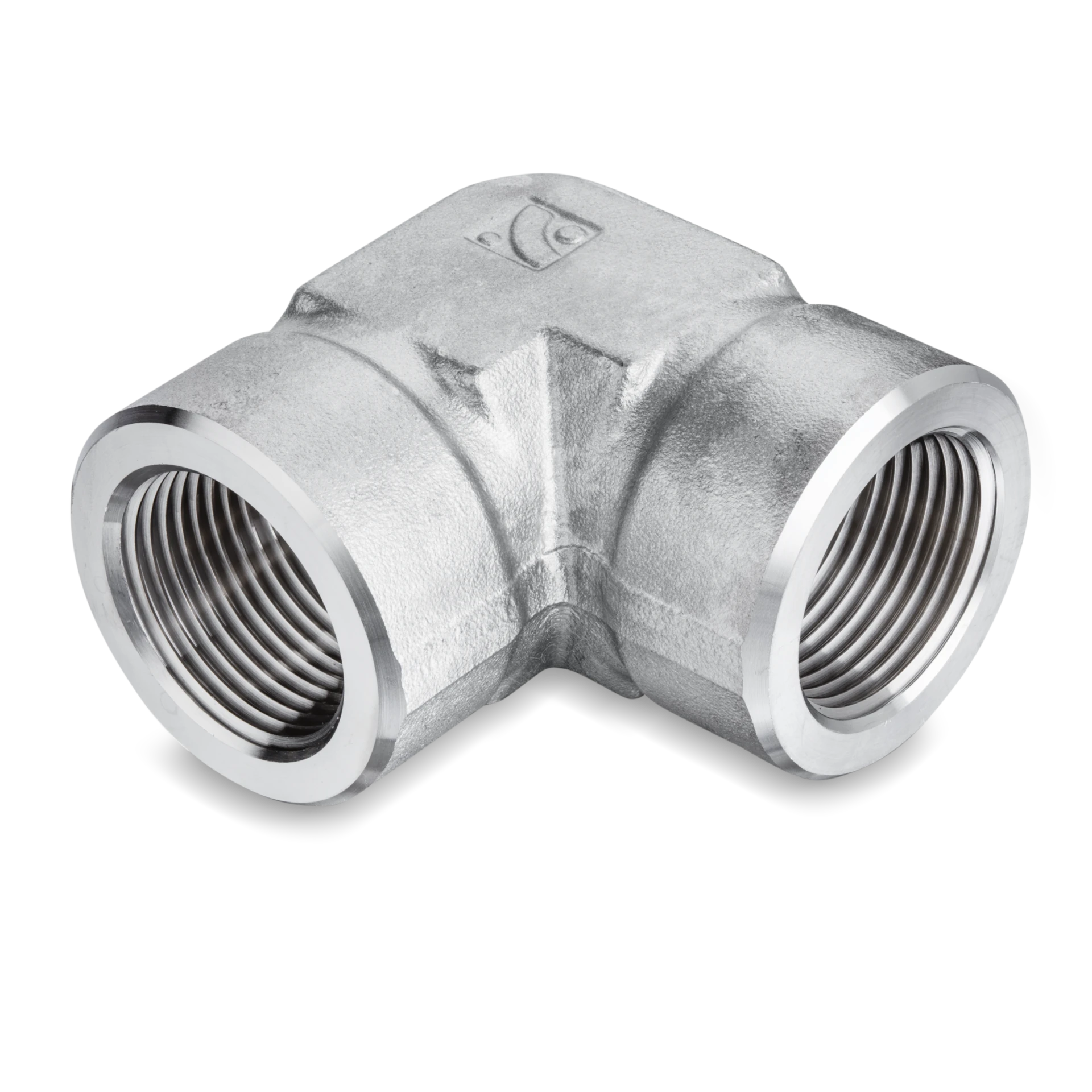

IFE Female Elbows
6 Items in IFE Female Elbows
side-scroll to see full table
 |
|
|
|
|
| |
| Part# | IFE-2N | IFE-4N | IFE-6N | IFE-8N | IFE-12N | IFE-12N |
| Information | ||||||
| Type |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
Female Elbows |
| Part Number |
IFE-2N |
IFE-4N |
IFE-6N |
IFE-8N |
IFE-12N |
IFE-12N |

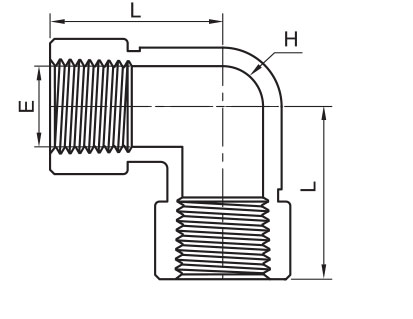

| Dimensions | ||||||
| Dimension E |
8.6mm |
11.4mm |
15.0mm |
18.5mm |
23.9mm |
23.9mm |
| Dimension H |
12.7mm |
17.5mm |
20.6mm |
25.4mm |
31.8mm |
31.8mm |
| Dimension L |
24.0mm |
29.0mm |
34.5mm |
37.0mm |
46.5mm |
46.5mm |
| Pressure Rating (Brass) |
213bar
3100psig |
248bar
3600psig |
192bar
2800psig |
192bar
2800psig |
172bar
2500psig |
172bar
2500psig |
| Pressure [Max] |
=--DELETED=psi
427bar
6200psig |
=--DELETED=psi
496bar
7200psig |
=--DELETED=psi
385bar
5600psig |
=--DELETED=psi
385bar
5600psig |
=--DELETED=psi
351bar
5100psig |
=--DELETED=psi
351bar
5100psig |
| Size |
44204in |
44200in |
44263in |
44198in |
44259in |
44259in |
| Specifications | ||||||
| End Type |
National Pipe Taper (NPT) |
National Pipe Taper (NPT) |
National Pipe Taper (NPT) |
National Pipe Taper (NPT) |
National Pipe Taper (NPT) |
National Pipe Taper (NPT) |
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
| Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Style |
Instrumentation Thread Fittings |
Instrumentation Thread Fittings |
Instrumentation Thread Fittings |
Instrumentation Thread Fittings |
Instrumentation Thread Fittings |
Instrumentation Thread Fittings |
| Description |
IFE 1/8 in. Female National Pipe Taper (FNPT) Female Elbow |
IFE 1/4 in. Female National Pipe Taper (FNPT) Female Elbow |
IFE 3/8 in. Female National Pipe Taper (FNPT) Female Elbow |
IFE 1/2 in. Female National Pipe Taper (FNPT) Female Elbow |
IFE 3/4 in. Female National Pipe Taper (FNPT) Female Elbow |
IFE 3/4 in. Female National Pipe Taper (FNPT) Female Elbow |
| End Size |
44204 |
44200 |
44263 |
44198 |
44259 |
44259 |
