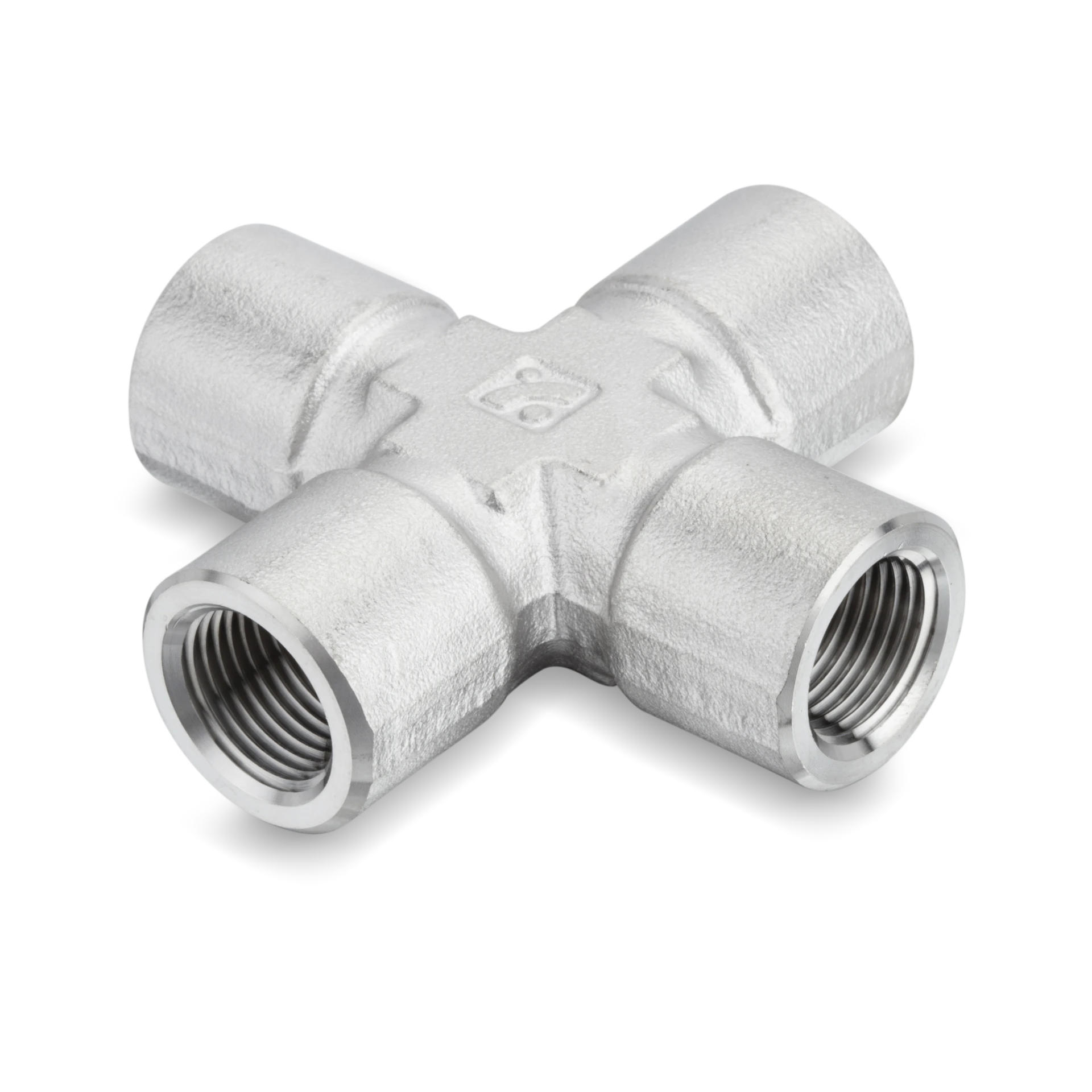

IFC Female Crosses
6 Items in IFC Female Crosses
side-scroll to see full table
 |
|
|
|
|
| |
| Part# | IFC-2N | IFC-4N | IFC-6N | IFC-8N | IFC-12N | IFC-12N |
| Information | ||||||
| Type |
Female Cross |
Female Cross |
Female Cross |
Female Cross |
Female Cross |
Female Cross |
| Part Number |
IFC-2N |
IFC-4N |
IFC-6N |
IFC-8N |
IFC-12N |
IFC-12N |
| Dimensions | ||||||
| Dimension A |
48.0mm |
58.0mm |
69.0mm |
74.0mm |
93.0mm |
93.0mm |
| Dimension E |
8.6mm |
11.4mm |
15.0mm |
18.5mm |
23.9mm |
23.9mm |
| Dimension H |
12.7mm |
17.5mm |
20.6mm |
25.4mm |
31.8mm |
31.8mm |
| Dimension L |
24.0mm |
29.0mm |
34.5mm |
37.0mm |
46.5mm |
46.5mm |
| Pressure Rating (Brass) |
213bar
3100psig |
248bar
3600psig |
192bar
2800psig |
192bar
2800psig |
172bar
2500psig |
172bar
2500psig |
| Pressure [Max] |
427bar
6200psig |
496bar
7200psig |
385bar
5600psig |
385bar
5600psig |
351bar
5100psig |
351bar
5100psig |
| Size |
44204mm |
44200mm |
44263mm |
44198mm |
44259mm |
44259mm |
| Specifications | ||||||
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
| Material |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
316 Stainless Steel, Steel |
| Description |
IFC 1/8 in. Female National Pipe Taper (FNPT) Thread Pipe Size Female Cross |
IFC 1/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Female Cross |
IFC 3/8 in. Female National Pipe Taper (FNPT) Thread Pipe Size Female Cross |
IFC 1/2 in. Female National Pipe Taper (FNPT) Thread Pipe Size Female Cross |
IFC 3/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Female Cross |
IFC 3/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Female Cross |
