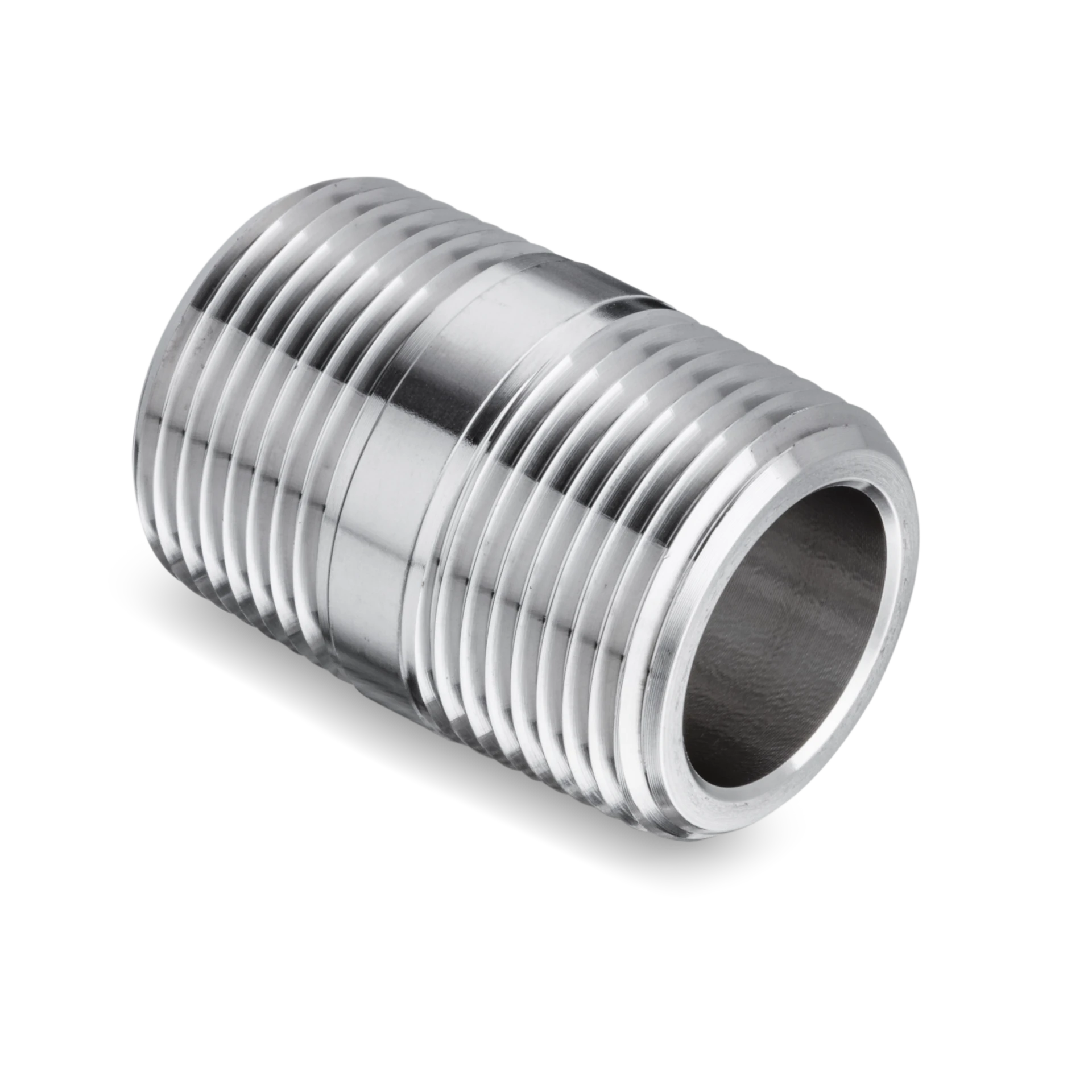

ICN Close Nipples
6 Items in ICN Close Nipples
side-scroll to see full table
|
|
|
|
|
|
|
| Part# | ICN-2N | ICN-4N | ICN-6N | ICN-8N | ICN-12N | ICN-12N |
| Information | ||||||
| Type |
Close Nipple
|
Close Nipple
|
Close Nipple
|
Close Nipple
|
Close Nipple
|
Close Nipple
|
| Part Number |
ICN-2N
|
ICN-4N
|
ICN-6N
|
ICN-8N
|
ICN-12N
|
ICN-12N
|
| Dimensions | ||||||
| Dimension A |
19.1mm
|
28.4mm
|
28.4mm
|
38.1mm
|
38.1mm
|
38.1mm
|
| Dimension E |
4.8mm
|
7.1mm
|
9.6mm
|
11.9mm
|
15.7mm
|
15.7mm
|
| Pressure Rating for Brass Nipple |
344bar
5000psig
|
275bar
4000psig
|
268bar
3900psig
|
261bar
3800psig
|
248bar
3600psig
|
248bar
3600psig
|
| Pressure [Max] |
689bar
10000psig
|
551bar
8000psig
|
537bar
7800psig
|
530bar
7700psig
|
502bar
7300psig
|
502bar
7300psig
|
| Size |
44204mm
|
44200mm
|
44263mm
|
44198mm
|
44259mm
|
44259mm
|
| Specifications | ||||||
| End Type |
Male National Pipe Thread (MNPT)
|
Male National Pipe Thread (MNPT)
|
Male National Pipe Thread (MNPT)
|
Male National Pipe Thread (MNPT)
|
Male National Pipe Thread (MNPT)
|
Male National Pipe Thread (MNPT)
|
| Inch/Metric |
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
| Material |
316 Stainless Steel, Steel
|
316 Stainless Steel, Steel
|
316 Stainless Steel, Steel
|
316 Stainless Steel, Steel
|
316 Stainless Steel, Steel
|
316 Stainless Steel, Steel
|
| Description |
ICN 1/8 in. Male National Pipe Taper (MNPT) Pipe Size Close Nipple
|
ICN 1/4 in. Male National Pipe Taper (MNPT) Pipe Size Close Nipple
|
ICN 3/8 in. Male National Pipe Taper (MNPT) Pipe Size Close Nipple
|
ICN 1/2 in. Male National Pipe Taper (MNPT) Pipe Size Close Nipple
|
ICN 3/4 in. Male National Pipe Taper (MNPT) Pipe Size Close Nipple
|
ICN 3/4 in. Male National Pipe Taper (MNPT) Pipe Size Close Nipple
|
