12 Items in IA Adapters
Item #Item Name

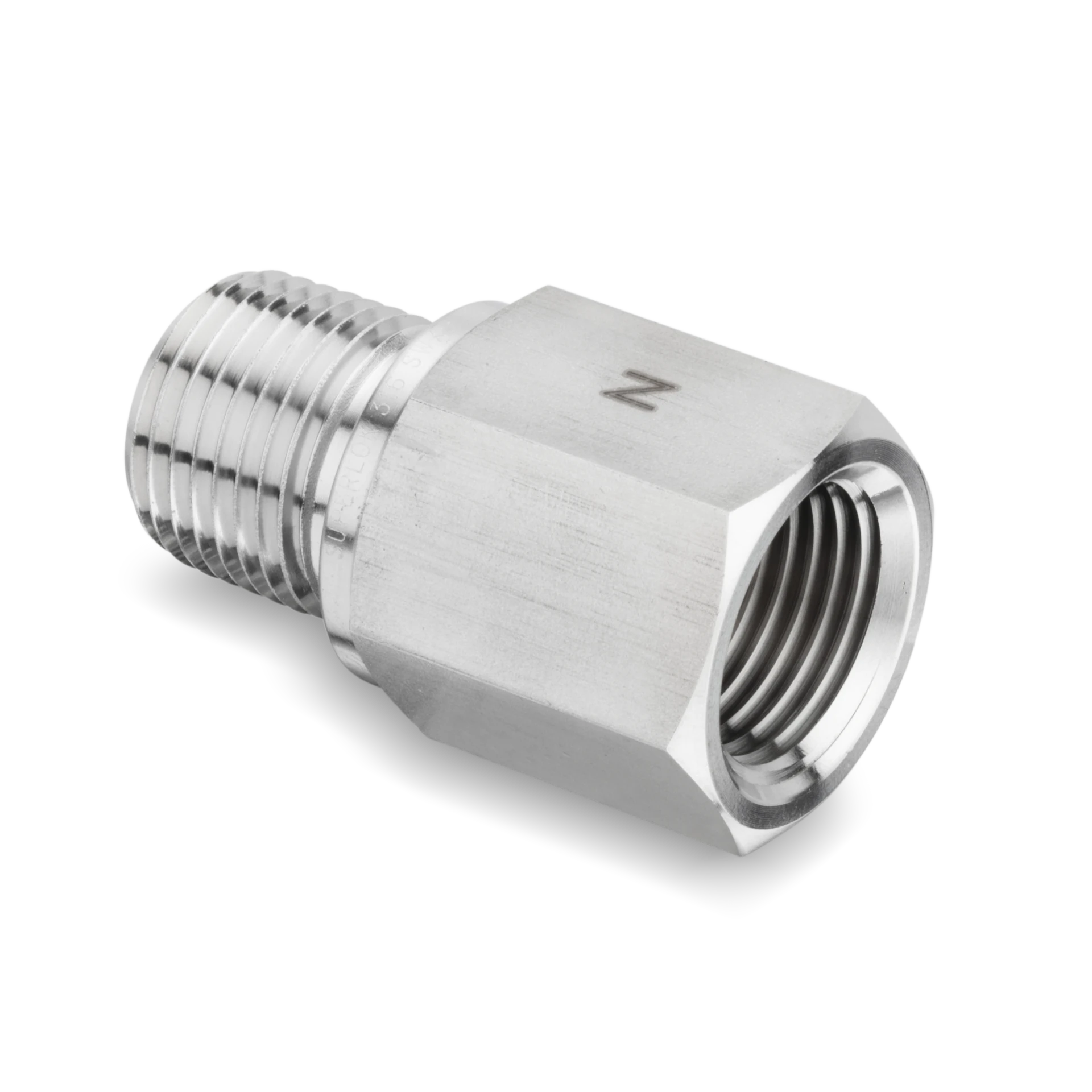

IA 1/8 in. Female National Pipe Taper (FNPT) Thread x 1/8 in. Male International Standardization of Organization (ISO) Thread Pipe Size Parallel Adapter
IA 1/8 in. Female National Pipe Taper (FNPT) Thread x 1/8 in. Male National Pipe Taper (MNPT) Thread Pipe Size Adapter
IA 1/4 in. Female National Pipe Taper (FNPT) Thread x 1/4 in. Male International Standardization of Organization (ISO) Thread Pipe Size Parallel Adapter
IA 1/4 in. Female National Pipe Taper (FNPT) Thread x 1/4 in. Male National Pipe Taper (MNPT) Thread Pipe Size Adapter
IA 3/8 in. Female National Pipe Taper (FNPT) Thread x 3/8 in. Male International Standardization of Organization (ISO) Thread Pipe Size Parallel Adapter
IA 3/8 in. Female National Pipe Taper (FNPT) Thread x 3/8 in. Male National Pipe Taper (MNPT) Thread Pipe Size Adapter
IA 1/2 in. Female National Pipe Taper (FNPT) Thread x 1/2 in. Male International Standardization of Organization (ISO) Thread Pipe Size Parallel Adapter
IA 1/2 in. Female National Pipe Taper (FNPT) Thread x 1/2 in. Male National Pipe Taper (MNPT) Thread Pipe Size Adapter
IA 3/4 in. Female National Pipe Taper (FNPT) Thread x 3/4 in. Male International Standardization of Organization (ISO) Thread Pipe Size Parallel Adapter
IA 3/4 in. Female National Pipe Taper (FNPT) Thread x 3/4 in. Male National Pipe Taper (MNPT) Thread Pipe Size Adapter
IA 1 in. Female National Pipe Taper (FNPT) Thread x 1 in. Male International Standardization of Organization (ISO) Thread Pipe Size Parallel Adapter
IA 1 in. Female National Pipe Taper (FNPT) Thread x 1 in. Male National Pipe Taper (MNPT) Thread Pipe Size Adapter
side-scroll to see full table

Part# IA-2G-2N IA-2N IA-4G-4N IA-4N IA-6G-6N IA-6N IA-8G-8N IA-8N IA-12G-12N IA-12N IA-16G-16N IA-16G-16N
Information
Type
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Part Number
IA-2G-2N
IA-2N
IA-4G-4N
IA-4N
IA-6G-6N
IA-6N
IA-8G-8N
IA-8N
IA-12G-12N
IA-12N
IA-16G-16N
IA-16G-16N
Dimensions
(ISO)/(BSP) Pipe Size
1/8mm
- mm
1/4mm
- mm
3/8mm
- mm
1/2mm
- mm
3/4mm
- mm
1mm
1mm
Dimension A
25.1mm
27.9mm
33.5mm
35.6mm
35.8mm
38.4mm
44.2mm
49.3mm
48.0mm
51.3mm
53.3mm
53.3mm
Dimension B
7.1mm
- mm
11.2mm
- mm
11.2mm
- mm
14.2mm
- mm
15.7mm
- mm
18.3mm
18.3mm
Dimension C
13.7mm
- mm
18.0mm
- mm
21.6mm
- mm
25.9mm
- mm
32.0mm
- mm
38.9mm
38.9mm
Dimension E
4.1mm
4.8mm
5.8mm
7.1mm
7.9mm
9.6mm
11.9mm
11.9mm
15.7mm
15.7mm
19.8mm
19.8mm
Dimension H
14.2mm
14.2mm
19.1mm
19.1mm
22.2mm
22.2mm
26.9mm
26.9mm
33.3mm
33.3mm
41.2mm
41.2mm
Pressure [Max]
6500bar
447psig
6500bar
447psig
6600bar
454psig
6600bar
454psig
5300bar
365psig
5300bar
365psig
4900bar
337psig
4900bar
337psig
4600bar
316psig
4600bar
316psig
4400bar
303psig
4400bar
303psig
Size
1/8in
1/8in
1/4in
1/4in
3/8in
3/8in
1/2in
1/2in
3/4in
3/4in
1in
1in
Specifications
Inch/Metric
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Inch
Material
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
316 Stainless Steel, Steel
Description
IA 1/8 in. Female National Pipe Taper (FNPT) Thread x 1/8 in. Male International Standardization of Organization (ISO) Thread Pipe Size Parallel Adapter
IA 1/8 in. Female National Pipe Taper (FNPT) Thread x 1/8 in. Male National Pipe Taper (MNPT) Thread Pipe Size Adapter
IA 1/4 in. Female National Pipe Taper (FNPT) Thread x 1/4 in. Male International Standardization of Organization (ISO) Thread Pipe Size Parallel Adapter
IA 1/4 in. Female National Pipe Taper (FNPT) Thread x 1/4 in. Male National Pipe Taper (MNPT) Thread Pipe Size Adapter
IA 3/8 in. Female National Pipe Taper (FNPT) Thread x 3/8 in. Male International Standardization of Organization (ISO) Thread Pipe Size Parallel Adapter
IA 3/8 in. Female National Pipe Taper (FNPT) Thread x 3/8 in. Male National Pipe Taper (MNPT) Thread Pipe Size Adapter
IA 1/2 in. Female National Pipe Taper (FNPT) Thread x 1/2 in. Male International Standardization of Organization (ISO) Thread Pipe Size Parallel Adapter
IA 1/2 in. Female National Pipe Taper (FNPT) Thread x 1/2 in. Male National Pipe Taper (MNPT) Thread Pipe Size Adapter
IA 3/4 in. Female National Pipe Taper (FNPT) Thread x 3/4 in. Male International Standardization of Organization (ISO) Thread Pipe Size Parallel Adapter
IA 3/4 in. Female National Pipe Taper (FNPT) Thread x 3/4 in. Male National Pipe Taper (MNPT) Thread Pipe Size Adapter
IA 1 in. Female National Pipe Taper (FNPT) Thread x 1 in. Male International Standardization of Organization (ISO) Thread Pipe Size Parallel Adapter
IA 1 in. Female National Pipe Taper (FNPT) Thread x 1 in. Male International Standardization of Organization (ISO) Thread Pipe Size Parallel Adapter
