Item# SUE-4

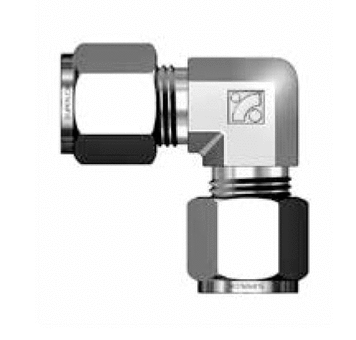

SUE 1/4 in. Tube Outside Diameter D 90 Degree Union Elbow
Specifications
Part Number
SUE-4
Brand
Superlok®
Material
316 Stainless Steel
Description
SUE 1/4 in. Tube Outside Diameter D 90 Degree Union Elbow
Inch/Metric
Inch
Dimensions
Angle
90 º
Dimension A
15.24 mm
Dimension B
15.24 mm
Dimension I
20.10 mm
Dimension L
27.40 mm
Dimension d [Min]
4.82 mm
Tube Outside Diameter D
1/4 in
mm
Width Across Flats H
9/16 in
mm
Width Across Flats h
1/2 in
mm
